Specifications
Brand Name :
Matsumoto
Model Number :
XK7124
Certification :
CE, ISO 9001
Place of Origin :
China
MOQ :
1
Price :
$10500-12500
Payment Terms :
T/T
Delivery Time :
15 working days
Packaging Details :
plywood case
Spindle Speed(r.p.m) :
10000rpm
X/Y/Z Axis Travel :
500/280/400mm
Distance from spindle surface to workbench :
120-520
Distance from the spindle center to the column :
350
Worktable T-shot :
3-16*60mm
Description

XK7124 XH7124 CNC Milling Machine CNC 3 Axis Milling Machine


Description:

The XK7124 is a versatile, 3-axis CNC vertical milling machine designed for precision machining of small to medium-sized parts. It features a rigid, steel-welded construction with a fixed bed design, providing excellent stability during cutting operations.


  • Features:

1. The body casting technology is advanced, the aging process, casting label

2. Vertical 3 axis mini fresadora CNC for sale, guide rail are of high precision and high precision.

3. Two type change tool available, manual, pneumatic.

4. Metal CNC milling machine with high precision and ATC can be used to step motor or servo motor, to provide customers with a good price.

5. Metal CNC milling machine with high precision and ATC Can be customized according to customer requirements of the corresponding products.


Specification XK7124
Table size 800*240(1000*260)mm
T-slot(N*W*D) 3/16/60mm
X/Y/Z travel 500/280/400mm
Distance from spindle surface to workbench 120-520
Distance from the spindle center to the column 350
Worktable T-shot 3-16*60mm
Rapid feed speed(X/Y/Z) 12/12/10 m/min
X/Y/Z axis motor servo motor
AC servo motor torque(X/Y/Z) 4/4/6 N.m
Main motor 3.7KW servo motor
Spindle speed 6000rpm
Spindle taper BT40-120
Positioning accuracy 0.01mm
Positioning accuracy 0.008mm
Machine weight 1550kg
Overall size 1800*1650*2150mm


Three Axis CNC Milling Machine Vertical Steel Welded Construction XK7124 XH7124

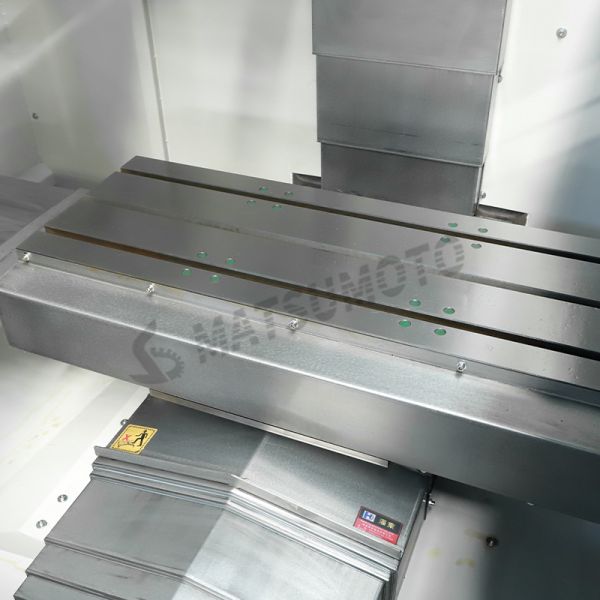

 Workbench
High-frequency quenching for better rigidity

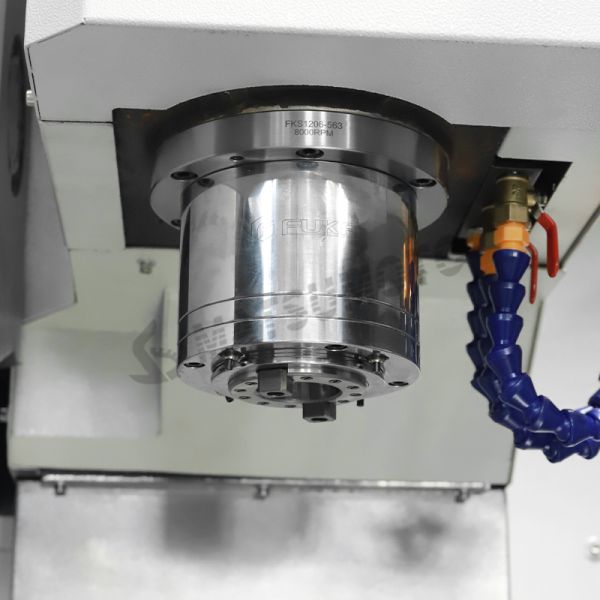

Spindle
Taiwanese brand high-quality spindle, VOLIS/OKADA/ROYAL/AIMACH, etc.
Standard configuration: 8000 rpm
Optional configuration: 10000/12000 rpm

Three Axis CNC Milling Machine Vertical Steel Welded Construction XK7124 XH7124

Three Axis CNC Milling Machine Vertical Steel Welded Construction XK7124 XH7124

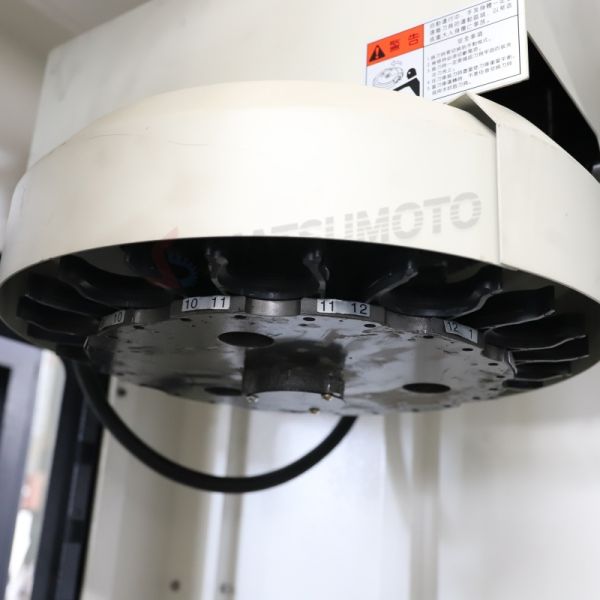

 Automatic tool changer
Standard configuration: 16-tool hat-type tool magazine
Optional configuration: 24-tool arm-type tool magazine
Control system
Standard configuration: GSK
Optional configuration: Fanuc/ Syntec/ Mitsubisin

Three Axis CNC Milling Machine Vertical Steel Welded Construction XK7124 XH7124
