Specifications
Brand Name :
Matsumoto
Model Number :
XH7126
Certification :
CE, ISO 9001
Place of Origin :
China
MOQ :
1
Price :
$11500-13000
Payment Terms :
T/T
Delivery Time :
15 working days
Packaging Details :
plywood case
Model NO. :
XH7126
Spindle Taper :
BT40
Range of Spindle Speed(r.p.m) :
8000rpm
X/Y/Z Axis Travel :
550/300/450mm
Table Size :
800*260mm
Description

XH7126 CNC Milling Machine Metal 3 Axis CNC Milling Machine


Description:

1. High precision linear guide rail and screw.

2. Taiwan-made spindle unit, 6000/8000rpm speed available.

3. Taiwan OKADA funnel type 10t/12t ATC can be choosen.

4. Reliable control system: Fanuc, Mitsubishi, Gsk.

5. Automatic central lubrication system.


Specification XH7126
Table size 800*260mm
T-slot(N*W*D) 3/14/78mm
X/Y/Z travel 550/300/450mm
Disntance from spindle surface to worktable 80-530mm
Distance from spindle center to the column 350mm
Rapid feed speed(X/Y/Z) 20/20/18m/min
AC servo motor torque(X/Y/Z) 6/6/10N.m
Main motor 4KW Servo motor
Spindle speed 8000rpm
Spindle taper BT40-120
Positioning accuracy 0.01mm
Repositioning accuracy 0.008mm
Linear guide rail XY30 Y35ball
Machine weight 2000kg
Overall size 2200*1900*2200mm(Remove Z-axis motor)


XH7126 CNC Metal Milling Machine 3 Axis 800x260mm With 4KW Servo Motor

 Workbench
High-frequency quenching for better rigidity

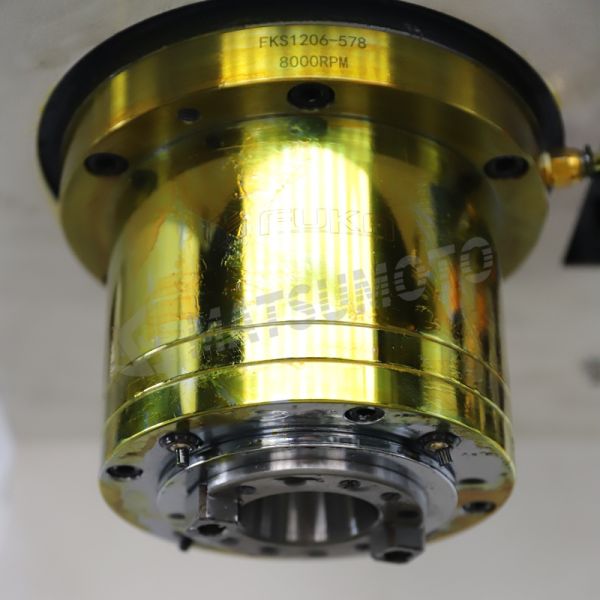

Spindle
Taiwanese brand high-quality spindle, VOLIS/OKADA/ROYAL/AIMACH, etc.
Standard configuration: 8000 rpm
Optional configuration: 10000/12000 rpm

XH7126 CNC Metal Milling Machine 3 Axis 800x260mm With 4KW Servo Motor

XH7126 CNC Metal Milling Machine 3 Axis 800x260mm With 4KW Servo Motor

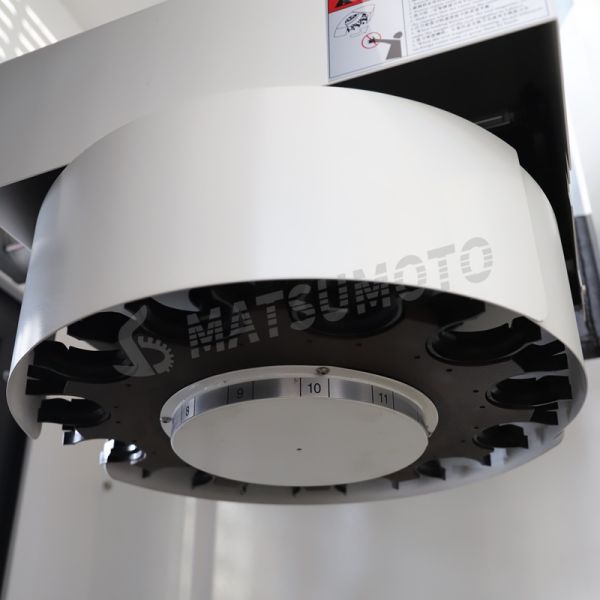

 Automatic tool changer
Standard configuration: 16-tool hat-type tool magazine
Optional configuration: 24-tool arm-type tool magazine

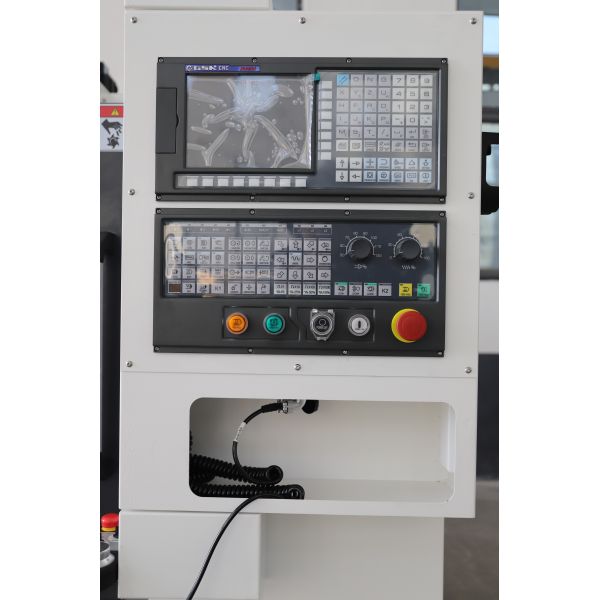

Control system
Standard configuration: GSK
Optional configuration: Fanuc/ Syntec/ Mitsubisin
