Specifications
Brand Name :
Matsumoto
Model Number :
XH7132
Certification :
CE, ISO 9001, BV
Place of Origin :
china
MOQ :
1
Price :
10500USD-11500USD
Payment Terms :
T/T
Delivery Time :
15WORKING DAYS
Packaging Details :
plywood case
Model NO. :
XH7132
Spindle Taper :
BT40
X/Y/Z Axis Travel :
630/400/480mm
Package Size :
180.00cm * 165.00cm * 215.00cm
Package Gross Weight :
1500KG
Description

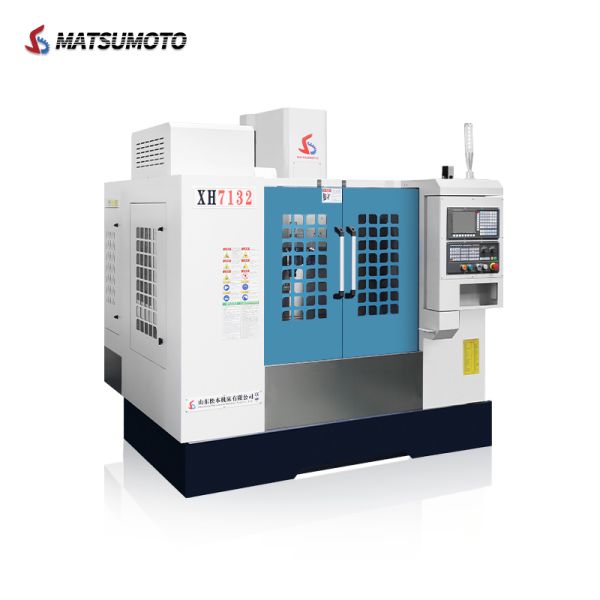

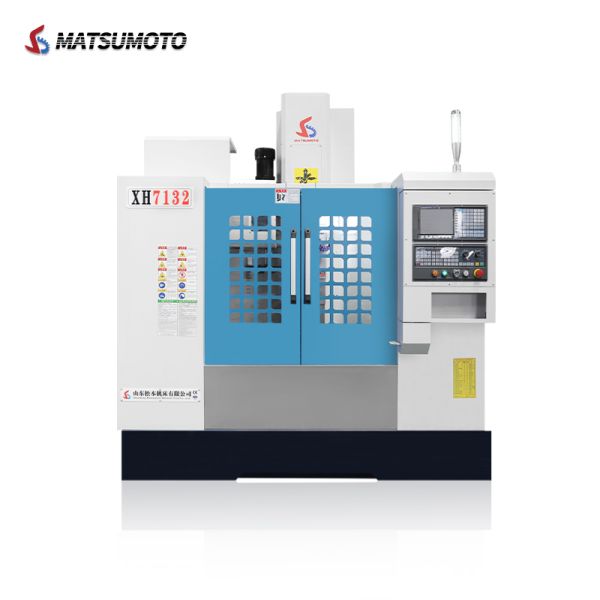

XH7132 Vertical Milling Machine CNC Milling Machine for Metal
Description:

Three-axis transmission adopts Taiwan ground double nut ball screw, compact structure, smooth movement, and high accuracy. The base adopts large water tray structure casting, which has good waterproof performance.

  1. High Precision Hard guideway and screw.
  2. Taiwan-made spindle unit, 6000, 8000rpm speed available.
  3. Taiwan OKADA Funnel Type 10T/12T ATC can be choosen.
  4. Reliable Control System: Fanuc, Mitsubishi, GSK.
  5. Automatic Central Lubrication System.
Technical Specifications:

PROJECT

UNIT

XH7132

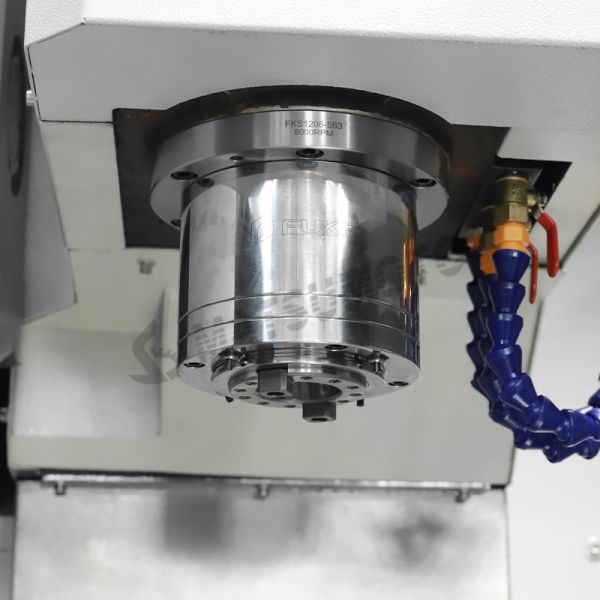

Spindle taper/Spindle unit spindle diameter

/

BT40/120

Spindle speed

rpm

8000

Spindle servo motor

kw

5.5

X/Y/Z axis feed motor

N.M

X/Y:6;Z:15

X-axis travel

mm

600

Y-axis travel

mm

400

Z-axis travel

mm

500

Spindle nose to table

mm

120-620

Spindle center to column surface distance

mm

440

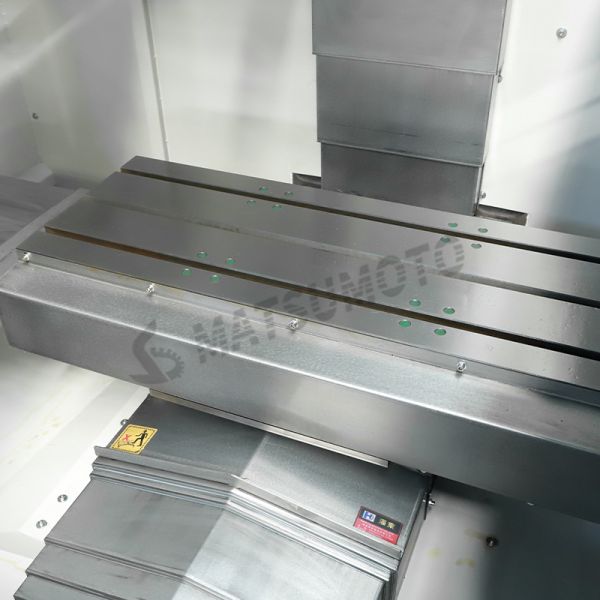

Table size(L*D)

mm

1000*320

T-slot(Width*Number*Pitch)

mm

12*3*105

Max. Table load

kg

300

Fast traverse(X/Y/Z)

m/min

X/Y/Z 24

Screw diameter/pitch(X/Y/Z)

mm

32/12

Rail form

mm

Linear guide

Positioning accuracy

mm

0.008

Repeat positioning accuracy

mm

0.005/300

System

/

Optional

Tool library

/

(HAT)BT40-T12/16

(DISC)BT40-T16

AIR FORCE SOURCE (PRESSURE/CAPACITY)

MPA

0.6

Weight

kg

2400
Application:

Three-axis transmission adopts Taiwan ground double nut ball screw, compact structure, smooth movement, and high accuracy. The base adopts large water tray structure casting, which has good waterproof performance.

Advantages:

CNC milling machines excel in precision, delivering tight tolerances (often within ±0.005mm) that manual machining cannot match, ideal for high-quality components. They boost efficiency by running 24/7 with minimal human intervention, cutting production cycles significantly. Their repeatability ensures identical parts in batch production, eliminating human errors. Complex geometries—such as 3D contours and intricate cavities—are easily achieved, a feat beyond conventional tools. Additionally, flexibility allows quick program adjustments for different parts, reducing setup time and adapting seamlessly to diverse manufacturing needs.
