Specifications
Place of Origin :
China
Brand Name :
JSSCD
Model Number :
JSSCD-120NC/X
MOQ :
1
Packaging Details :
depending on the machine model
Delivery Time :
7-60 work days
Certification :
HB24Q00435R0S HB24E0025 HB24S00242R0S8R0S
Dimension :
2044*2273*1809
Payment Terms :
FOB
Color :
White，Black
Use :
Material cutting
Saw type :
Diagonal cut
Cuttable material :
Carbon steel，Stainless steel，Alloy steel，Aluminum，Aluminum alloy，Copper，Copper alloy，Titanium alloy，PA
Condition :
New
Mechanical control :
Intelligent control，Automation
Feeding precision :
±0.1mm
Name :
JSSCD- 120NC/X CNC High Speed Circular Saw Machine
Cutting precision :
±0.05mm
Application :
Automobile manufacturing，Aerospace，Rail transit，Mechanical equipment，Hardware tools，Ship building，Building material，Pipeline engineering，Mold manufacturing，Electronics manufacturing
Cutting debris removal device :
Chain plate chip conveyer
Supply Ability :
500 Sets Per Year
Description

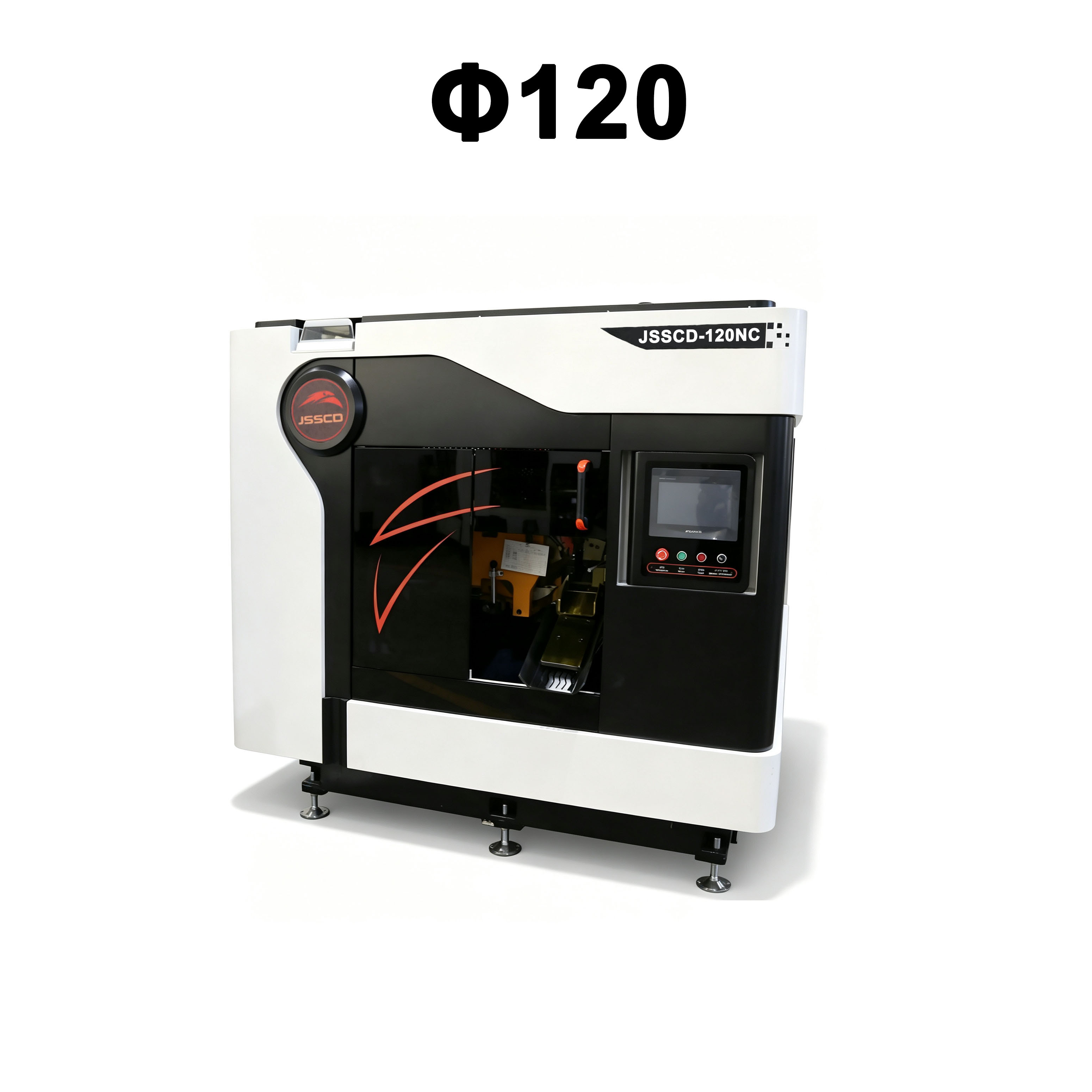

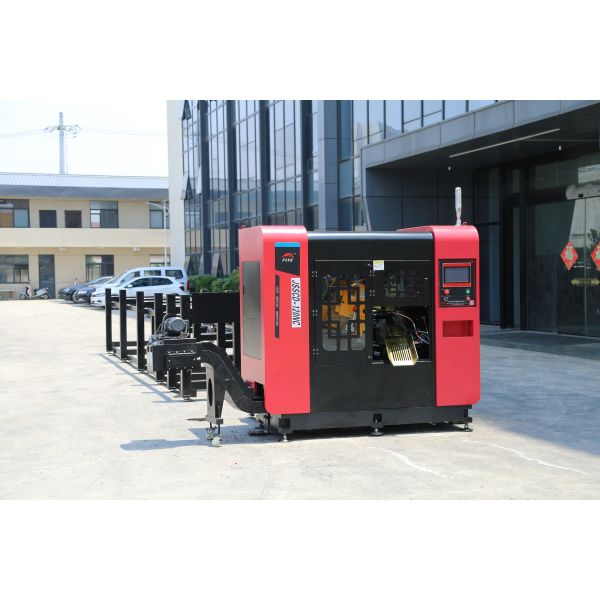

JSSCD-120NC/X CNC High Speed Circular Saw Machine (Angled-Push)
Professional Metal Cutting Solution
Designed for the metalworking industry where efficiency and precision are critical, this CNC high-speed circular saw machine excels in angled cutting operations. Featuring innovative 15° top-down cutting technology, it combines high-speed operation, intelligent automation, exceptional precision, and eco-friendly performance to deliver superior results for modern production lines.
Key Features

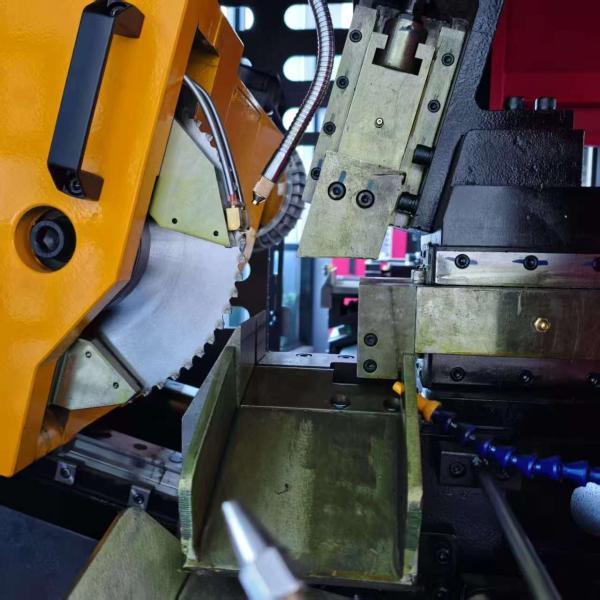

  • Advanced 15° top-down cutting technology minimizes cutting stress and produces smooth, flat surfaces
  • Processes various metal profiles including round pipes, angle steel, and square tubes without frequent clamp changes
  • High-strength clamping mechanism ensures workpiece stability during high-speed cutting

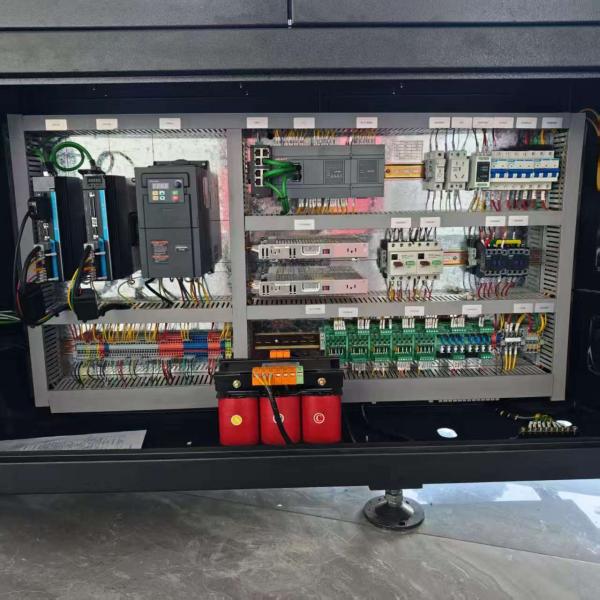

  • Precision CNC system with intuitive HMI for easy programming and parameter setting
  • Optional automatic feeding system for continuous batch cutting operations
  • Reduces material waste and optimizes production efficiency
Technical Specifications
Model Unit JSSCD-120NC/X
Mainframe dimensions mm 2044*2273*1809
Bar & round pipe mm 30-120
Angle bar & square bar mm 30-100
Saw blade size mm φ380*2.25*2.6*φ40
Spindle motor power KW 15(6P)
Spindle speed rpm 30-120
Feeding servo motor power KW 1.5
Hydraulic drive motor power KW 2.25(4p)
Rated pressure of the hydraulic system mpa 4-5
Hydraulic oil capacity L 105
Additional Features
  • Cut off feed mode: AC servo motor & ball screw / 15° cutting-in
  • Main clamping method: Hydraulic type / one set each for horizontal and 15°
  • Saw blade debris removal device: Passive/active circular wire brush (optional)
  • Gear backlash compensation device: Hollow external rotating magnetic powder brake

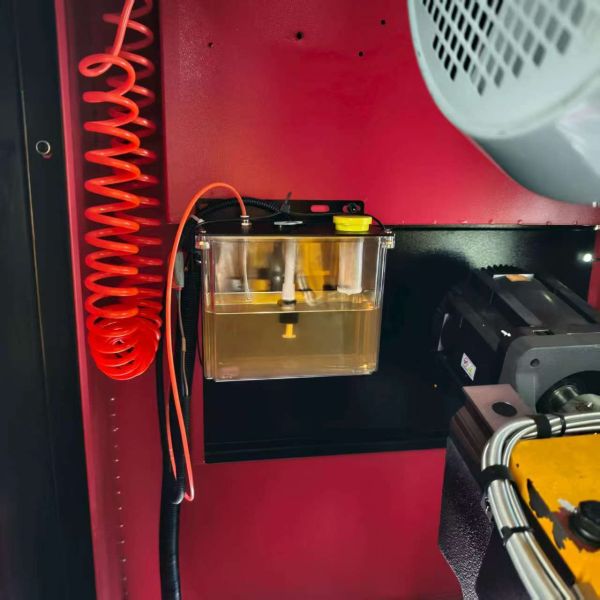

  • Self-lubrication oil system: Timed and quantitative forced oil supply
  • Micro-lubrication system for cutting: Quasi-dry intermittent oil supply
120NC Angled Push CNC Circular Saw Machine Red Black Industrial 120NC Angled Push CNC Circular Saw Machine Red Black Industrial 120NC Angled Push CNC Circular Saw Machine Red Black Industrial 120NC Angled Push CNC Circular Saw Machine Red Black Industrial
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
We are a professional manufacturer of saw blade grinders with a 30,000 square meter factory and dedicated technical team.
Q2: Where is your factory located?
Our factory is located in Nantong City, Jiangsu Province, China, approximately 1.5 hours from Shanghai Hongqiao station.
Q3: What is your factory acceptance test method?
You can send sample material for test cutting. We'll provide detailed cutting data and a video of the operation.
Q4: What is your method of transaction?
We typically use FOB (Free On Board) transactions.
Q5: What is your delivery time?
Delivery typically takes 7-60 work days after order confirmation, depending on items and quantity.
Q6: What are your payment terms?
Standard terms are 30% deposit, 70% balance before shipment. Other methods available upon request.
Q7: Does the band saw blade have any international certifications?
Yes, we have obtained CE and ISO international certifications.
