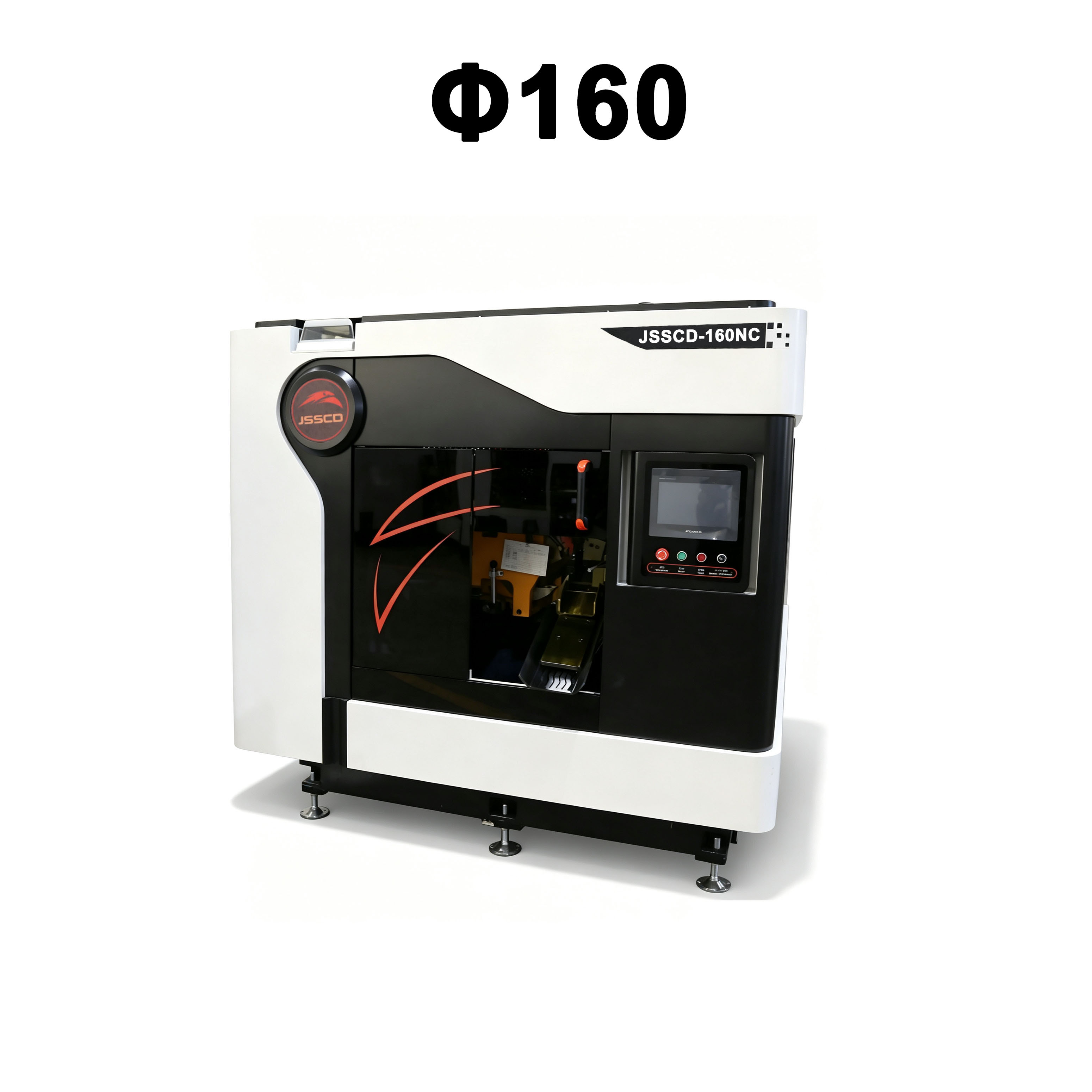

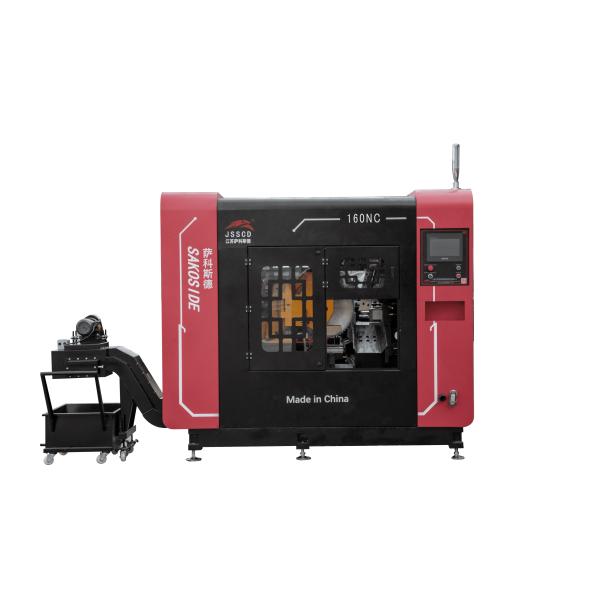

160NC Fully Automatic High Speed Multifunctional Circular Saw Circular
160NC Fully Automatic High Speed Multifunctional Circular Saw Circular
160NC Fully Automatic High Speed Multifunctional Circular Saw Circular
160NC Fully Automatic High Speed Multifunctional Circular Saw Circular
160NC Fully Automatic High Speed Multifunctional Circular Saw Circular
160NC Fully Automatic High Speed Multifunctional Circular Saw Circular
160NC Fully Automatic High Speed Multifunctional Circular Saw Circular
160NC Fully Automatic High Speed Multifunctional Circular Saw Circular
160NC Fully Automatic High Speed Multifunctional Circular Saw Circular
160NC Fully Automatic High Speed Multifunctional Circular Saw Circular
160NC Fully Automatic High Speed Multifunctional Circular Saw Circular
160NC Fully Automatic High Speed Multifunctional Circular Saw Circular
Specifications
Place of Origin :
China
Brand Name :
JSSCD
Model Number :
JSSCD-160NC/P
MOQ :
1
Packaging Details :
depending on the machine model
Delivery Time :
7-60 work days
Certification :
HB24Q00435R0S HB24E0025 HB24S00242R0S8R0S
Payment Terms :
FOB
Dimension :
2376*2271*1970
Condition :
New
Color :
White，Black
Use :
Material cutting
Saw type :
Straight cut
Cuttable material :
Carbon steel，Stainless steel，Alloy steel，Aluminum，Aluminum alloy，Copper，Copper alloy，Titanium alloy，PA
Safety protection devices :
Emergency braking，Anti-splash shield
Mechanical control :
Intelligent control，Automation
Feeding precision :
±0.1mm
Name :
JSSCD-160NC/P CNC High Speed Circular Saw Machine(Horizontal-Push)
Cutting precision :
±0.05mm
Application :
Automobile manufacturing，Aerospace，Rail transit，Mechanical equipment，Hardware tools，Ship building，Building material，Pipeline engineering，Mold manufacturing，Electronics manufacturing
FAT :
Sample trial cutting verification
Cutting debris removal device :
Chain plate chip conveyer
Hydraulic oil :
Reusable
Supply Ability :
500 Sets Per Year
Description
JSSCD-160NC/P CNC High Speed Circular Saw Machine (Horizontal-Push)
Achieving demanding standards in modern metal fabrication requires cutting solutions that combine exceptional speed with unwavering precision. This advanced CNC horizontal circular saw meets this critical need, delivering rapid cutting cycles, automated accuracy, and efficient energy usage for productive metal processing operations.
Core Capabilities & Intelligent Design
  • Innovative horizontal insertion cutting system with AC Servo Motor and precision ball-screw drive
  • Robust hydraulic clamping system (horizontal/vertical hold-down) for diverse material shapes
  • High-strength construction ensures material stability at peak operating speeds
  • Consistent cut quality and high repeatability for intensive continuous production
Sustained Precision & Dependable Operation
  • Integrated backlash compensation mechanism maintains precision during prolonged use
  • Dual lubrication system (self-lubricating and micro-lubrication) minimizes wear
  • Efficient chip conveyor with magnetic particle brake enhances safety and maintenance
  • Carbide-tipped parallel guides ensure orderly workpiece discharge
Boosting Throughput with Automation
Optional high-capacity automated material handling system enables continuous, unattended feeding for maximum output. This integration supports uninterrupted batch processing, maximizing machine utilization and production line efficiency.
Technical Specifications
Model Unit JSSCD-160NC/P
Mainframe dimensions mm 2376*2271*1970
Bar & round pipe mm 40-160
Angle bar & square bar mm 40-125
Saw blade size mm φ485*2.25*2.7*φ50
Spindle motor power KW 18.5/6P
Spindle speed rpm 30-120
Feed servo motor power KW 3
Feeding servo motor power KW 3
Material removal length at the front end mm ≥10
Single feeding length (repeatable) mm 10-750
Hydraulic drive motor power KW 3.75(4p)
Rated pressure of the hydraulic system mpa 4-5
Hydraulic oil capacity L 168
Smart Control & Simplified Operation
The sophisticated CNC control system precisely governs cutting parameters for consistent quality. The intuitive operator interface (HMI) allows for straightforward setup and operation, with program management capabilities that reduce operator workload and minimize errors.
160NC Fully Automatic High Speed Multifunctional Circular Saw Circular 160NC Fully Automatic High Speed Multifunctional Circular Saw Circular 160NC Fully Automatic High Speed Multifunctional Circular Saw Circular 160NC Fully Automatic High Speed Multifunctional Circular Saw Circular
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a professional manufacturer of saw blade grinders with a 30,000 square meter factory and dedicated technical team.
Where is your factory located?
Our factory is located in Nantong City, Jiangsu Province, China, approximately 1.5 hours from Shanghai Hongqiao station.
What is your factory acceptance test method?
We perform test cuts with sample materials you provide and share detailed cutting data along with video documentation.
What is your method of transaction?
We typically use FOB (Free On Board) transactions, with 30% deposit and 70% balance before shipment.
Does the band saw blade have any international certifications?
Yes, we have obtained CE and ISO international certifications.
