150NC Automatic High Speed Circular Saw Metal Cutting Machinery For Aluminum Alloy
150NC Automatic High Speed Circular Saw Metal Cutting Machinery For Aluminum Alloy
150NC Automatic High Speed Circular Saw Metal Cutting Machinery For Aluminum Alloy
150NC Automatic High Speed Circular Saw Metal Cutting Machinery For Aluminum Alloy
150NC Automatic High Speed Circular Saw Metal Cutting Machinery For Aluminum Alloy
150NC Automatic High Speed Circular Saw Metal Cutting Machinery For Aluminum Alloy
150NC Automatic High Speed Circular Saw Metal Cutting Machinery For Aluminum Alloy
150NC Automatic High Speed Circular Saw Metal Cutting Machinery For Aluminum Alloy
Specifications
Feed Accuracy :
±0.05 mm
TCT Circular Saw Blade :
φ460 × 2.25 x 2.7 x 50 mm
Certification :
HB24Q00435R0S HB24E00258R0S HB24S00242R0S
Delivery Time :
7-60 work days
Blade Speed :
30 – 120 rpm
Brand Name :
JSSCD
Feed Drive :
3 kW AC servo motor + ball screw
Model Number :
JSSCD-150
Payment Terms :
FOB
Cutting Length Tolerance :
≤ ±0.10 mm
Packaging Details :
depending on the machine model
Supply Ability :
500 Sets Per Year
Model :
150NC
Place of Origin :
China
Cutting Range – Square Bar :
40 – 115 mm
Cutting Range – Round Bar :
φ40 – φ150 mm
MOQ :
1
Description
Automatic Circular Saw Production Line – High-Volume Cutting Solution
The JSSCD-150NC Automatic Circular Saw Production Line is a comprehensive high-volume cutting solution designed for large diameter metal materials. With a cutting range of φ40 mm to φ150 mm for round bars and 40 mm to 115 mm for square bars, this production line is ideally suited for heavy industries including automotive manufacturing, wind power, construction machinery, steel service centers, and petrochemical equipment production.

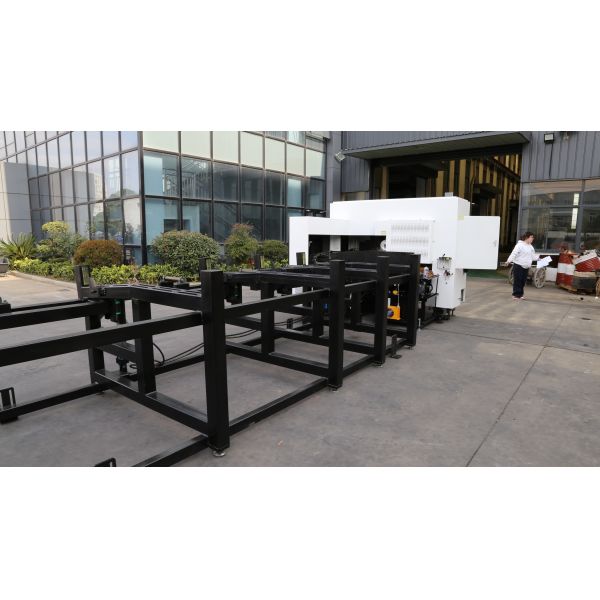

This fully automated production line integrates an automatic loading rack, servo-driven feeding system, high-speed intelligent circular saw, conveying roller table, and automatic sorting mechanism. The system supports single-feed lengths up to 750 mm, eliminating the need for multiple feeding cycles and significantly improving production efficiency for large component manufacturing.
Key Features
  • Large Diameter Cutting Capacity - Handles round bars from φ40 mm to φ150 mm and square bars from 40 mm to 115 mm
  • Single-Stroke Long Feed - Achieves single feed length up to 750 mm, eliminating multiple feeding cycles
  • High Precision Cutting - Delivers cutting length tolerance of ≤ ±0.10 mm and squareness of ≤ ±0.15 mm / 100 mm
  • MQL Mist Cooling System - Minimum quantity lubrication reduces cutting heat, extends blade life, and keeps components clean
  • Advanced PLC Control - Touch screen interface with remote monitoring capability, real-time production data, and fault diagnostics
Technical Specifications
Material Strength ≤ 1800 N/mm²
Main Motor Power 18.5 kW (servo spindle)
Hydraulic System Pressure 4-5 MPa
Hydraulic Tank Capacity 168 L
Cooling System MQL mist cooling
Chip Removal Automatic chain plate conveyor
Raw Material Rack Capacity 4000 - 7000 mm
Power Supply 380V / 50Hz / 3Phase
Product Images
150NC Automatic High Speed Circular Saw Metal Cutting Machinery For Aluminum Alloy 150NC Automatic High Speed Circular Saw Metal Cutting Machinery For Aluminum Alloy 150NC Automatic High Speed Circular Saw Metal Cutting Machinery For Aluminum Alloy
Applications
Automotive Parts Manufacturing
Cuts axle shafts, transmission components, and chassis hardware from alloy steel with ±0.10 mm accuracy.
Wind Power Industry
Processes bearing rings (GCr15) and gearbox shafts (40Cr, 42CrMo) for wind turbine components.
Construction Machinery
Cuts track pins, bucket pins, and drive shafts for excavators, loaders, and bulldozers.
Steel Service Centers
Custom cutting of large diameter round bars and square materials for customer orders.
Frequently Asked Questions
What is the maximum cutting diameter?
The JSSCD-150C cuts round bars up to φ150 mm and square bars up to 115 mm.
What is the single feed length?
Single feed length is up to 750 mm, eliminating multiple feeding cycles for long components.
What materials can be cut?
Bearing steel (GCr15), alloy steel (40Cr, 42CrMo, 20CrMnTi), carbon steel, and stainless steel.
What is the cutting accuracy?
Cutting length tolerance ≤ ±0.10 mm with feed accuracy of ±0.05 mm.
Is the machine fully automatic?
Yes, the system integrates automatic loading, feeding, cutting, conveying, and sorting.
