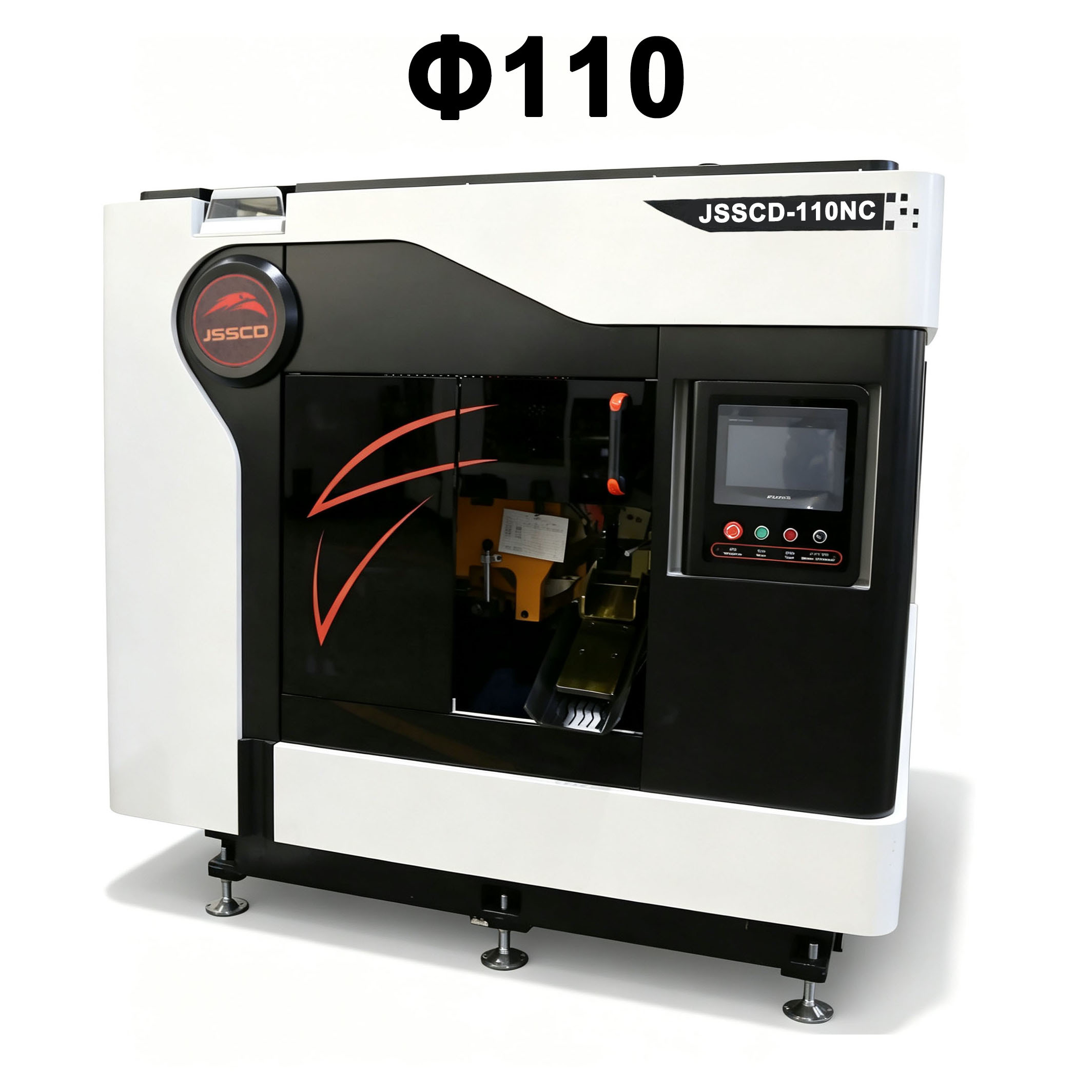

110NC High Efficiency Heavy Duty Metal Cutting Circular Sawing Machine
110NC High Efficiency Heavy Duty Metal Cutting Circular Sawing Machine
110NC High Efficiency Heavy Duty Metal Cutting Circular Sawing Machine
110NC High Efficiency Heavy Duty Metal Cutting Circular Sawing Machine
Specifications
Payment Terms :
FOB
Condition :
New
Cuttable material :
Carbon steel，Stainless steel，Alloy steel，Aluminum，Aluminum alloy，Copper，Copper alloy，Titanium alloy，PA
Cutting precision :
±0.05mm
Application :
Automobile manufacturing，Aerospace，Rail transit，Mechanical equipment，Hardware tools，Ship building，Building material，Pipeline engineering，Mold manufacturing，Electronics manufacturing
Cutting debris removal device :
Chain plate chip conveyer
Dimension :
2230x1800x1890
Place of Origin :
China
Brand Name :
JSSCD
Model Number :
JSSCD-100NC/P
MOQ :
1
Packaging Details :
depending on the machine model
Delivery Time :
7-60 work days
Certification :
HB24Q00435R0S HB24E0025 HB24S00242R0S8R0S
Use :
Material cutting
Saw type :
Straight cut
FAT :
Sample trial cutting verification
Name :
JSSCD-100NC/P CNC High Speed Circular Saw Machine(Horizontal-Push)
Feeding precision :
±0.1mm
Mechanical control :
Intelligent control，Automation
Safety protection devices :
Emergency braking，Anti-splash shield
Supply Ability :
500 Sets Per Year
Description
JSSCD-100NC/P CNC High Speed Circular Saw Machine (Horizontal-Push)

Intensive horizontal metal cutting operations face the critical challenge of achieving both substantial output and uncompromising dimensional precision. This CNC high-speed circular saw delivers a strategic solution, combining rapid cutting capability, sophisticated control, exceptional accuracy, and sustainable operation. Designed for robust performance and long-term consistency, it stands as a cornerstone technology for contemporary metal fabrication.

Engineering Excellence for Sustained Accuracy

The machine's core strength is its consistent precision throughout extended production cycles. This reliability stems from several key features:

  • Advanced Horizontal Feed Cutting: Utilizing an AC servo motor and ball screw transmission, this system enables smooth, operator-controlled cutting motions.
  • High-Efficiency Material Fixation: A hydraulic multi-axis clamping system secures workpieces firmly, drastically reducing changeover time when adjusting for different material sizes or shapes.
  • Long-Term Precision Assurance: Dimensional stability is ensured by backlash minimization in the servo/ball screw drive and a powerful hydraulic system that maintains uniform clamping and feed pressure.
Boosting Productivity Through Automation & Control

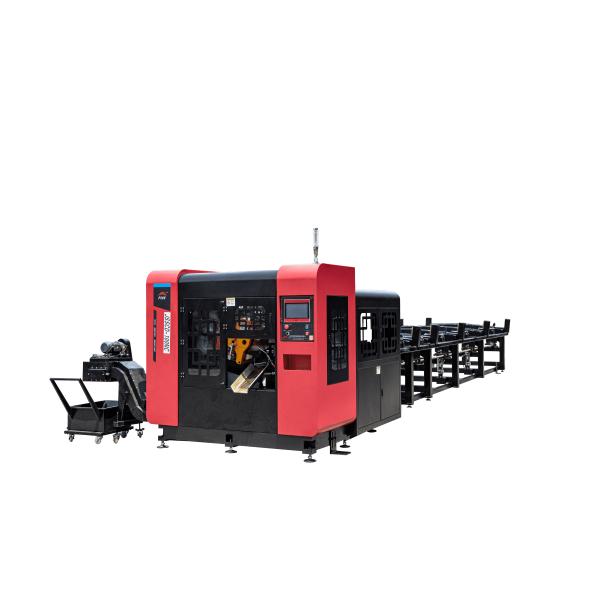

For facilities prioritizing elevated throughput, an optional HIGH-CAPACITY AUTOMATED MATERIAL HANDLING SYSTEM integrates seamlessly. This system provides continuous, automated feeding, synchronizing perfectly with the saw's horizontal action, enabling extended, unattended batch processing.

Technical Specifications
Model Unit JSSCD-100NC/P
Mainframe dimensions mm 2230*1800*1890
Bar & round pipe mm 20-100
Angle bar & square bar mm 20-85
Saw blade size mm φ360*2.6*φ40
Pin holes and hole diameters mm 4*φ11*90 φ40
Spindle motor power KW 11(4P)
Spindle speed rpm 20-140
Feed servo motor power KW 2
Material removal length at the front end mm 10-99
Single feeding length(repeatable) mm 10-800
Hydraulic drive motor power KW 2.25(4p)
Rated pressure of the hydraulic system mpa 5.5
Hydraulic oil capacity L 100
Product Images
110NC High Efficiency Heavy Duty Metal Cutting Circular Sawing Machine 110NC High Efficiency Heavy Duty Metal Cutting Circular Sawing Machine 110NC High Efficiency Heavy Duty Metal Cutting Circular Sawing Machine 110NC High Efficiency Heavy Duty Metal Cutting Circular Sawing Machine
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
A: We are a professional manufacturer of saw blade grinders with a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.
Q2: Where is your factory located?
A: Our factory is located in Nantong City, Jiangsu Province, China, about 1.5 hours from Shanghai Hongqiao station.
Q3: What is your factory acceptance test method?
A: You can send us sample material to be cut, and we will perform a test cut using our machine. We will provide detailed cutting data and a video of the machine cutting operation for your confirmation.
Q4: What is your method of transaction?
A: We adopt the FOB (Free ON Board) transaction.
Q5: How about your delivery time?
A: Generally, it takes 7-60 work days after receiving your order, depending on the items and quantity.
Q6: How about the payment term?
A: T/T 30% deposit, 70% of balance paid before shipment. (Other payment methods available - contact our sales team)
Q7: Does the band saw blade have any international certifications?
A: Yes, we have obtained CE and ISO international certifications.
