80NC Alloy Steel Circular Saw Machine High Speed Angle Push
80NC Alloy Steel Circular Saw Machine High Speed Angle Push
80NC Alloy Steel Circular Saw Machine High Speed Angle Push
80NC Alloy Steel Circular Saw Machine High Speed Angle Push
80NC Alloy Steel Circular Saw Machine High Speed Angle Push
80NC Alloy Steel Circular Saw Machine High Speed Angle Push
80NC Alloy Steel Circular Saw Machine High Speed Angle Push
80NC Alloy Steel Circular Saw Machine High Speed Angle Push
80NC Alloy Steel Circular Saw Machine High Speed Angle Push
80NC Alloy Steel Circular Saw Machine High Speed Angle Push
80NC Alloy Steel Circular Saw Machine High Speed Angle Push
80NC Alloy Steel Circular Saw Machine High Speed Angle Push
Specifications
Payment Terms :
FOB
Condition :
New
Use :
Material cutting
Saw type :
Diagonal cut
Mechanical control :
Intelligent control，Automation
Cutting debris removal device :
Chain plate chip conveyer
Application :
Automobile manufacturing，Aerospace，Rail transit，Mechanical equipment，，Ship building，Building material，Pipeline engineering，Mold manufacturing，Electronics manufacturing
Place of Origin :
China
Brand Name :
JSSCD
Model Number :
JSSCD-80NC/X
MOQ :
1
Packaging Details :
depending on the machine model
Delivery Time :
7-60 work days
Certification :
HB24Q00435R0S HB24E0025 HB24S00242R0S8R0S
Dimension :
1998*2273*1808
Feeding precision :
±0.05mm
FAT :
Sample trial cutting verification
Feeding speed :
5-20 m/min
Supply Ability :
500 Sets Per Year
Cuttable material :
Carbon steel，Stainless steel，Alloy steel，Aluminum，，Copper，Copper alloy，Titanium alloy，PA
Safety protection devices :
Emergency braking，Anti-splash shield
Name :
JSSCD- 80NC/X CNC High Speed Circular Saw Machine
Hydraulic oil :
Reusable
Description

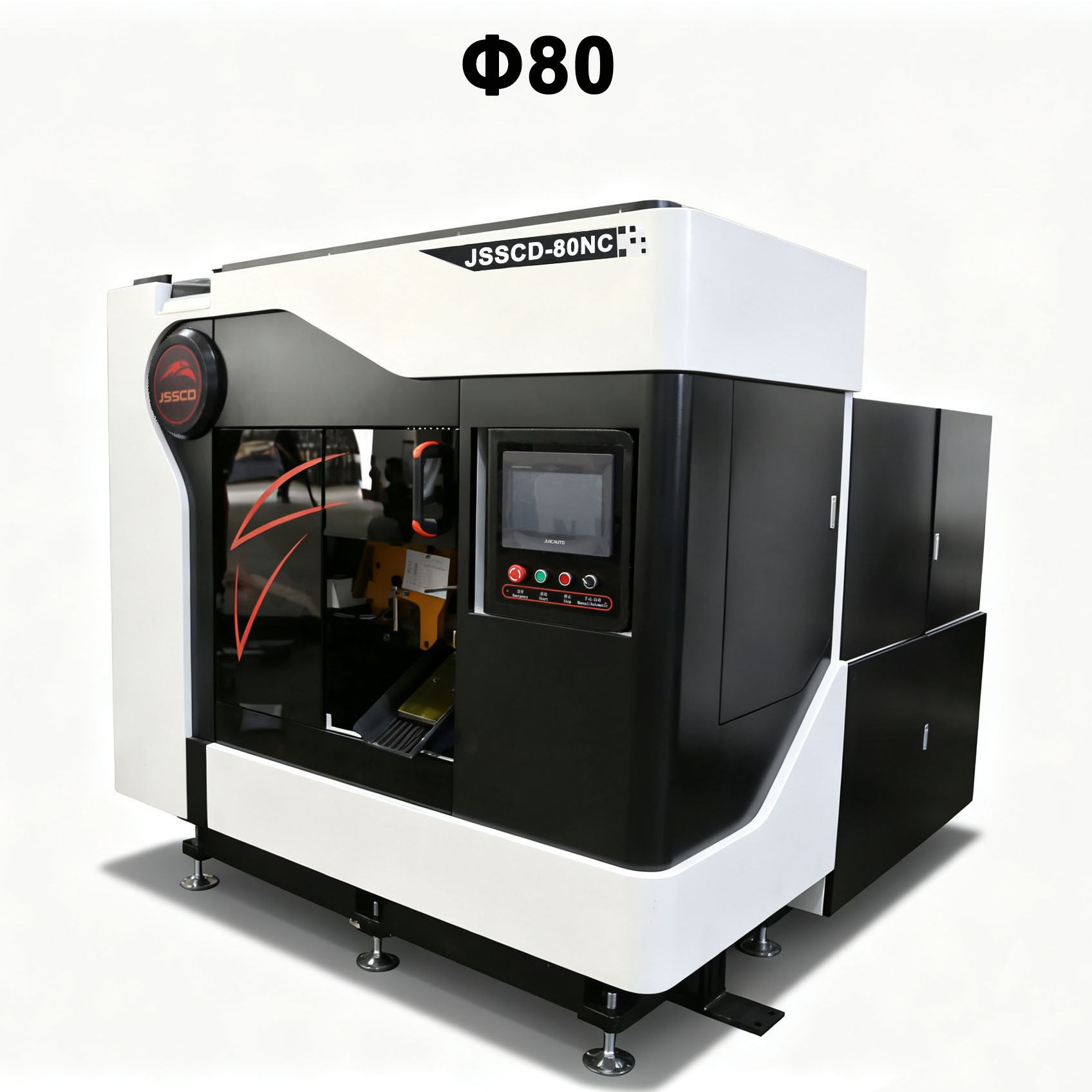

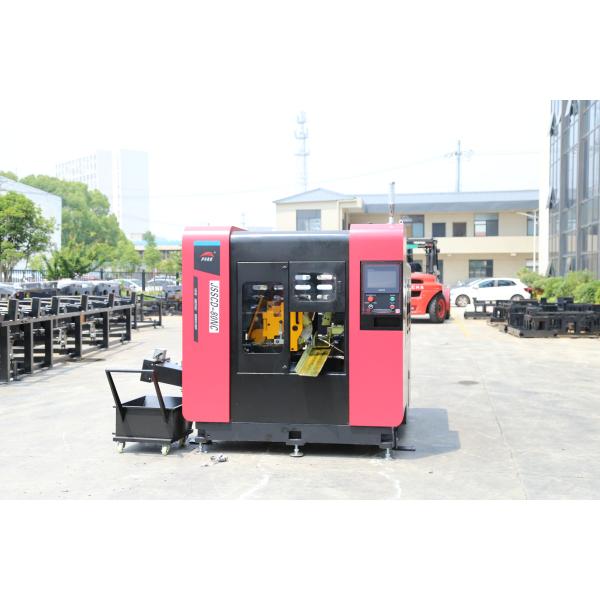

JSSCD-80NC/X CNC High Speed metal cutting circular saw(Angled-Push)

This CNC high-speed circular saw delivers precision angled cuts for metal fabrication applications. Its 15-degree descending cut path technology reduces impact loads while producing smooth, planar cut faces essential for premium edge integrity.

The system features intelligent automation, robust clamping fixtures, and optimized architecture for processing various metal stock including tubing and structural sections with minimal fixture adjustments.

Key Features
  • 15-degree downward cutting mechanism for reduced workpiece stress
  • High-output drive system with robust clamping fixture
  • Advanced CNC control with intuitive HMI interface
  • Optional automated material handling module
  • Precision-engineered for high-volume production
  • Optimized for material yield and production efficiency
Technical Specifications
Model Unit JSSCD-80NC/X
Mainframe dimensions mm 1998*2273*1808
Bar & round pipe mm 10-80
Angle bar & square bar mm 15-60
Saw blade size mm φ300*1.75*2.0*φ32
Spindle motor power KW 7.5(6P)
Spindle speed rpm 30-150
Feeding servo motor power KW 1.5
Material removal length at the front end mm ≥10
Single feeding length (repeatable) mm 10-850(Reversible feeding mechanism)
Hydraulic drive motor power KW 1.5(4p)
Rated pressure of the hydraulic system mpa 4-5
Hydraulic oil capacity L 70
Operational Benefits
• Elevates Material Yield: Minimizing scrap through optimized cutting strategies
• Accelerates Production Cycles: Reducing processing time per component
• Streamlines Delivery Timelines: Enabling faster order fulfillment
• Enhances Labor Efficiency: Freeing skilled personnel for higher-value tasks
80NC Alloy Steel Circular Saw Machine High Speed Angle Push 80NC Alloy Steel Circular Saw Machine High Speed Angle Push 80NC Alloy Steel Circular Saw Machine High Speed Angle Push 80NC Alloy Steel Circular Saw Machine High Speed Angle Push
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
A: We are a professional manufacturer of saw blade grinders with a 30,000 square meter factory and dedicated technical team.
Q2: Where is your factory located?
A: Our factory is located in Nantong City, Jiangsu Province, China, approximately 1.5 hours from Shanghai Hongqiao station.
Q3: What is your factory acceptance test method?
A: We perform test cuts with customer-provided samples and provide detailed cutting data along with video documentation.
Q4: What is your method of transaction?
A: We typically use FOB (Free On Board) transactions.
Q5: How about your delivery time?
A: Delivery typically takes 7-60 work days depending on order specifics.
Q6: How about the payment term?
A: Standard terms are 30% deposit with 70% balance paid before shipment.
Q7: Does the band saw blade have any international certifications?
A: Yes, we have obtained CE and ISO international certifications.
