55NC Automatic High Speed Cnc Circular Saw Cutting Machine For Metal Bars
55NC Automatic High Speed Cnc Circular Saw Cutting Machine For Metal Bars
55NC Automatic High Speed Cnc Circular Saw Cutting Machine For Metal Bars
55NC Automatic High Speed Cnc Circular Saw Cutting Machine For Metal Bars
55NC Automatic High Speed Cnc Circular Saw Cutting Machine For Metal Bars
55NC Automatic High Speed Cnc Circular Saw Cutting Machine For Metal Bars
55NC Automatic High Speed Cnc Circular Saw Cutting Machine For Metal Bars
55NC Automatic High Speed Cnc Circular Saw Cutting Machine For Metal Bars
Specifications
Supply Ability :
500 Sets Per Year
Cutting precision :
±0.05mm
Model Number :
JSSCD-55
Use :
Material cutting
MOQ :
1
Packaging Details :
depending on the machine model
Application :
Automobile manufacturing，Aerospace，Rail transit，Mechanical equipment，Hardware tools，Ship building，Building material，Pipeline engineering，Mold manufacturing，Electronics manufacturing
Payment Terms :
FOB
Cuttable material :
Carbon steel，Stainless steel，Alloy steel，Aluminum，Aluminum alloy，Copper，Copper alloy，Titanium alloy，PA
Certification :
HB24Q00435R0S HB24E00258R0S HB24S00242R0S
Dimension :
1950x1700x1700
Delivery Time :
7-60 work days
Feeding precision :
±0.1mm
Brand Name :
JSSCD
Name :
JSSCD-55NC CNC High Speed Circular Saw Machine
Place of Origin :
China
Saw type :
Straight cut
Description
Circular Sawing Machines for Precision Auto Parts Manufacturing

The JSSCD-55NC Automatic High-Speed Circular Saw Machine is an intelligent CNC sawing solution specifically engineered for high-volume precision cutting of round bars and square bars. Designed with an advanced flat-push servo feeding system, high-rigidity machine structure, and precision gearbox transmission, the machine delivers exceptional cutting accuracy, stable operation, and long saw blade life.

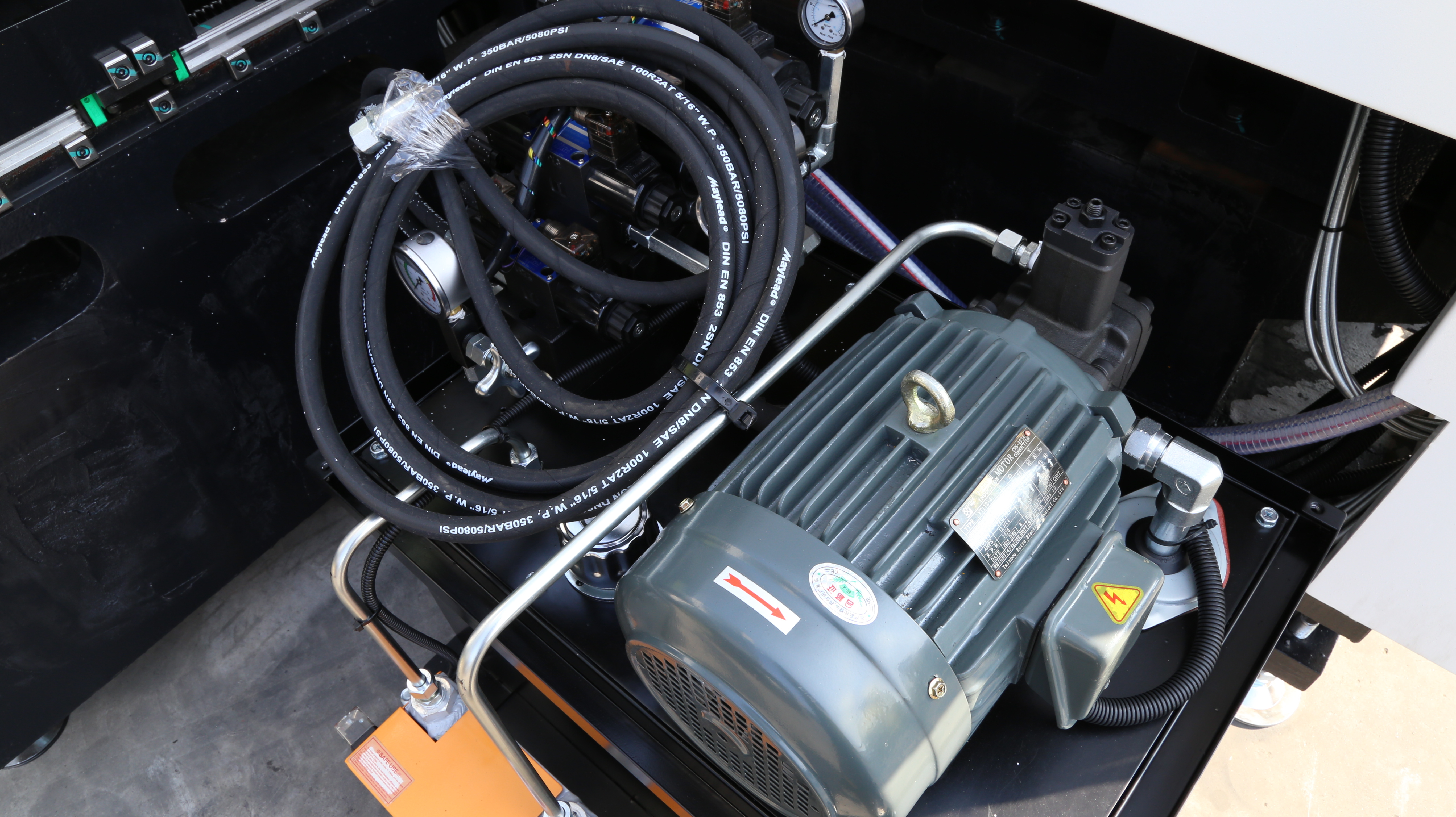

Equipped with automatic loading, servo ball screw feeding, hydraulic clamping, PLC touchscreen control, automatic lubrication, mist cooling, and chip conveyor systems, the JSSCD-55NC minimizes manual intervention while maximizing production efficiency.

Multi-scene application, multi-range cutting

Suitable for carbon steel, alloy steel, bearing steel, stainless steel, tool steel, and other metal materials up to HRC42, the machine is widely used in automotive manufacturing, forging plants, bearing production, fastener factories, hydraulic component processing, and metal service centers.

Whether your goal is to increase production capacity, improve cutting consistency, or reduce labor costs, the JSSCD-55NC offers a reliable and cost-effective intelligent sawing solution for modern manufacturing.

Technical Specifications
Model Unit JSSCD-55NC/P
Mainframe dimensions mm 1950*1700*1700
Bar & round pipe mm 10-55
Angle bar & square bar mm 10-40
Saw blade size mm φ285*2.0*φ32
Single feeding length (repeatable) mm 4-780
Spindel motor power KW 5.5(4P)
Cut off feed method AC servo motor & ball screw
Feeding drive method power AC servo motor & ball
Feding clamp method Hydraulic type (Hydraulic clamping)

55NC Automatic High Speed Cnc Circular Saw Cutting Machine For Metal Bars

55NC Automatic High Speed Cnc Circular Saw Cutting Machine For Metal Bars

Frequently Asked Questions
What is your method of transaction?

We typically use FOB (Free On Board) transactions, with 30% deposit and 70% balance before shipment.

Where is your factory located?

Our factory is located in Nantong City, Jiangsu Province, China, approximately 1.5 hours from Shanghai Hongqiao station.

What materials can the JSSCD-55NC cut?

The JSSCD-55NC is suitable for carbon steel, alloy steel, stainless steel, bearing steel, tool steel, and other metal bars with hardness up to HRC42.

Is the machine fully automatic?

Yes. It features automatic loading, servo feeding, hydraulic clamping, automatic cutting, counting, and chip removal to reduce labor and improve productivity.

Can the machine be customized?

Yes. We offer customized solutions based on your material size, production capacity, automation level, and factory requirements.
