High-performance CNC turning center with 4300rpm spindle, 8" hydraulic chuck, and comprehensive 1-year warranty.

• High-rigidity 45° slant bed cast iron structure
• 4300rpm high-speed spindle with 66mm through-hole

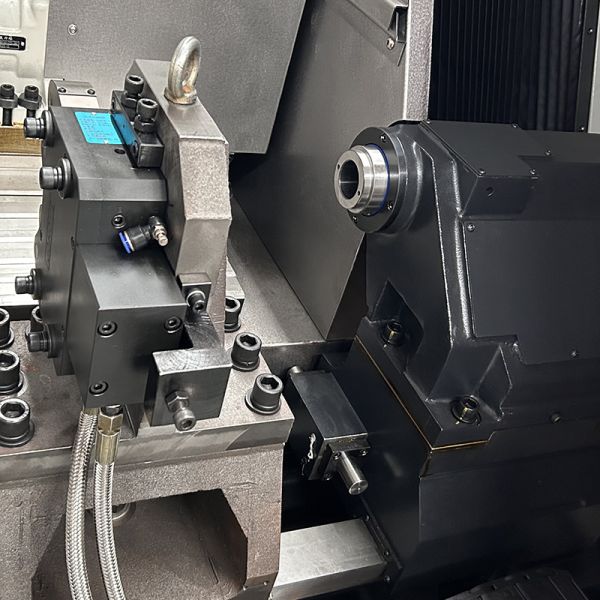

• 12-station hydraulic turret, 0.5s ultra-fast indexing

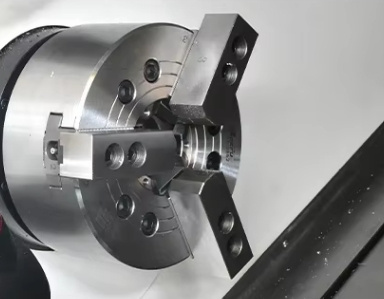

• 8-inch hydraulic chuck, 52mm bar stock processing capacity
• 800mm center distance, 260/750mm X/Z axis travel
• 24m/min rapid traverse speed for X/Z axis
• ±0.003mm high positioning accuracy
• CE & ISO 9001 certified
• 1 Year Warranty

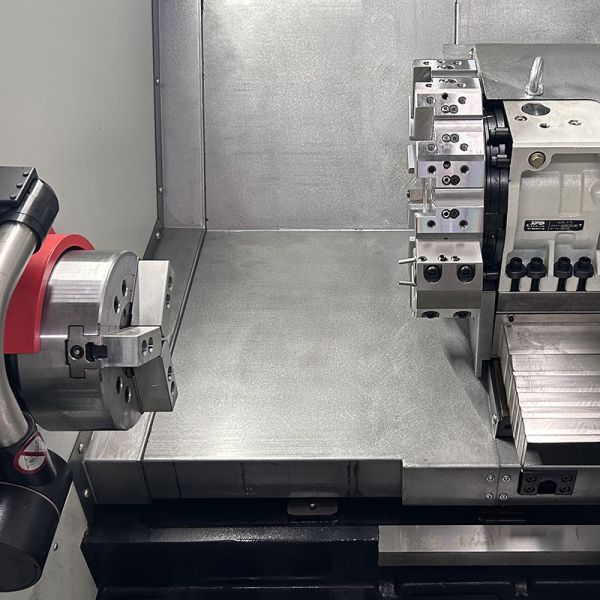

The SDVEDON TCK52DY is a high-performance slant bed CNC lathe designed for precision turning, bar stock processing, and automated mass production. Built with a rigid 45° slant bed cast iron structure, it delivers excellent vibration resistance and thermal stability, ensuring consistent machining accuracy even under heavy cutting conditions.

Equipped with a 4300rpm high-speed spindle (12/22kW motor power) and a 66mm large through-hole, this lathe supports 52mm bar stock processing, making it ideal for long shaft parts and continuous production. The 12-station hydraulic turret achieves an ultra-fast 0.5s indexing time, significantly reducing non-cutting time and boosting production efficiency.

The TCK52DY features an 8-inch hydraulic chuck for secure clamping, with an 800mm center distance to accommodate workpieces of various lengths. Its X/Z axis rapid traverse speed reaches 24m/min, further enhancing processing efficiency. Adopting imported linear guideways and precision ball screws, it ensures smooth, precise movement with high positioning accuracy.

The fully enclosed protective structure ensures operator safety and a clean working environment, while the integrated chip conveyor system efficiently removes cutting chips for easy maintenance. Compatible with multiple control systems (FANUC, Mitsubishi, Other systems optional), it offers a user-friendly operation interface for easy programming and monitoring. As a professional CNC turning solution from SDVEDON, the TCK52DY combines superior performance, reliability, and cost-effectiveness, with comprehensive after-sales service to meet your production requirements.

1. The machine must be installed by professional technicians in a flat, vibration-free workshop with sufficient power supply, cooling system and lubrication system.
2. Before operation, strictly follow the operation manual to check the spindle, turret, guideways, lubrication system and other components to ensure normal operation.
3. Operators must receive professional training, wear protective equipment, and strictly abide by safety operation procedures to avoid personal injury.
4. Regularly maintain the machine, including lubrication, cleaning, accuracy calibration and turret inspection, to ensure long-term stable performance.
5. When performing maintenance, tool change or troubleshooting, please cut off the power supply to avoid safety accidents.

Widely used in automotive parts processing, aerospace components, hardware machining, mold manufacturing, electronic parts production, and other industries requiring high-precision turning, bar stock processing and automated mass production.
