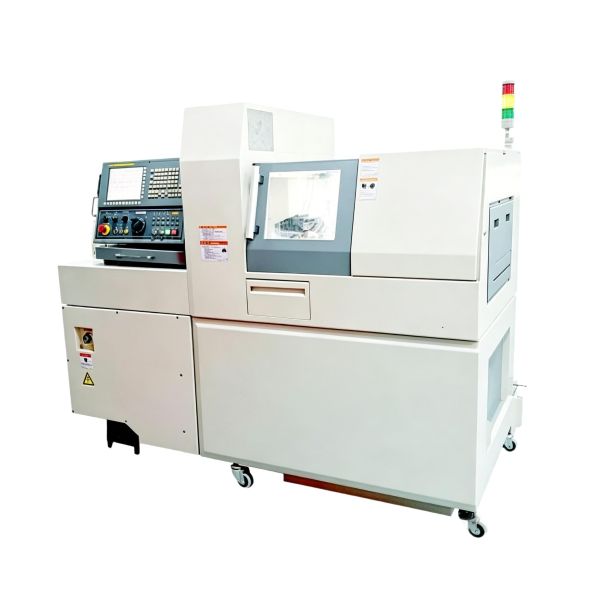

SZ-125E1 CNC Swiss Type Lathe Dual Spindle 12000rpm SYNTEC 220TB System

Quick Detail

• Equipped with Taiwan SYNTEC 220TB CNC control system
• Dual built-in oil-cooled electric spindle (main & sub spindle)
• Max machining diameter φ12mm, max spindle speed 12000rpm
• 0.001° indexing accuracy, guide bush/non-guide bush interchangeable
• 7 turning tools + 5 ER11 side milling tools + 8 ER16 fixed tools
• NSK bearings, THK spline shafts, SMC pneumatic system, Schneider electrical components
• CE & ISO 9001 certified, standard export wooden case packaging
• 1 Year Warranty, professional installation & training support

Description
The SZ-125E1 is a high-performance, dual-spindle CNC Swiss-type automatic lathe, specially designed for efficient one-stop machining of small, complex precision parts. Equipped with the Taiwan SYNTEC 220TB control system, this machine integrates turning, milling, drilling, tapping and other multi-process machining capabilities, enabling complete processing of complex parts in a single clamping, which greatly improves production efficiency and reduces labor costs.
The dual-spindle structure is the core advantage of this lathe. Both main and sub spindles adopt built-in oil-cooled electric spindles, with a maximum speed of 12000rpm and 0.001° high-precision indexing, ensuring exceptional accuracy for intricate contour machining and high-precision indexing tasks. The machine supports both guide bush and non-guide bush operation modes, with a maximum spindle travel of 205mm (with guide bush) and 308mm (without guide bush), adapting to different workpiece lengths and material characteristics.
The SZ-125E1 features a comprehensive tool configuration: 7 external turning tools (□10), 5 ER11 side milling power tools, 4 ER16 front fixed tools and 4 ER16 rear fixed tools, fully meeting the diversified processing needs of small precision parts in medical, aerospace, automotive, electronics and other industries. It is also equipped with air curtain protection, automatic lubrication system, liquid level detection, back spindle ejecting and blowing devices, ensuring long-term stable operation and high machining consistency.
Built with world-renowned brand components, including NSK high-speed bearings, THK precision spline shafts, SMC pneumatic system and Schneider electrical parts, the SZ-125E1 delivers exceptional reliability, low failure rate and long service life. All moving axes are 100% tested by Renishaw laser interferometer, ensuring positioning accuracy ≤0.005mm, meeting the strict requirements of high-precision manufacturing.

Specifications

Notices

• Ensure the installation ground is solid and reliable. Reserve an installation space of no less than 7.5m in length and 2.5m in width.
• Prepare 3-phase 4-wire 380V 50Hz power supply, and ensure reliable grounding in accordance with local electrical safety regulations to maintain safe operation.
• Prepare air source and air pipes (φ8.0/φ10.0), with continuous working air pressure no less than 0.5mpa.
• Prepare 180L cutting oil, 40L No.2 spindle cooling oil, 20L 46#/68# guide rail lubricating oil before operation.
• Installation and commissioning must be performed by professional technicians. Strictly follow the operation manual before starting the machine.
• During machining, keep the safety door closed and wear appropriate protective equipment to avoid contact with cutting chips or coolant spray.
• Perform regular maintenance: clean guide rails, screws, and tool posts regularly, and replace lubricating oil and filter elements according to the maintenance schedule.

Applications
Widely applied to mass production of small precision parts in various industries:

• Medical Devices: Surgical instruments, implant components, precision medical connectors
• Aerospace: High-precision aircraft engine parts, avionics structural components
• Automotive: Engine micro parts, transmission components, automotive sensor housings
• Electronics & Communications: 5G communication parts, precision connectors, sensor cores
• Hardware & Molds: Precision shaft parts, complex special-shaped components, watch parts

FAQ
Q: What certifications does the machine have?
A: The machine has passed CE and ISO 9001 international quality system certification, meeting international safety and quality standards.
Q: What is your MOQ for this machine?
A: The minimum order quantity (MOQ) for the SZ-125E1 CNC lathe is 1 set. We accept orders starting from 1 unit for trial and mass production.
Q: What is the delivery time?
A: The standard delivery time is 20-30 working days after receiving the 30% deposit.
Q: Can you accept customized configurations?
A: Yes, we can provide proper customization according to your processing requirements, such as tooling configuration, system functions and additional accessories.
Q: What kind of packaging and transportation do you provide?
A: We use standard export wooden case packaging suitable for sea and land transportation to ensure the machine is well protected during long-distance delivery.
