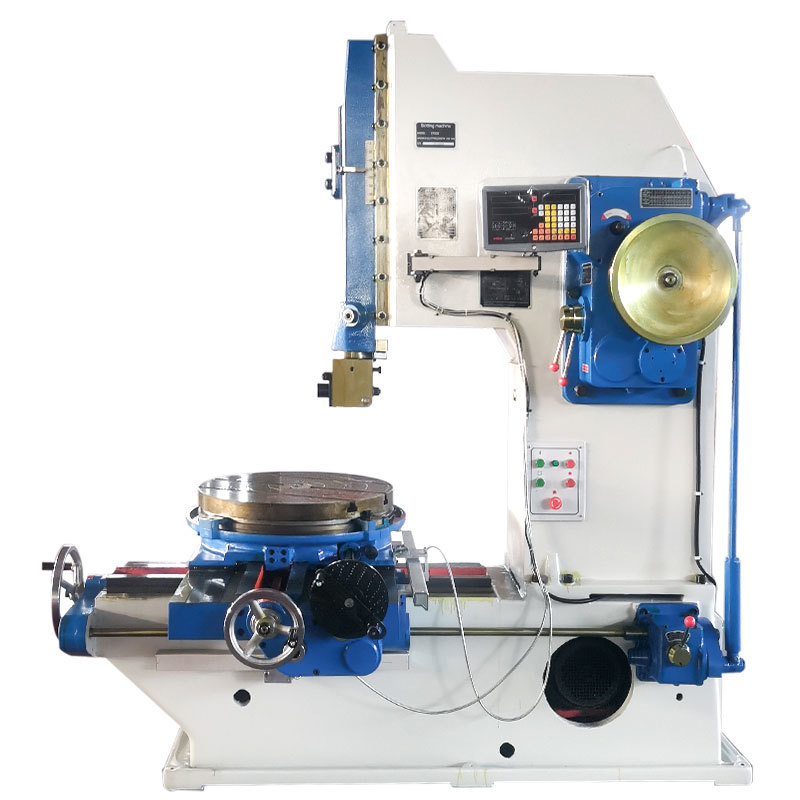

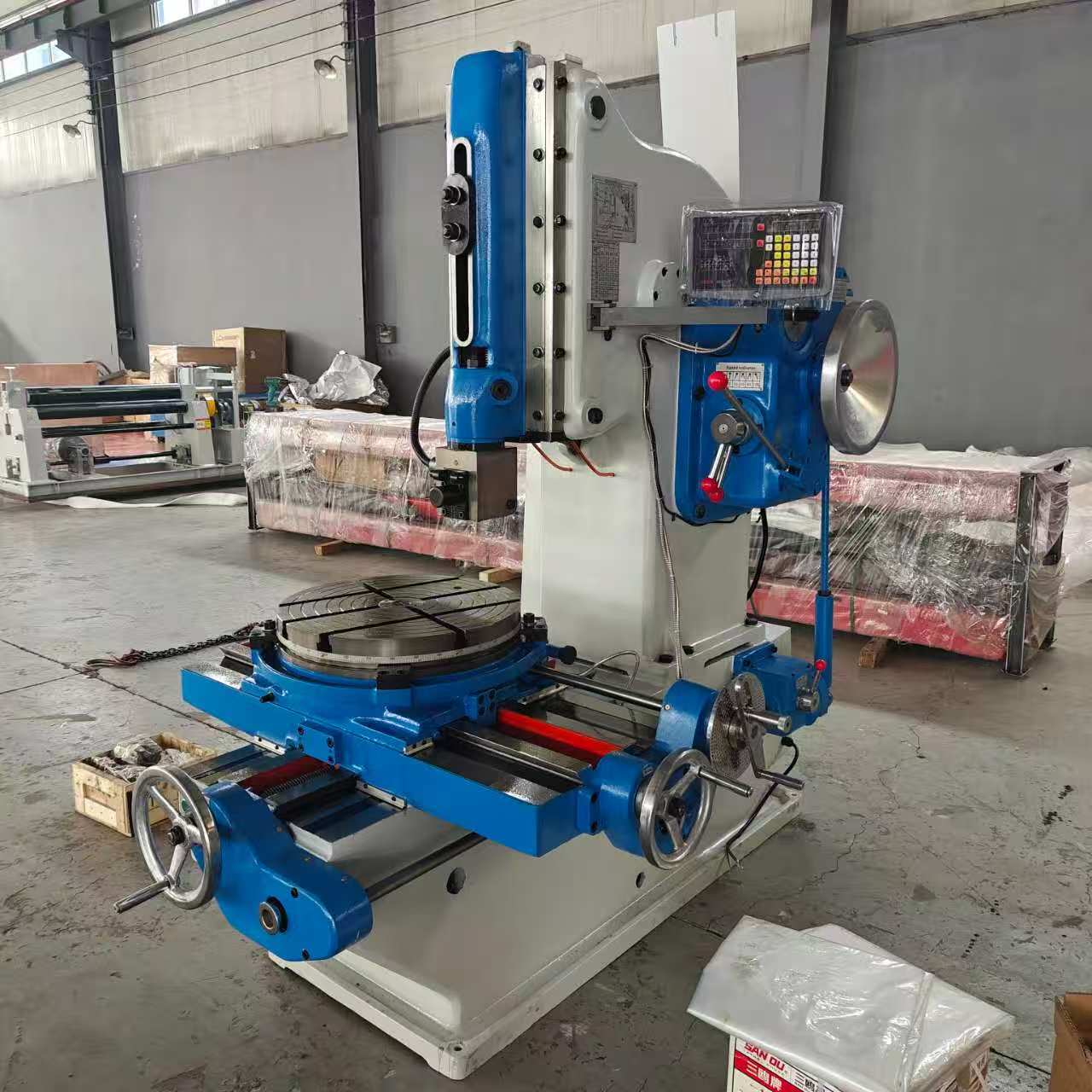

The B5032 vertical slotting machine is designed for machining flat surfaces, forming surfaces, keyways and stamping dies for metal workpieces. It suits single‑piece, small‑batch and mass production workshops, repair factories and construction‑site part processing. The machine reaches grade‑3 machining accuracy. Main assemblies include bed, ram, worktable, feed box, gearbox, electric and lubrication units. The crank‑rocker mechanism converts gear rotary motion into reciprocating ram stroke, and the rotary worktable supports multi‑angle workpiece positioning.

Technical Specifications

Why Choose Us?

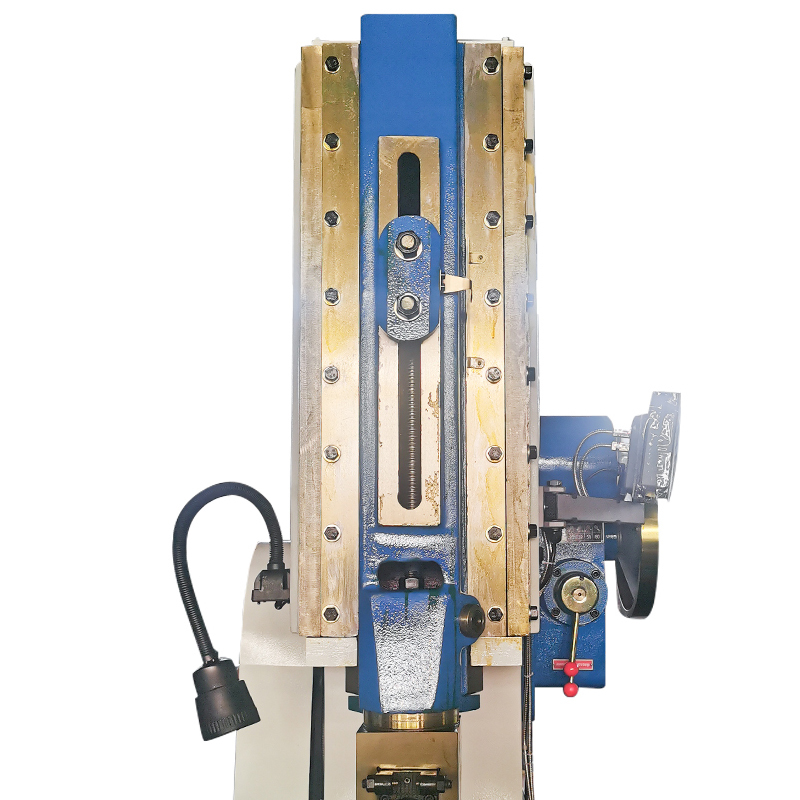

• Reliable Mechanical Structure: Composed of upper‑lower bed body, ram assembly, rotary worktable, feed box and gearbox. Crank‑rocker mechanism transforms gear rotation into ram reciprocating slotting movement for stable cutting motion.

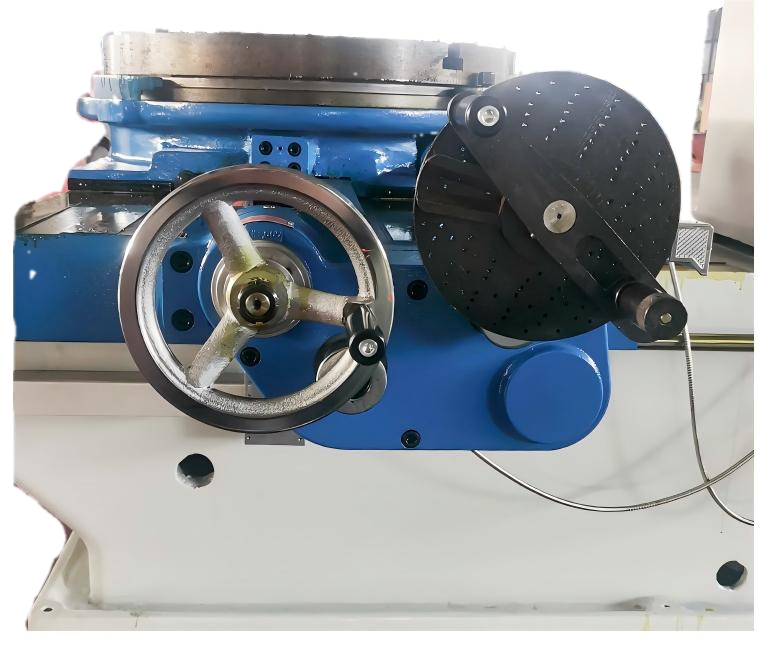

• Multi‑Axis Adjustable Worktable: 630mm diameter rotary worktable supports ±360° full rotation. Longitudinal and cross directions support both motor‑driven automatic feed and manual feed for flexible workpiece positioning.
• Heavy‑Load Cutting Capacity: Max 7500N cutting force, supports workpiece weight up to 500kg. Accepts max 25×40mm slotting tool shank for heavy‑duty metal slotting work.
• Wide Production Compatibility: Achieves grade‑3 machining accuracy. Suitable for mass‑production plants, small‑batch workshops, repair shops and on‑site component processing scenarios.

Primary Applications

• Mold Processing: Stamping die inner cavity and forming surface slotting work.
• Keyway Machining: Internal and external keyway slotting on various metal workpieces.
• Mechanical Repair: Flat surface, forming surface re‑working for spare mechanical parts.
• On‑Site Fabrication: Small‑part processing for infrastructure construction sites.
