Specifications
Brand Name :
HAOZHOU / OEM
Model Number :
HZ-IMX415 S2.0
Certification :
CE / RoHS / FCC / ISO
Place of Origin :
Shenzhen,China
MOQ :
100
Price :
38~58USD
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypay and others
Supply Ability :
500000 pieces/month
Delivery Time :
7 - 15 Work Days
Packaging Details :
Tray+Anti-static bag in carton box
Sensor Size :
IMX415 1/2.8"
Resolution and Frame Rate :
3840*2160/30fps
Pixel :
4K 8megapixel
compression format :
H.264 / MJPG / YUY
Interface :
USB 2.0 connecting port
Data Storage Options :
Full HD
Special Features :
Low Power
Style :
mini camera
Function :
Wide Angle
Warranty :
2 years
Focusing :
Fixed Focus / Autofocus
FOV :
90-140° OEM
Image color :
RGB
OS :
Win XP\Vista 7 8 10 \Linux \os with UVC driver
Description

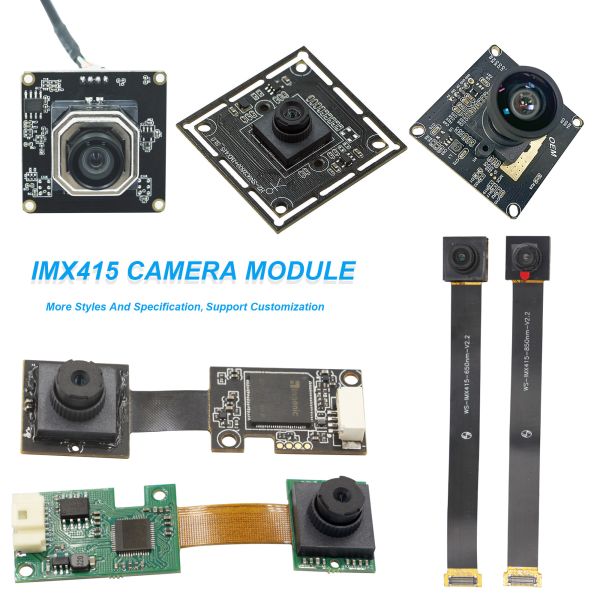

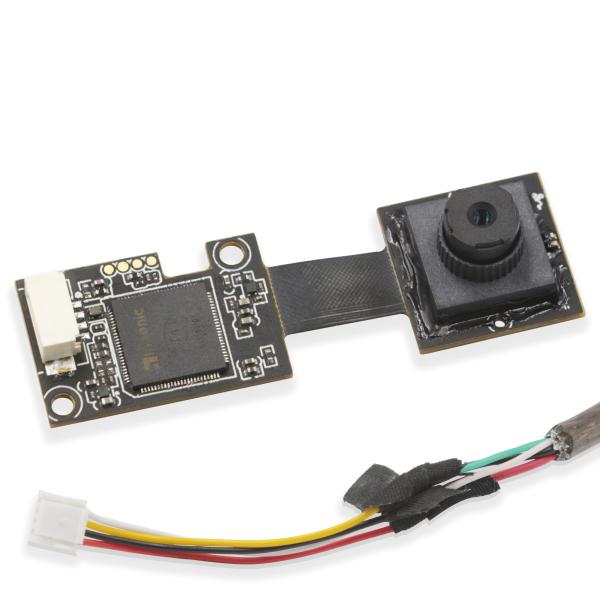

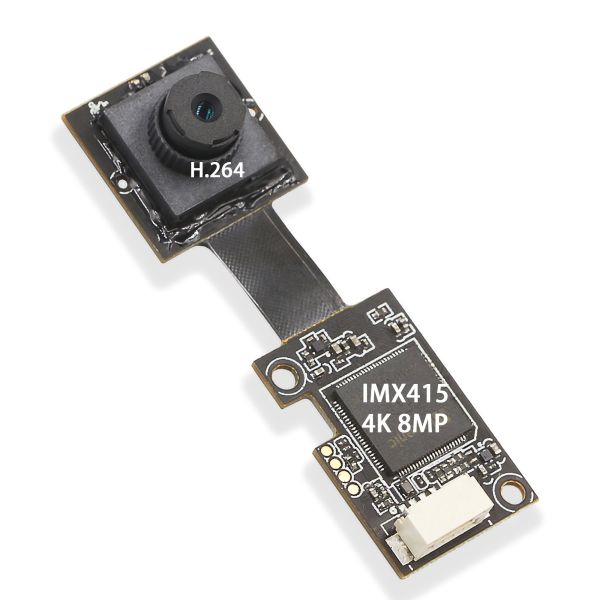

Custom H.264 8MP 30FPS imx415 mini micro CMOS USB camera module with IMX415 sensor 4k wide angle FF UVC OTG analog OEM


The IMX415 is a 6.4mm (1/2.8") diagonal CMOS active-pixel solid-state image sensor. It features a square pixel array with an effective pixel count of 8.46 million. The chip is powered by a triple power supply: analog 2.9V, digital 1.1V and interface 1.8V for low power consumption. High sensitivity, low dark current and no smear are achieved by using a mosaic filter of the three primary colors R, G, B. The rich pixel size of 1.45 microns square, combined with the latest pixel technology, low noise capability and improved low-light performance, makes it an ideal choice for high-end 4k security cameras. The image sensor is ideal for security cameras in a variety of surveillance applications, such as anti-theft, disaster alarm and traffic monitoring systems or commercial complexes.


1. Sensor:IMX415 CMOS

2. Interface USB,UVC compliant, Plug & Play
3.Image Format:H.264
4. 95-140° Wide angle,Customizable lens
5. 4K (8MP, 3840x2160) resolution
6. 30FPS high frame rate at full resolution
7. superior low-light performance
8. mic: Customizable 6. Camera Module is widely used for high-tech and high-demanding applications like security, robotics, artificial intelligence(AI), IoT, surveillance, educational equipment, medical imaging, embedded devices, industrial automation,etc


Product number
HZ-IMX415AF S1.0
Product program
CMOSM
CMOS
1/2.8inch IMX415
Image pixels
1.45um
Image Format
H.264
Dynamis range
82dB
Image color
RGB
MIC
/ OEM
Type of Focusing
Auto focus
Exposure
Auto Exposure/Manual Exposure
Lens
f/on.4.3mm
Focus raege
default 600mm(It can be adjusted according to the shooting distance.)
FOV
95°-140° OEM
weight
150g
camera control
Saturation/Contrast/Sharpness
white balance
auto/manually/Cr,Cb:Requirements -12≤average≤+12
Applicable equipment
Industrial equipment, media equipment, network video conference, surveillance video POS machine, medical equipment, smart home,
display stand, self-service equipment, Android equipment, advertising machine, industrial computer, ATM teller machine and other
equipment.
Operating Voltage
5V
Working current
160-260mA
work rate
2W
Operating temperature
-10℃~+70℃
Drivers Temperature
Free drive
Resulution
Resulution
MJPG
YUY2
3840*2160
30fps
1fps
2592*1944
30fps
1fps
2688*1512
30fps
1fps
2048*1536
30fps
3fps
1920*1080
30fps
5fps
1600*1200
30fps
5fps
requested systems
WinXP/Win7/Win8/Win10/Wind/MAC OSX captin 10.11.4 and Linux/Android
Fixed Pattern Noise
650±10nm
