2MP USB PoE Defogging Camera Module
2MP USB PoE Defogging Camera Module
2MP USB PoE Defogging Camera Module
2MP USB PoE Defogging Camera Module
2MP USB PoE Defogging Camera Module
2MP USB PoE Defogging Camera Module
2MP USB PoE Defogging Camera Module
2MP USB PoE Defogging Camera Module
Specifications
Brand Name :
HAOZHOU / OEM
Model Number :
HZ-OV9732 S1.0
Certification :
CE / RoHS / FCC / ISO
Place of Origin :
Shenzhen,China
MOQ :
1
Price :
28~40USD
Payment Terms :
L/C,Western Union,T/T,MoneyGram,Paypal and Others
Supply Ability :
500000 pieces/month
Delivery Time :
7 - 15 Work Days
Packaging Details :
Tray+Anti-static bag in carton box
Mounting Type :
USB driver-free, plug and play, UVC standard proto
Description :
FF industrial usb camera module
Focus :
Fixedfocus / Manual focus (OEM)
FOV :
D=180 degrees (Support customization)
Features :
low-power and ultra-compact
Module Size :
38mm*38mm
Series :
USB Camera
Output Formats :
YUY2/MJPEG
Network :
SDK
Warranty :
2 years
Description

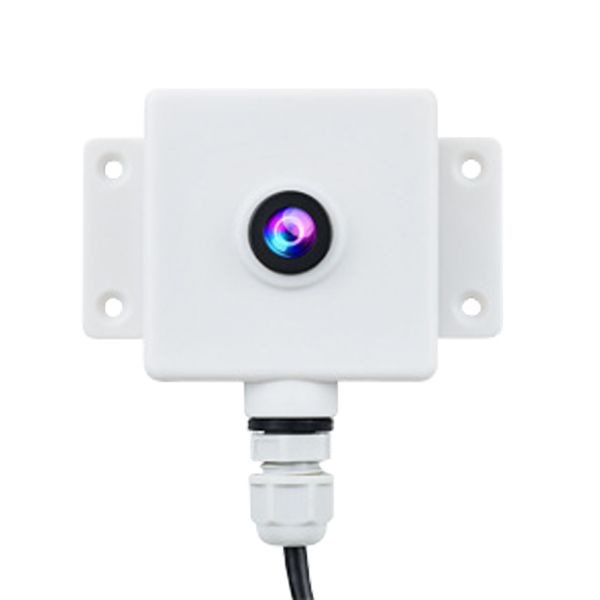

New 1080P USB PoE Refrigerator Defogging Camera Module with Housing


Product Description

A refrigerator defogging camera is a specially designed miniature camera module for low-temperature, high-humidity environments (such as smart refrigerators and freezers). It typically uses a built-in thermistor or heat-conducting metal component to transfer the heat generated by the compressor/condenser to the lens surface, achieving automatic heating to defog/remove condensation and ensure clear images.


Core Technologies and Features:

Defogging Principle: The camera uses continuous temperature control to maintain a lens surface temperature higher than the ambient dew point, preventing condensation.

Physical Defogging: A heat-conducting metal rod connects to the freezer components, directly transferring heat to the front of the camera.

Hardware Components: Commonly uses a 1080P high-definition, wide-angle (180-degree fisheye) lens module, connected via USB, supporting night vision.

Application Scenarios: Primarily used for integrated smart refrigerators and cold chain monitoring in commercial freezers, enabling real-time inventory quantity identification.


OmniVision OV9732 USB Camera Module Functions and Features

1. Defogging camera

2. BLN1 3. Resolution: 1920*1080P 4. 120-220° Wide angle,Customizable lens
5. Application Scope: refrigerators/freezers/vending machines, etc.


USB Defogging Camera Applications

Refrigerator/Freezer/Vending Machine, etc.


Specifications: 2MP Defogging Camera POE USB

model
BLN1
Resolution
1920*1080
Effective pixels
200W
Video bitrate
128kbs~8Mbs
Signal-to-noise ratio
44dB
Lens angle
D:200°,H:190°,V:145°
Compression format
H.264
Exposure control
Automatic
 1280x720 @ 10fps YUV
800x600 @ 15fps YUV
640x480 @ 30fps YUV
Gain control
Automatic
White Balance
Automatic
Support Agreement
TCP/IP
bitstream
Dual stream
Network Protocol
standard HTTP,TCP/IP,ICMP,RTSP,RTP,UDP,RTCP,SMTP,CHDP,DNS,PPPOE
Network P2P tunneling
Support
ONVIF
Support
DC Power input
12V300mA
POE Power supply voltage
37V~57V
POE Power supply
3.6W
POE Power supply wiring sequence
support 1236 or 4578 Automatic recognition
Defogging
support -5 °C ~ +40 °C Defogging in environmental conditions
Waterproof rating
IP65
Lens Specifications Size: 1/4" Focal Length
2.84m Aperture: F2.0
77.3° (diagonal)
Mount: M12*P0.5
Lamp Board Power Supply Interface /
Power Supply and Interface USB BUS POWER 5P-1.25mm Horizontal socket
Voltage USB-5V
Current 80mA- 180mA
Dimensions 38mm (L) × 38mm(W) x9.6mm(H)
Storage Temperature -30°C to 70°C
Operating Temperature 0°C to 50°C
USB Cable 1M(2M/3M/5M Optional)
System Support Win XP/Vista/Win7/Win8 / Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
