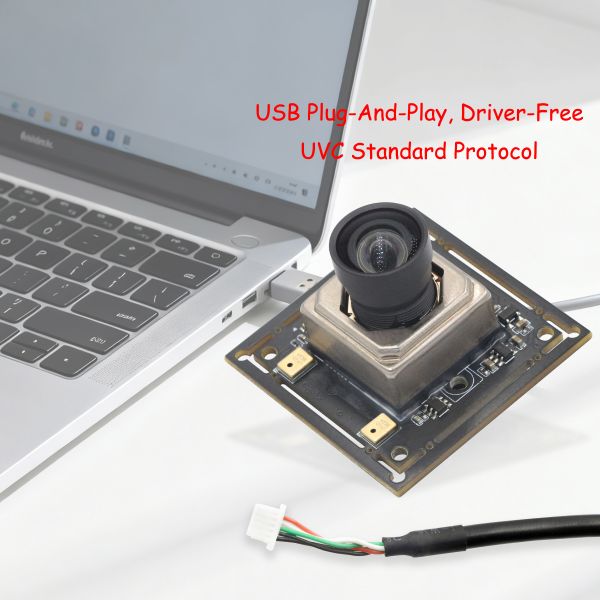

8MP 4K 30fps Sony IMX334 USB Camera Module Industrial Machine Vision CMOS Sensor Camera Module
8MP 4K 30fps Sony IMX334 USB Camera Module Industrial Machine Vision CMOS Sensor Camera Module
8MP 4K 30fps Sony IMX334 USB Camera Module Industrial Machine Vision CMOS Sensor Camera Module
8MP 4K 30fps Sony IMX334 USB Camera Module Industrial Machine Vision CMOS Sensor Camera Module
8MP 4K 30fps Sony IMX334 USB Camera Module Industrial Machine Vision CMOS Sensor Camera Module
8MP 4K 30fps Sony IMX334 USB Camera Module Industrial Machine Vision CMOS Sensor Camera Module
8MP 4K 30fps Sony IMX334 USB Camera Module Industrial Machine Vision CMOS Sensor Camera Module
8MP 4K 30fps Sony IMX334 USB Camera Module Industrial Machine Vision CMOS Sensor Camera Module
8MP 4K 30fps Sony IMX334 USB Camera Module Industrial Machine Vision CMOS Sensor Camera Module
8MP 4K 30fps Sony IMX334 USB Camera Module Industrial Machine Vision CMOS Sensor Camera Module
Specifications
Brand Name :
HAOZHOU / OEM
Model Number :
HZ-IMX334-V1 / OEM
Certification :
CE / RoHS / FCC / ISO
Place of Origin :
Shenzhen,China
MOQ :
1
Price :
35 ~ 70USD
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypay and others
Supply Ability :
500000 pieces/month
Delivery Time :
7 - 15 Work Days
Packaging Details :
Tray+Anti-static bag in carton box
Mounting Type :
USB interface
Description :
USB Camera Module
Application :
Industrial computer vision applications AR, VR
Sensor No :
IMX334 B&W or RGB CMOS image sensor
Module Size :
38mm*38mm
Sensor Type :
1/1.8 inch
Pixel Size :
2.0um*2.0um
Transfer Rate :
1920*1080@30fps
Resolution :
3840(H) * 2320(V) (8megapixel)
Interface type :
USB / MIPI CSI (OEM)
Object Distance :
10CM-infinity
Focus type :
Auto Focus / Fixed Focus Lens (customize)
FOV :
65° ~ 120° Support customization
Description

Factory Customized High Quality Sony IMX334 4K 30fps CMOS Image Sensor, Global Shutter, Monochrome/B&W or RGB, 8MP, 60FPS, 1080P, 120FPS, High Speed ​​MIPI CSI CMOS Image Sensor Module, Fisheye Wide Angle Fixed Focus HD 8MP Camera Module for Surveillance Camera, Iris Recognition, Robot Vision Diagonal 8.86mm (1/1.8 Inch) CMOS Solid State Image Sensor, Square Pixels, for Monochrome Cameras


The lMX334LLR is a CMOS active pixel type solid-state image sensor with a diagonal length of 8.86 mm (1/1.8 inches), a square pixel size, and 8.42 million effective pixels. It can collect light more efficiently to achieve high sensitivity and high quality in the visible and near-infrared light regions. The chip is powered by a triple power supply of analog 2.9V, digital 1.2V, and interface 1.8V, with low power consumption. The chip has the characteristics of high sensitivity, low dark current, and no smear. The chip is equipped with an electronic shutter with variable charge integration time (applications: surveillance cameras, factory automation cameras, industrial cameras).


1) Sony IMX334-8Megapixel black and white monochrome or RGB Sensor Surveillance camera Applications

2) Global shutter technology high-speed image sensors camera module

3) High frame rate 30fps @ full resolution 3840(H)*2160 (V)

4) 1920 x1080 @ 30fps resolution

5) USB Interface, MIPI interface can initiate inquiry to consult suppliers.

6) DFOV = 100 Degree (Optional)

7) Lenses and focal lengths can be configured as required

8) Support more customization

Camera Module Key Parameters
Module Size 38*38mm 32*32mm
Sensor 1/1.8-Inch CMOS Sensor(IMX334)
Resolution 3840 H x 2160 V
Pixel Size 2*2µm
Output Format MJPEG, YUV2
FOV DFOV:93°
Lens FEL:4.2mm F/NO:2.0 3G2P
Scanning Speed 0.1S
Focus Type FF/ MF
Shutter Type Electronic Rolling shutter
Output and Power Supply High Speed USB2.0
Interface 5 PIN 1.25MM Socket
Controllable Parameters Brightness, Contrast, Saturation, Hue,Sharpness, Gamma, White Balance,Backlight Contrast, Exposure
Supported OS Windows, Android, Linux, Wince, Mac OS
Cable Length Default 1.0 Meter USB Cable
MIC Digital Microphone
Supported Resolution and Frame Rate
Format Resolution & Frame Rate (USB2.0)
MJPEG 3840X2160(4K) 30FPS
2952x1944 (5MP) 30FPS
2048x1536(3MP) 30FPS
1920x1080 (1080P) 30FPS
1280x720 (720P) 30FPS
640x480 (VGA) 30FPS
YUY2 3840x2160(4K) 1FPS
2952x1944 (5MP) 2FPS
2048x1536(3MP) 2FPS
1920x1080 (1080P) 5FPS
1280x720 (720P) 10FPS
640x480 (VGA) 30FPS
Working Condition
Operating Voltage USB DC +5V Supply
Operating Current 230mA
Operating Temperature -20℃ ~ 60℃
Storage Temperature -20℃ ~ 85℃
Humidity 80 ~85%
