Specifications
Brand Name :
HAOZHOU / OEM
Model Number :
HZ-AR0230 S1.0
Certification :
CE / RoHS / FCC / ISO
Place of Origin :
Shenzhen, China
MOQ :
1
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypay and others
Supply Ability :
500000 pieces/month
Delivery Time :
7 - 15 Work Days
Packaging Details :
Tray+Anti-static bag in carton box
Price :
20~28USD
Description :
850nm IR-CUT 1080P Camera module
Mounting Type :

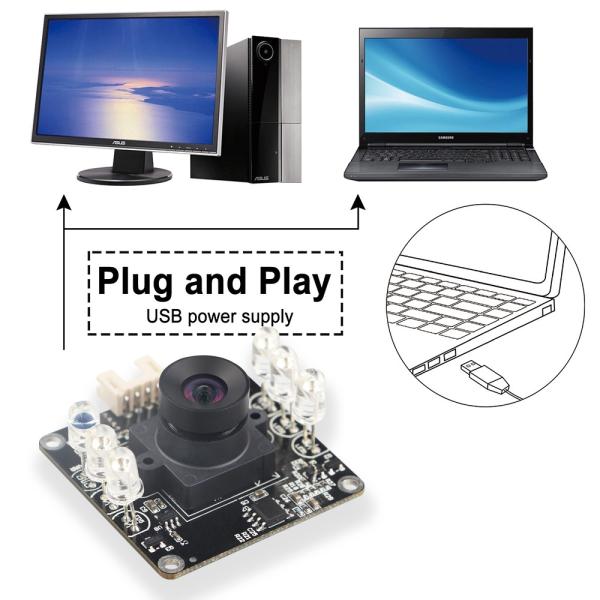

UVC driver-free usb plug and play
Network :
SDK
Warranty :
3 years
Focus :
Fixed focus
Pixel Size :
3.0μm*3.0μm
Wide dynamic range :
96DB
FOV :
D:90°H:82°V:52° (OEM)
IR-CUT :
IR:650nm&850nm(±10nm)
Special Features :
NIGHT VISION, Face recognition
Description

OEM 1080p HD AR0230 1/2.7Inch CMOS Digital Image Sensor Mini Camera Module 2MP High Dynamic Range Night Vision USB Camera Module

Product Description

Mini Camera Module

  • The AR0230 is a high-performance 1/2.7-inch CMOS digital image sensor launched by ON Semiconductor, designed for automotive, industrial and consumer-grade vision applications. The AR0230 HD mini camera module uses advanced 3.0μm pixel technology, supports 1920×1080 full HD resolution (1080p), provides excellent low-light performance and dynamic range (up to 120dB), and can still present clear and detailed images under complex lighting conditions.

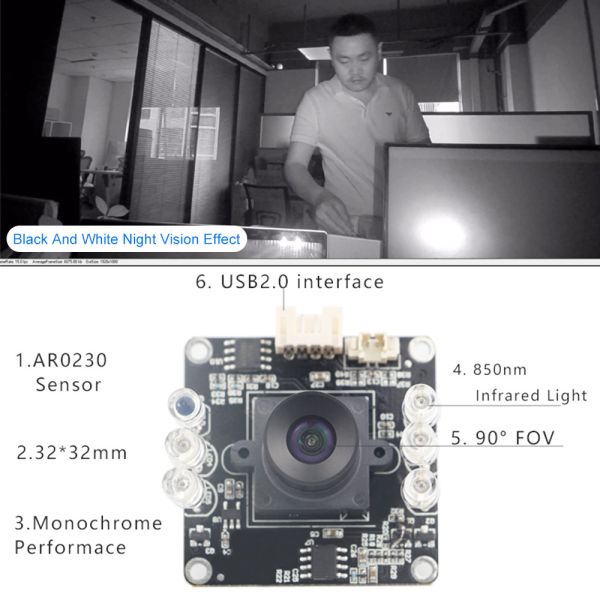

Infrared Camera Module

  • The AR0230 CMOS digital image sensor has an effective pixel array of 1928Hx1088V. It supports linear or high dynamic range modes and adopts rolling shutter readout. It includes advanced camera features such as in-pixel merging, windowing, and video and single frame modes. It is designed for low-light and high dynamic range scenes. It can be programmed through a simple two-wire serial interface. The AR0230 infrared camera module supports high frame rate output up to 60fps and has excellent near-infrared (NIR) sensitivity for night vision or infrared fill-in scenes.

AR0230 USB Camera Module Functions and Features

·Excellent low-light performance
·Latest 3.0um pixel with DR-Pix semiconductor" technology with dual conversion gain
·Supports up to 1080P 30fps Full HD, providing excellent video performance
·Built-in 850nm IR CUT filter, built-in 6 LED lights
·Up to 105dB wide dynamic range
·Linear or high dynamic range capture
·Optional Adaptive Local Tone Mapping (ALTM)
·Pixel or line interleaved T1/T2 output
·Support external mechanical shutter
·On-chip phase-locked loop (PLL) oscillator
·Integrated position-based color and lens shading correction
·Slave mode for precise frame rate control
·Stereo/3D camera support

CMOS Camera Module Applications

Car cameras, security monitoring, industrial vision, robots, sports cameras, machine vision, drone cameras, smart doorbells, medical equipment, AR/VR equipment, etc.

Specifications:Wide-angle Camera Module

Module No.
HZ-AR0230 S1.0
Module Size
38mm *38mm
Object distance
20CM-∞
Resolution
800LW/PH (Center)
Image color
Monochrome RGB
working Voltage
5V
working current
Max 500mA
Temperature (Operation)
-30°C to 70°C
Temperature (Stable Image)
0°C to 60°C
Operating system request
Windows 2000 ,Windows XP/ 7 / 8 /10 /Linux or OS with UVC Driver
Package
Anti-electrostatic tray
Sensor Type
Sensor No
AR0230
Sensor Type
1/2.7”
Active Array Size
1920(H) x 1080(V)
Sensitivity
3700mV/(Lux·sec)
Maximum Image Transfer Rate
1080P@30fps
LENS
Lens Type
5G
Mount
M12*p0.5mm
DSP Type
GC/EC/Whiter balance
Auto
Interface
USB 2.0
Output Formats
YUY2/MJPG
