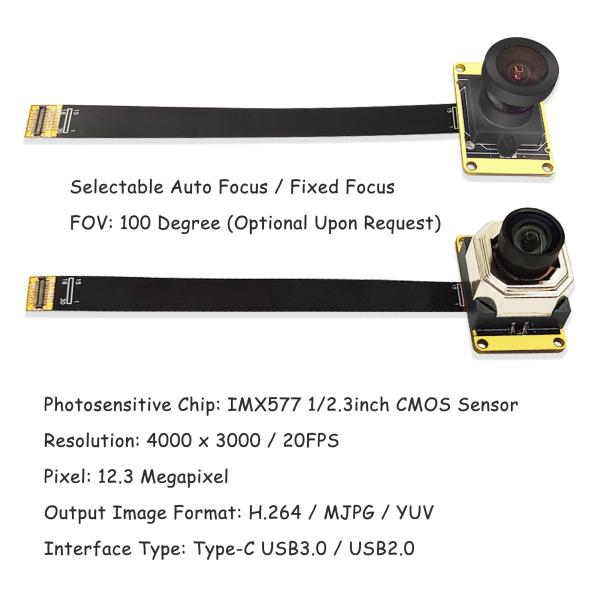

High Sensitivity Imx577 12.3Mp M12 Lens AF 4K H.264 RGB Camcorder Mini Cmos Camera Sensor Face Recognition Usb Camera Module

Product Description

wide angle lens Camera

• The IMX577 is a 12.3-megapixel CMOS active pixel stacked image sensor with a diagonal length of 7.857 mm (1.23 inches) and a square pixel array. The IMX577 high-definition industrial camera module achieves high-speed image acquisition through column-parallel A/D conversion circuits and achieves high sensitivity and low-noise images through a back-illuminated imaging pixel structure. The module camera supports three-primary color mosaic filters and is equipped with a variable integration time electronic shutter. The input/output interface uses three power supply voltages for low power consumption.

4k usb camera module

• Sony IMX577 is an advanced 1/2.3-inch CMOS image sensor designed for high-resolution and high-speed imaging needs. The IMX577 module camera has 12.2 million effective pixels, uses back-illuminated (BSI) technology and advanced pixel structure, and has significantly improved sensitivity, which can present clear images with low noise and high dynamic range even in low-light environments. The module camera supports 4K HDR video recording and has high-speed readout capabilities to meet the high frame rate shooting requirements of mobile devices.

4K USB Camera Functions and Features

◆Two PLLs for independent clock generation for pixel control and data output interface.

◆Digital Overlap High Dynamic Range (DOL-HDR) mode for raw data output.
◆Dual sensor synchronous operation (multi-camera compatible)

◆Back-illuminated and stacked CMOS image sensors.

◆Pixel binning readout and V sub-sampling function.

◆Output video formats are RAW12/10/8, COMP8.

◆Power saving mode with MIPIULPS operation.

◆Horizontal low-power analog cropping.

◆On-chip 10-bit/12-bit A/D conversion.

◆Input clock frequency 6 to 27 MHZ

◆Defective Pixel Correction (DPC)

◆Fast mode conversion. (in flight

)◆High signal-to-noise ratio.

◆Independent flip and mirror.
◆CS1-2 serial data output
◆2-wire serial communication.
◆Ambient Light Sensor (ALS)
◆Built-in temperature sensor
◆Window scan mode

CMOS Camera Module Applications

Smartphones, digital cameras, industrial and machine vision, security monitoring, face recognition, drones, medical imaging, car cameras, AR/VR, sports cameras, etc.

Specifications:12MP mobile phone camera module
