Sony 16MP IMX298 USB Camera Module with Wide Dynamic Range for Drone
Sony 16MP IMX298 USB Camera Module with Wide Dynamic Range for Drone
Sony 16MP IMX298 USB Camera Module with Wide Dynamic Range for Drone
Sony 16MP IMX298 USB Camera Module with Wide Dynamic Range for Drone
Sony 16MP IMX298 USB Camera Module with Wide Dynamic Range for Drone
Sony 16MP IMX298 USB Camera Module with Wide Dynamic Range for Drone
Sony 16MP IMX298 USB Camera Module with Wide Dynamic Range for Drone
Sony 16MP IMX298 USB Camera Module with Wide Dynamic Range for Drone
Specifications
Brand Name :
HAOZHOU/OEM
Model Number :
HZ-IMX377 AF1.0
Certification :
CE / RoHS / FCC / ISO
Place of Origin :
Shenzhen,China
MOQ :
1
Price :
25~45USD
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypay and others
Supply Ability :
500000 pieces/month
Delivery Time :
7 - 15 Work Days
Packaging Details :
Tray+Anti-static bag in carton box
describe :
HD USB Camera Module
Installation Type :
USB Plug and Play
Warranty :
3 years
FOV :
(Customizable）
Focus :
Auto focus / Fixed focus（OEM)
style :
Mini Camera Module
Pixel size :
1.12µm x 1.12µm
Pixel :
16 Mega Pixel
Function :
High sensitivity, low dark current
Special Features :
HDR, high speed, low light
Description

Factory Custom Autofocus USB Camera Module Computer IMX298 16MP CMOS USB Camera for UVC Video Camera Industrial Robot Vision


Product Description

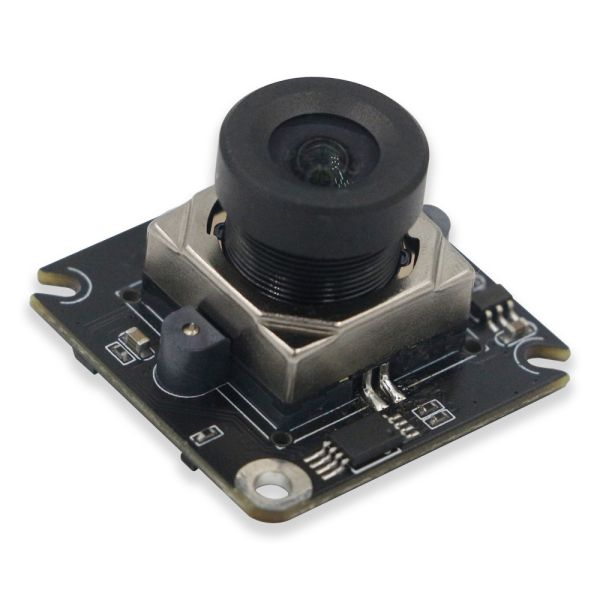

Auto Focus USB Camera Module

  • This specialized HDR camera module meets demanding requirements of aerial photography with 16MP resolution and enhanced dynamic range. The RGBW technology ensures optimal performance in challenging lighting.
  • This is a high resolution, high sensitivity and high technology USB2.0 camera module, it is 16MP resolution with SONY IMX298 CMOS sensor, image quality is very high and excellent; Also, it is Auto Focus with focus range from 0-1023


IMX298 4K Camera Module Functions and Features

ensor: SONY IMX298 CMOS

Resolution: 16MP (4608×3456)

Pixel Structure: RGBW array

Dynamic Range: Enhanced HDR

Operating Temp: 0°C to 60°C

FOV: 70° customizable


CMOS Camera Module USB Applications

Drone cameras, UAV imaging systems, aerial mapping, and professional photography drones.etc.


Specifications:12MP HD Camera Module

Module No. HZ-IMX298 S1.0
Module Size 38mm × 38mm (Support customization)
Object distance 1cm-∞
Focus Auto Focus
Chroma Color, RGB
Interface USB2.0
Protocol & Connection Plug-&-Play (UVC compliant)
Voltage DC5V
Temperature (Operation) -20°C to 70°C
Temperature (Stable Image) 0°C to 50°C
Operating system request Windows XP/7/8/10, Linux (supports UVC protocol) Android (supports UVC protocol), MAC-ios
Adjustable Parameters Brightness/Contrast/Color saturation/Hue/Definition/

Gamma/White balance/Exposure
Auto Exposure Control (AEC) Supported
Auto White Balance (AEB) Supported
Auto Gain Control (AGC) Supported
Package Anti-electrostatic tray
Sensor Type
Sensor No. IMX298
Sercor Type 1/2.8Inch
Active Array Size 4656(H)*3496(V)
Pixel 16 Mega Pixel
Compression format MJPEG / YUY2
Pixel Size 1.12µm x 1.12µm
Shutter Type Electronic rolling shutter
Dynamic Range TBD
