OV5640 CMOS Sensor 5MP HD Image Fixed Focus and Wide Angle DVP Camera Module
OV5640 CMOS Sensor 5MP HD Image Fixed Focus and Wide Angle DVP Camera Module
OV5640 CMOS Sensor 5MP HD Image Fixed Focus and Wide Angle DVP Camera Module
OV5640 CMOS Sensor 5MP HD Image Fixed Focus and Wide Angle DVP Camera Module
OV5640 CMOS Sensor 5MP HD Image Fixed Focus and Wide Angle DVP Camera Module
OV5640 CMOS Sensor 5MP HD Image Fixed Focus and Wide Angle DVP Camera Module
OV5640 CMOS Sensor 5MP HD Image Fixed Focus and Wide Angle DVP Camera Module
OV5640 CMOS Sensor 5MP HD Image Fixed Focus and Wide Angle DVP Camera Module
OV5640 CMOS Sensor 5MP HD Image Fixed Focus and Wide Angle DVP Camera Module
OV5640 CMOS Sensor 5MP HD Image Fixed Focus and Wide Angle DVP Camera Module
OV5640 CMOS Sensor 5MP HD Image Fixed Focus and Wide Angle DVP Camera Module
OV5640 CMOS Sensor 5MP HD Image Fixed Focus and Wide Angle DVP Camera Module
Specifications
Brand Name :
SINCERE FIRST
Model Number :
SF-SAC5014OV-DVP-FF-D115 V1.0
Certification :
CE, FCC, RoHS, REACH, ISO
Place of Origin :
Guangdong , China
MOQ :
5pcs
Price :
Negotiable
Payment Terms :
L/C, Western Union, T/T, MoneyGram, Paypal and Others
Supply Ability :
350000 pcs / month
Delivery Time :
7 - 15 Work Days
Packaging Details :
Package, Carton Box
Brand :
SincereFirst
Product Name :
5MP Wide-Angle DVP Camera Module
Pixel :
5MP
Sensor :
OV5640
Resolution :
2592×1944
Interface :
DVP
FOV :
D115°*H81°*V61°
Output Format :
RAW RGB / RGB565/555/444 / YUV422/420 / CCIR656 / YCbCr422
Focus Length :
2.6
F.No :
2.6
Distortion :
<-25%
Description

OV5640 CMOS Sensor 5MP HD Image Fixed Focus and Wide Angle DVP Camera Module

OV5640 CMOS Sensor 5MP HD Image Fixed Focus and Wide Angle DVP Camera Module

Product Description:

This OV5640 CMOS Sensor 5MP HD Image Fixed Focus and Wide Angle DVP Camera Module based on the OV5640 CMOS sensor adopts a DVP parallel digital interface and fixed focus design, specially designed for wide-field acquisition, medium and long-distance imaging, embedded vision and machine vision inspection scenarios. Its 2592×1944 high resolution can accurately restore details, meeting high-precision acquisition needs; the 115°×81°×61° ultra-wide angle field of view greatly expands single-frame coverage and improves the efficiency of large-scene observation. Paired with 2.6-5mm focal length and F2.65 aperture, it ensures clear imaging and adapts to various scenarios. The 50cm~∞ fixed focus design requires no manual adjustment, ensuring stable long-term operation. It supports multiple image output formats such as RAW RGB and YUV, which can flexibly adapt to different back-end processing needs. The PCB onboard structure, combined with stainless steel reinforcement and M12×0.5 lens interface, is structurally sturdy and easy to integrate, complying with RoHS standards. It balances high precision, wide field of view and stability, adapting to various industrial and embedded vision needs.

Features:

  • 5MP High Resolution: 2592×1944 resolution, excellent detail restoration, meeting high-precision image acquisition needs.
  • 115° Ultra-Wide Angle: Wide field of view, expanding single-frame coverage and improving large-scene observation efficiency.
  • Multi-Format Output: Supports multiple image formats, flexibly adapting to different back-end processing needs.
  • Medium & Long-Distance Fixed Focus: 50cm~∞ fixed focus, no adjustment required, ensuring stable long-term operation.

Technical Parameters:

Poduct Name OV5640 DVP Camera Module
Pixel 5MP
Sensor OV5640
Resolution 1600*1200
Brand SincereFirst
FOV D106°*H80°*V60°
Output Format YCbCr4:2:2,RGB565, Raw Bayer
Focus Length 2.15
F.No 2.4
Distortion <-10%
Feature HD Camera Module
Focus Type Fixed Focus
Interface DVP

Applications:

  • Industrial Machine Vision Inspection: Can be used for production line inspection. With its high resolution, it can accurately identify product appearance defects, dimensional deviations and complete positioning.
  • Embedded Intelligent Device Vision: Can be used in robots and self-service terminals. With its ultra-wide angle, it can provide wide-field environmental perception images.
  • Wide-Angle Industrial Monitoring: Can be used in workshops, warehouses, etc. With its ultra-wide angle and high definition, it can achieve large-scale high-definition visual monitoring.
  • Medium & Long-Distance Image Acquisition: Can be used for scenes over 50cm. With its stable fixed focus, it can complete clear and stable image acquisition.

OV5640 CMOS Sensor 5MP HD Image Fixed Focus and Wide Angle DVP Camera Module

Customized Service:

We can customize module shape, module head size, lens holder, imaging direction, VCM, lens, firmware, etc.

OV5640 CMOS Sensor 5MP HD Image Fixed Focus and Wide Angle DVP Camera Module

Why Choose us?

OV5640 CMOS Sensor 5MP HD Image Fixed Focus and Wide Angle DVP Camera Module

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by
our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.

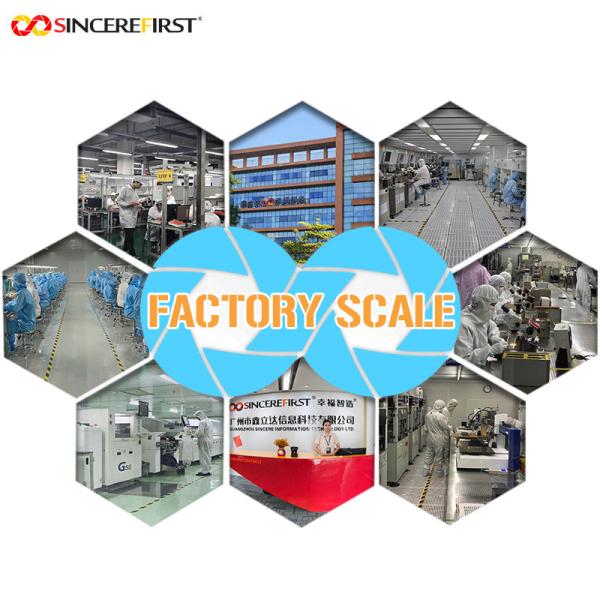

About us:

OV5640 CMOS Sensor 5MP HD Image Fixed Focus and Wide Angle DVP Camera Module

Cooperative Brands & Customers:

OV5640 CMOS Sensor 5MP HD Image Fixed Focus and Wide Angle DVP Camera Module

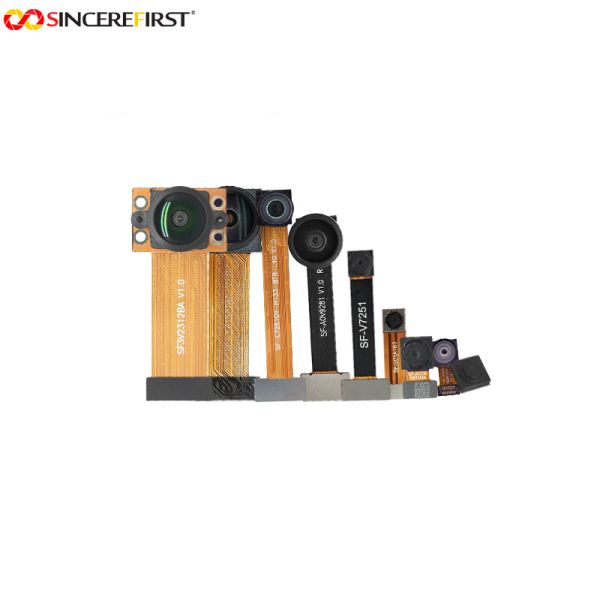

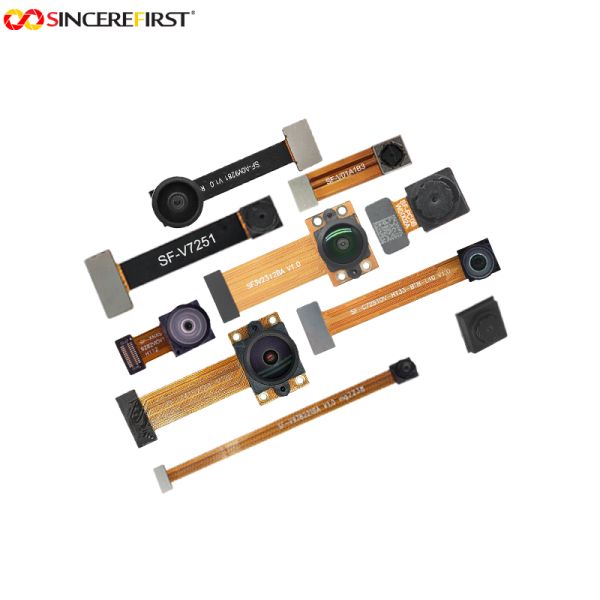

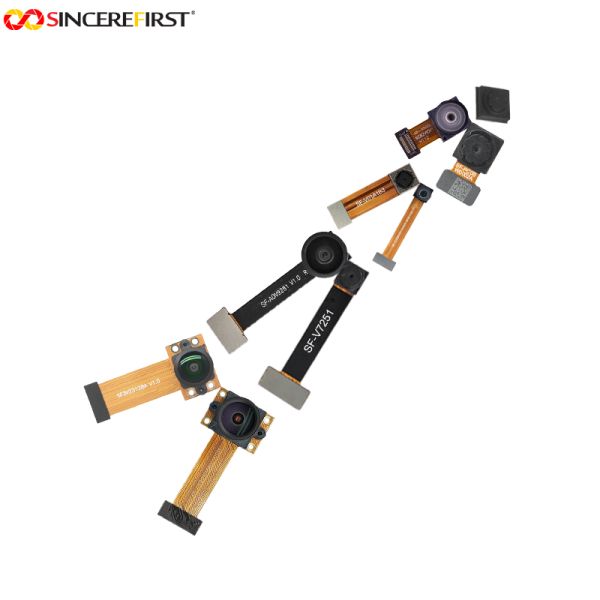

Details Pictures:

OV5640 CMOS Sensor 5MP HD Image Fixed Focus and Wide Angle DVP Camera Module
