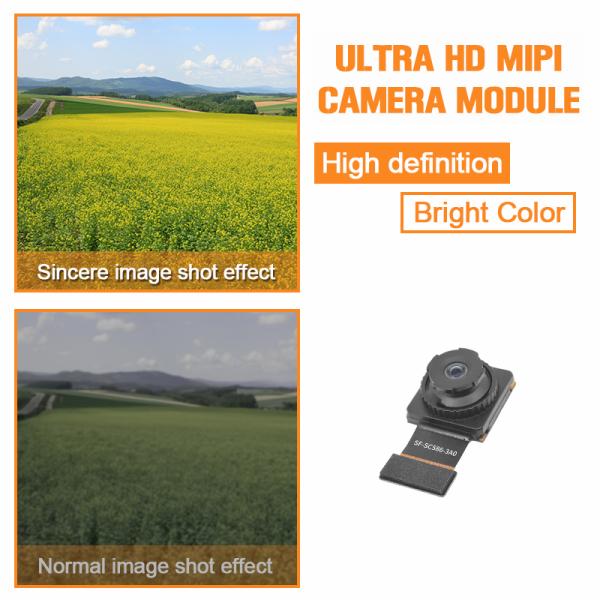

4K UHD Sony IMX586 Image Sensor 48MP FPC Camera Module

Product Description:

This is a 4K UHD Sony IMX586 image sensor 48MP FPC camera module, compact imaging solution specifically designed for wide-area high-definition imaging needs. It is core-equipped with the Sony IMX586 CMOS sensor, and by virtue of the flexible substrate characteristics and high-specification imaging parameters, it can be adapted to various narrow or irregular-shaped installation scenarios. The module features 48MP ultra-high pixel resolution and supports stable output of 4K@30FPS ultra-high-definition videos, meeting the requirements for detailed image recording. With a sensor size of 1/2 inch and a single-pixel specification of 0.8μm x 0.8μm, it also integrates Quad Bayer 4-pixel binning technology, which can dynamically merge pixels into 1.6μm large pixels, balancing high resolution and low-light sensing performance. In terms of functions, it comes standard with High Dynamic Range (HDR) and Phase Detection Autofocus (PDAF), capable of handling complex scenarios with large light-dark contrast and meeting the needs of fast target locking.

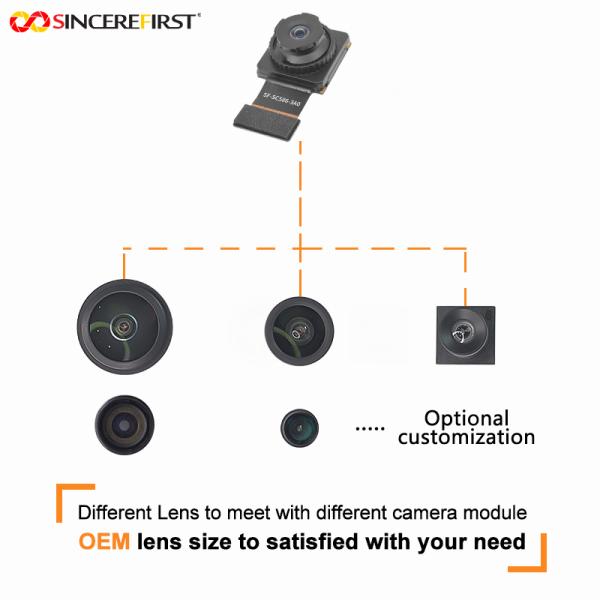

The lens system adopts a 6-element (6P) optical structure design, with an Effective Focal Length (EFL) of 3.574mm and an aperture specification of F2.8±5%. Combined with an ultra-wide field of view (FOV) of 120° diagonally (D120°), 96° horizontally (H96°), and 73.8° vertically (V73.8°), it can achieve wide-area image coverage. Meanwhile, the distortion is controlled within a low range of -14.2%, avoiding stretched and distorted edge images. The focusing method adopts a manual focusing design, suitable for precise parameter setting in fixed scenarios. Data transmission is realized through a universal MIPI CSI-2 interface for high-speed and stable interaction. In the production process, it integrates Surface Mount Technology (SMT, compliant with ROHS) placement process, Chip-on-Board (COB) high-integration process, and Active Alignment (AA) precision calibration process, balancing environmental friendliness, miniaturization, and imaging consistency.

Features:

1. Exceptional Imaging Resolution: The 48MP ultra-high pixels, combined with the 1/2-inch large-format sensor, provide extremely high image resolution. It can capture fine textures and details, offering sufficient room for cropping and zooming in post-processing, and meeting professional-level imaging needs.
2. Intelligent Adaptive Imaging: The Quad Bayer 4-pixel binning technology enables intelligent pixel switching. It outputs 48MP ultra-high-resolution images in strong light environments, and automatically merges pixels into 1.6μm large pixels in low-light conditions, significantly improving light-sensing capability and ensuring high-quality imaging effects under various lighting conditions.
3. Accurate and Fast Focusing System: The Phase Detection Autofocus (PDAF) technology, combined with the manual focusing function, realizes fast tracking and precise focusing of moving objects. Cooperated with the HDR technology, it ensures that images with rich details can still be obtained in high-contrast scenarios.
4. Industrial-Grade Reliable Performance: Manufactured using SMT (ROHS) and COB processes, it ensures optical precision through the AA active alignment process. It has excellent vibration resistance and environmental adaptability, guaranteeing stable operation in various harsh environments.

Technical Parameters:

Applications:

Intelligent Traffic Surveillance: The ultra-wide field of view can cover multiple lanes; the 48MP high pixels support license plate recognition and face capture; the HDR function adapts to backlight environments, providing comprehensive visual data support for intelligent traffic management.

Smart Wearable Devices: With a compact size, it can be easily adapted to small smart devices; the 120° field of view matches the natural field of view of human eyes; the 4K@30FPS video output supports real-time image overlay in AR scenarios; the PDAF focusing can quickly lock onto objects ahead, meeting imaging needs in outdoor mobile scenarios.

Commercial Terminals: It can be installed inside the screen bezel of smart shopping guides and self-service terminals; the 120° field of view covers the user area in front of the screen; the 48MP pixels support gesture recognition; the HDR function copes with complex lighting scenarios in shopping malls, accurately identifying user actions and improving the fluency of terminal interaction.

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
