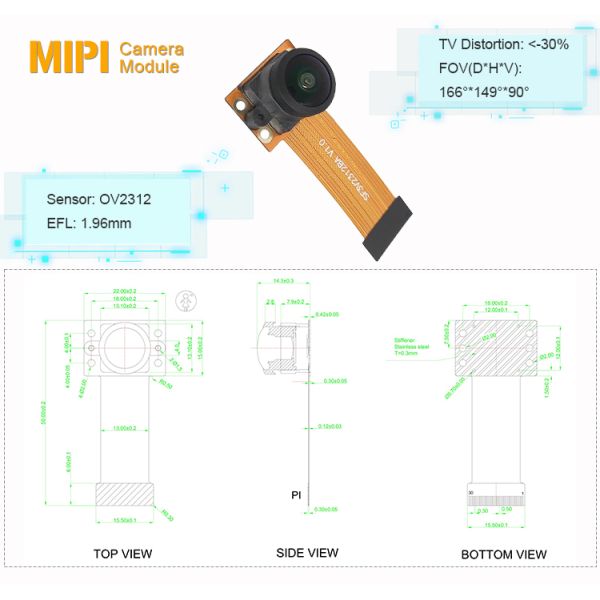

OV2312 Camera Sensor Module 2MP Monochrome Camera Module 1.96mm EFL
OV2312 Camera Sensor Module 2MP Monochrome Camera Module 1.96mm EFL
OV2312 Camera Sensor Module 2MP Monochrome Camera Module 1.96mm EFL
OV2312 Camera Sensor Module 2MP Monochrome Camera Module 1.96mm EFL
OV2312 Camera Sensor Module 2MP Monochrome Camera Module 1.96mm EFL
OV2312 Camera Sensor Module 2MP Monochrome Camera Module 1.96mm EFL
OV2312 Camera Sensor Module 2MP Monochrome Camera Module 1.96mm EFL
OV2312 Camera Sensor Module 2MP Monochrome Camera Module 1.96mm EFL
Specifications
Brand Name :
SINCERE FIRST
Model Number :
SF3V2312BA V1.0
Certification :
CE, FCC, RoHS, REACH, ISO
Place of Origin :
Guangdong , China
MOQ :
5 pcs
Price :
Negotiable
Payment Terms :
L/C, Western Union, T/T, MoneyGram, Paypal and Others
Supply Ability :
350000 pcs / month
Delivery Time :
7 - 15 Work Days
Packaging Details :
Package, Carton Box
Chip Type :
OV2312
Lens Elements :
2G+4P
EFL :
1.96mm
Pixel Array :
1600*1300V
F.No :
1.8
Lens Type :
1/2.9"
View Angle :
D166°，H149°，V90°
Distortion :
＜-30%
AVDD :
2.8V
Focusing Range :
45cm~Infinity
Description

2MP Monochrome CMOS Sensor Omnivision OV2312 Camera Sensor Module

Specificaitons

Chip Type ‎OV2312
Pixel 2MP
CFA (Chroma) Monochrome
Interface DVP
Optical Format 1/2.9"
Shutter Type Global Shutter
Fov 166°
TV Distortion ＜-30%
AVDD 2.8V
DOVDD 1.8V

Description

OV2312 is a 2-megapixel RGB-IR global shutter image sensor that provides a dual-mode sensor that fuses human and machine vision capabilities, allowing designers to address both trends with a single camera (e.g., driver state monitoring (DSM) and video conferencing). It delivers motion-artifact-free images at high resolutions of 1600 x 1300 at 60 fps and 1280 x 720 at 90 fps. It is the automotive industry’s first and smallest-in-its-class 2MP, RGB-IR global shutter image sensor. It has advanced ASIL functional safety, leading near-infrared light performance and low power consumption; and facilitate the lowest total system cost.

Features

◆Sensors
◆Sensor: Global Shutter OV2312 Monochrome
◆Pixel size: 3 µm x 3 µm
◆Active array size: 1600 x 1300
◆Optical Format size: 1/2.9″
◆Maximum image transfer rate: 1600 x 1300: 60 fps
◆Support for image sizes: 1600 x 1300, 1280 x 720, 640 x 480
◆Input clock frequency: 6~27 MHz
◆Max S/N ratio: 37.4 dB
◆Dynamic range: 68 dB
◆Lens
◆Lens Thread: M9 x 0.25P
◆Lens Field of View(FoV): 55°(H)
◆IR Sensitivity: without IR filter, sensitive to IR
◆Camera Module
◆Output interface: 2-lane MIPI
◆Output formats: RAW 8/10 bit
◆Minimum exposure time: 1 row period (11.3us at the resolution of 1600×1300 on Raspberry Pi)

Applicaitons

Augmented and virtual reality
Drones
3D imaging
Machine vision
Industrial bar code scanning
Industrial automation
