Accurate Adjustable 0.1-5mm Gap Ultra-Fine Roll Crusher With ±0.05mm Accuracy
Accurate Adjustable 0.1-5mm Gap Ultra-Fine Roll Crusher With ±0.05mm Accuracy
Accurate Adjustable 0.1-5mm Gap Ultra-Fine Roll Crusher With ±0.05mm Accuracy
Accurate Adjustable 0.1-5mm Gap Ultra-Fine Roll Crusher With ±0.05mm Accuracy
Accurate Adjustable 0.1-5mm Gap Ultra-Fine Roll Crusher With ±0.05mm Accuracy
Accurate Adjustable 0.1-5mm Gap Ultra-Fine Roll Crusher With ±0.05mm Accuracy
Accurate Adjustable 0.1-5mm Gap Ultra-Fine Roll Crusher With ±0.05mm Accuracy
Accurate Adjustable 0.1-5mm Gap Ultra-Fine Roll Crusher With ±0.05mm Accuracy
Accurate Adjustable 0.1-5mm Gap Ultra-Fine Roll Crusher With ±0.05mm Accuracy
Accurate Adjustable 0.1-5mm Gap Ultra-Fine Roll Crusher With ±0.05mm Accuracy
Accurate Adjustable 0.1-5mm Gap Ultra-Fine Roll Crusher With ±0.05mm Accuracy
Accurate Adjustable 0.1-5mm Gap Ultra-Fine Roll Crusher With ±0.05mm Accuracy
Specifications
Brand Name :
BRICTEC
Model Number :
SGS800*800 SGS1000*1200
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Price :
24800-124600 US$
Payment Terms :
L/C, T/T
Delivery Time :
60
Description

Equipment Introduction:

The Ultra-Fine Roll Crusher is a high-efficiency grinding equipment for clay brick production. It utilizes two precision rollers with micron-level gap adjustment to crush raw materials (e.g., clay, shale) into uniform particles of 0.5-3mm, significantly improving the quality of subsequent mixing and extrusion processes.

Accurate Adjustable 0.1-5mm Gap Ultra-Fine Roll Crusher With ±0.05mm Accuracy

Technical Data:

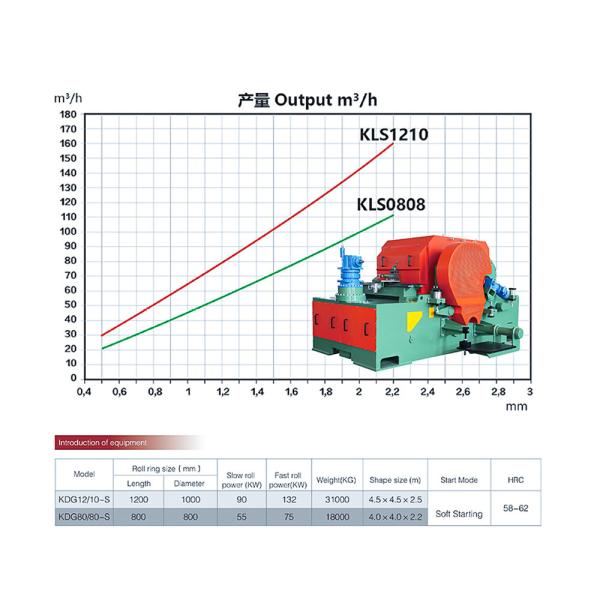

Model Capacity(t/h) Roller size(mm) Input size(mm) Out put size(mm) Dimension(mm) Weight(t) Power(kW)
SGS800*800 30-50 Φ800*800 ≤10 0.8-1.5 4000*4000*2200 18 75+55
SGS1000*1200 40-80 Φ1000*1200 ≤10 0.8-1.5 4500*4800*2500 31 132+90

Accurate Adjustable 0.1-5mm Gap Ultra-Fine Roll Crusher With ±0.05mm Accuracy

Features:

1. Ultra-Fine Crushing: Unique roller surface texture + high-pressure grinding for output fineness ≥0.5mm.

2. Precision Gap Control: Hydraulic/servo system adjusts roller gap (0.1-5mm) with ±0.05mm accuracy.

3. Wear-Resistant Rollers: Tungsten carbide or ceramic-coated rollers, 3x longer lifespan than standard alloy rollers.

4. Fully Enclosed Design: Dust extraction ports comply with environmental standards.

Accurate Adjustable 0.1-5mm Gap Ultra-Fine Roll Crusher With ±0.05mm Accuracy

Function:

Replaces traditional two-stage crushing (jaw crusher + hammer crusher) with single-pass ultra-fine grinding, preventing over-crushing and ensuring optimal clay gradation to minimize brick drying cracks.

Advantages:

1. 30% Energy Saving: Power consumption ≤3.5kWh per ton, lower than traditional crushing lines.
2. Uniform Output: 90% particles in 0.5-2mm range, reducing extruder jamming risks.
3. Low Maintenance: Modular roller design allows replacement within 2 hours.

Accurate Adjustable 0.1-5mm Gap Ultra-Fine Roll Crusher With ±0.05mm Accuracy

Key Technical Terms:

Ultra-Fine Roll Crusher

Roller Gap Adjustment

Tungsten Carbide Roller Sleeve

Particle Gradation

Accurate Adjustable 0.1-5mm Gap Ultra-Fine Roll Crusher With ±0.05mm Accuracy
