Industrial Double Toothed Roll Crusher with Wear-Resistant Alloy Teeth for Refractory Material Processing
Industrial Double Toothed Roll Crusher with Wear-Resistant Alloy Teeth for Refractory Material Processing
Industrial Double Toothed Roll Crusher with Wear-Resistant Alloy Teeth for Refractory Material Processing
Industrial Double Toothed Roll Crusher with Wear-Resistant Alloy Teeth for Refractory Material Processing
Industrial Double Toothed Roll Crusher with Wear-Resistant Alloy Teeth for Refractory Material Processing
Industrial Double Toothed Roll Crusher with Wear-Resistant Alloy Teeth for Refractory Material Processing
Industrial Double Toothed Roll Crusher with Wear-Resistant Alloy Teeth for Refractory Material Processing
Industrial Double Toothed Roll Crusher with Wear-Resistant Alloy Teeth for Refractory Material Processing
Industrial Double Toothed Roll Crusher with Wear-Resistant Alloy Teeth for Refractory Material Processing
Industrial Double Toothed Roll Crusher with Wear-Resistant Alloy Teeth for Refractory Material Processing
Industrial Double Toothed Roll Crusher with Wear-Resistant Alloy Teeth for Refractory Material Processing
Industrial Double Toothed Roll Crusher with Wear-Resistant Alloy Teeth for Refractory Material Processing
Specifications
Brand Name :
BRICTEC
Model Number :
CGP450/1000 CGP500/1400 CGP600
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Price :
47700-69600 US$
Payment Terms :
L/C,T/T,D/A,D/P,Western Union,MoneyGram
Delivery Time :
60 days
Description

Equipment Introduction:

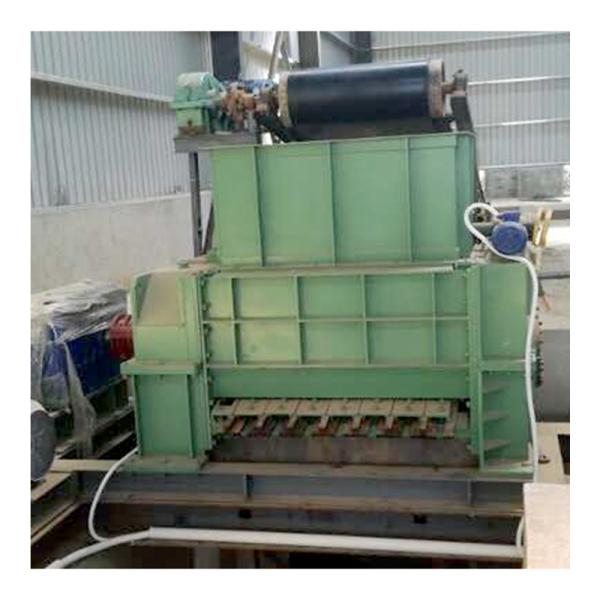

The Double Toothed Roll Crusher is a core equipment in clay brick production for raw material pre-processing. It utilizes two counter-rotating toothed rollers to shear and crush materials (e.g., clay, shale, coal gangue) into 3-10mm particles, ensuring optimal sizing for mixing and extrusion processes.

Industrial Double Toothed Roll Crusher with Wear-Resistant Alloy Teeth for Refractory Material Processing

Technical Data:

Model Capacity input port size Gear Roller Specifications Roller gap Weight

Dimension

 Power
CGP450/1000 35-40 m³/h 1000*800 mm 360 mm 25-35 mm 8.5 t 3000*2100*1900

45
CGP500/1400 40-65 m³/h 1400*1000 mm

400 mm

 25-35 mm 12 t 3800*2500*2300 90
CGP600 55-80 m³/h 1500*1000 mm 540 mm 25-35 mm 15 t 4300*2700*2500

90/3

Industrial Double Toothed Roll Crusher with Wear-Resistant Alloy Teeth for Refractory Material Processing

Features:

1. Toothed Roll Design: Wear-resistant alloy teeth enable combined shearing and crushing.

2. Adjustable Gap: Hydraulic/mechanical gap adjustment (1-20mm) for precise output sizing.

3. Overload Protection: Hydraulic cushioning against foreign objects (e.g., metal scraps).

4. Modular Tooth Segments: Individual teeth replacement reduces maintenance costs.

Industrial Double Toothed Roll Crusher with Wear-Resistant Alloy Teeth for Refractory Material Processing

Function:

Breaks bulk clay or hard materials (e.g., coal gangue) into uniform particles, preventing downstream issues like extruder jamming or brick cracking caused by uneven sizing.

Advantages:

1. Energy-Efficient: 30-40% lower power consumption vs jaw crushers.
2. Low Over-Crushing: Toothed rollers minimize fines, increasing clay utilization by 15%.
3. High Adaptability: Handles wet materials (≤25% moisture) or impure raw mixes.

Industrial Double Toothed Roll Crusher with Wear-Resistant Alloy Teeth for Refractory Material Processing

Technical Terms:

Double Toothed Roll Crusher

Roll Gap Adjustment

Overload Protection

Wear-Resistant Alloy Teeth

Industrial Double Toothed Roll Crusher with Wear-Resistant Alloy Teeth for Refractory Material Processing

Industrial Double Toothed Roll Crusher with Wear-Resistant Alloy Teeth for Refractory Material Processing
