Specifications
Brand Name :
BRICTEC
Model Number :
SJ3600 SJ4000 SJ4500
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Price :
13800-49000 US$
Payment Terms :
L/C,T/T,D/A,D/P,Western Union,MoneyGram
Delivery Time :
60
Description

Equipment Introduction:

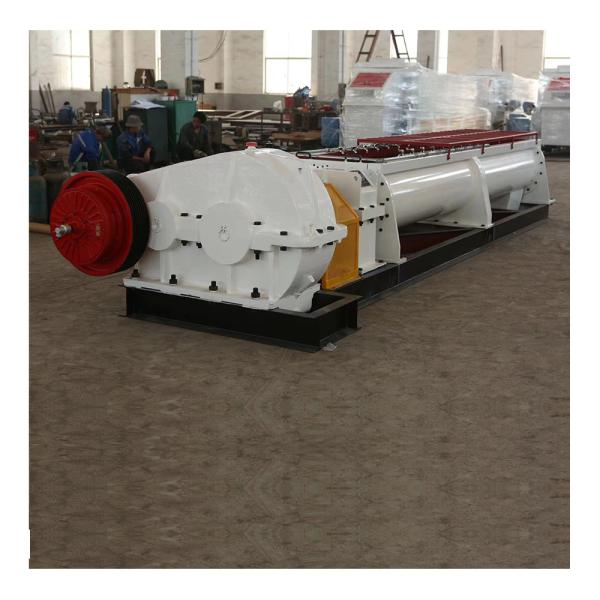

The Twin-Shaft Mixer is a core mixing equipment in clay brick production. It utilizes two parallel shafts with paddles (or blades) to homogenize raw materials (e.g., clay, coal gangue, water). Designed for high-plasticity materials, it ensures uniform mixing for subsequent extrusion molding.

High Efficiency Twin-Shaft Mixer with Counter-Rotating Shafts and Adjustable Speed for Refractory Materials

Technical Data:

Model

Capacity

Length of Mixing Chamber

Mixing Shaft Center Distance

Weight

Dimension

 Power

SJ3600

15-25 m³/h

3600 mm

360 mm

5.5 t

5200*2400*900

37

SJ4000

30-40 m³/h

4000 mm

400 mm

7.5 t

 6200*2800*1100

55

SJ4500

50-80 m³/h

4500 mm

540 mm

11.5 t

 7000*3400*1600

90/110

High Efficiency Twin-Shaft Mixer with Counter-Rotating Shafts and Adjustable Speed for Refractory Materials

Features:

1. Counter-Rotating Shafts: Two shafts rotate oppositely for intense shearing and convective mixing.

2. Adjustable Speed: RPM typically 15-30, adaptable to material plasticity.

3. Wear-Resistant: Paddles and liners made of high-chromium alloy or NM360 steel.

4. Sealed Design: Dust-proof and leak-proof, minimizing clay adhesion.

Function:

Mixes clay, lean materials (e.g., coal gangue), and water into a uniform plastic state, providing homogeneous material for extrusion. Critical for brick strength and kiln stability.

Advantages:

1. Mixing uniformity >95%, far superior to single-shaft mixers.
2. No jamming even with high-viscosity materials.
3. Easy maintenance with replaceable paddles.

High Efficiency Twin-Shaft Mixer with Counter-Rotating Shafts and Adjustable Speed for Refractory Materials

The mixer focuses solely on blending, while the mixer-extruder combines mixing and extrusion, ideal for compact production lines.

High Efficiency Twin-Shaft Mixer with Counter-Rotating Shafts and Adjustable Speed for Refractory Materials

Key Technical Terms:

Mixer-Extruder

Intensive Mixing

High-Chromium Alloy Paddles

High Efficiency Twin-Shaft Mixer with Counter-Rotating Shafts and Adjustable Speed for Refractory Materials

High Efficiency Twin-Shaft Mixer with Counter-Rotating Shafts and Adjustable Speed for Refractory Materials

High Efficiency Twin-Shaft Mixer with Counter-Rotating Shafts and Adjustable Speed for Refractory Materials
