Precision Tapped Strap Clamp for Heavy Duty CNC Machining Milling Applications
Precision Tapped Strap Clamp for Heavy Duty CNC Machining Milling Applications
Specifications
Brand Name :
ADJIG
Model Number :
CP04
Place of Origin :
Chongqing, China
MOQ :
5
Payment Terms :
L/C,T/T
Supply Ability :
Less than 20 pieces, shipped within 10 days. More than 20 items will be shipped within 15-20 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/Wooden crate
Price :
42-99 USD per item
Model :
CP04
Material :
S45C
Heat Treatment :
HRC 32°-38°
Surface Finish :
Blackened
Description

Precision Tapped Strap Clamp for Heavy Duty CNC Machining Milling Applications


Material: S45C
Heat Treatment: HRC 32°-38°
Surface Finish: Blackened
Advantages: Easy disassembly and assembly; nuts do not need to be fully removed.


Engineered for the most demanding workshops, this Precision Tapped Strap Clamp delivers unmatched security and versatility for heavy-duty CNC machining and milling. Its integrated, precision-tapped holes allow for direct mounting of studs and accessories, enabling fast, rigid, and highly customizable setups. Forged from high-strength steel and heat-treated for maximum durability, it effortlessly withstands extreme clamping forces without flexing, eliminating vibration and ensuring part stability. The low-profile design maximizes tool access while the strap accommodates various workpiece heights. This essential clamp guarantees precise, repeatable workholding, drastically reducing setup time and safeguarding your machining accuracy for flawless results.

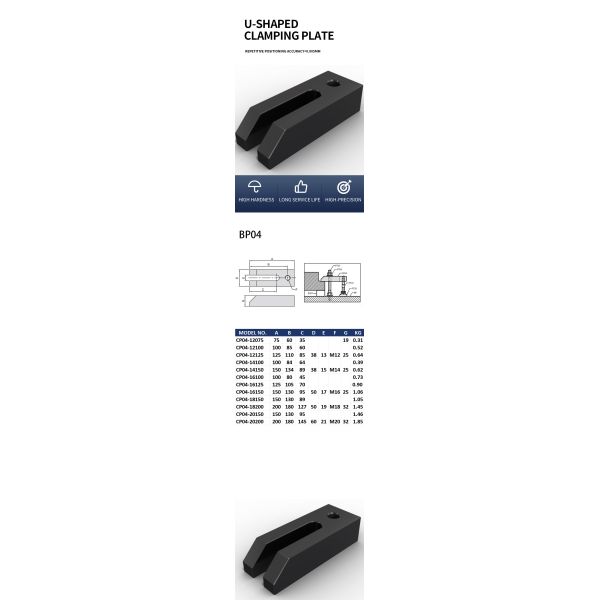

Model No. A B C D E F G Weight(kg)
CP04-12075 75 60 35 38 13 M12 19 0.31
CP04-12100 100 85 60 25 0.52
CP04-12125 125 110 85 0.62
CP04-14100 100 84 64 38 15 M14 25 0.39
CP04-14150 150 134 89 0.62
CP04-16100 100 80 45 50 17 M16 25 0.73
CP04-16125 125 105 70 0.9
CP04-16150 150 130 95 1.06
CP04-18150 150 130 89 50 19 M18 32 1.05
CP04-18200 200 180 127 1.45
CP04-20150 150 130 95 60 21 M20 32 1.46
CP04-20200 200 180 145 1.85
