Swing Clamp CP08 Hook Type Fixture Hook Clamps For Easy Loading When Top Clamping
Swing Clamp CP08 Hook Type Fixture Hook Clamps For Easy Loading When Top Clamping
Specifications
Brand Name :
ADJIG
Model Number :
CP08
Place of Origin :
Chongqing, China
MOQ :
3
Price :
30-42 USD per item
Payment Terms :
T/T,L/C
Supply Ability :
Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Material :
S45C
Heat treatment :
HRC32~38
Usage :
Clamping and securing workpieces
Manufacturer :
ADJIG
Compatibility :
Fits most standard fixtures
Mounting Type :
Bolt-on
Description

Swing Clamp CP08 Hook Type Fixture Hook Clamps For Easy Loading When Top Clamping


Swing clamps allow the Workholding to be moved out of the way for Easy Loading


Ground and Threaded Toe allows for use of Inserts


Fixed on the base plate or pedestal, used for clamping workpieces.


Easy disassembly and assembly of workpieces, the pressure plate part can rotate, and the upper and lower workpieces are not interfered with.


Material: SCM-4



CP08 Swing clamps are useful for supplying a good amount of holding force. From a clamp using a small amount of surface area. Like most of Leave's components it can be used well with the rest of the fixturing components and base plates. Swing clamps allow for the workholding to be swung out the way to allow for easy loading of components.

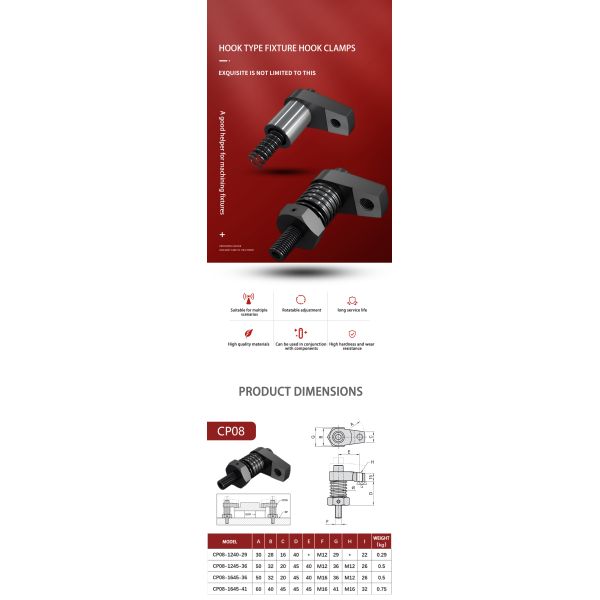

Model A B C D E F G H I

weight

(kg)
CP08-1240-29 30 28 16 40 * M12 29 * 22 0.29
CP08-1245-36 50 32 20 45 40 M12 36 M12 26 0.5
CP08-1645-36 50 32 20 45 40 M16 36 M12 26 0.5
CP08-1645-41 60 40 45 45 45 M16 41 M16 32 0.75
