Adjustable Step Block for Secure CNC Workholding Machining Fixture Setups
Adjustable Step Block for Secure CNC Workholding Machining Fixture Setups
Specifications
Brand Name :
ADJIG
Model Number :
SU25
Place of Origin :
Chongqing, China
MOQ :
5
Payment Terms :
L/C,T/T
Supply Ability :
Less than 20 pieces, shipped within 10 days. More than 20 items will be shipped within 15-20 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/Wooden crate
Price :
28-98 USD per item
Material :
S45C
Surface :
Blackened finish
Application :
For use with CP25
Description

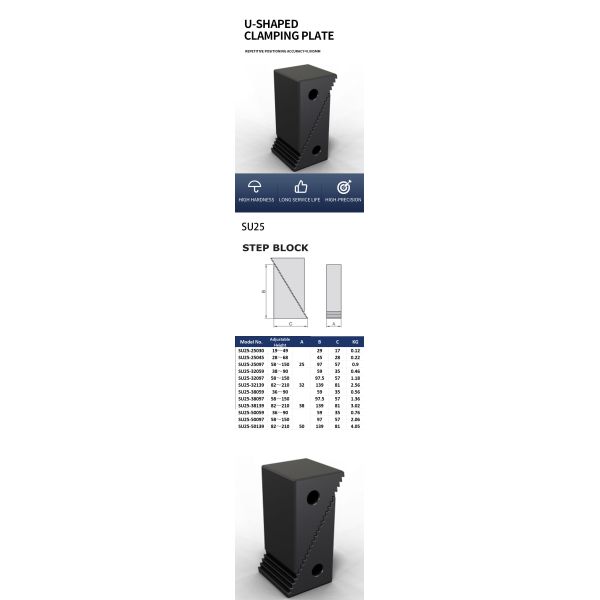

Adjustable Step Block for Secure CNC Workholding Machining Fixture Setups


Material: S45C
Surface: Blackened finish
Application: For use with CP25


Achieve unparalleled stability and versatility in your machining setups with this Adjustable Step Block. Crafted from high-strength hardened steel, its precision-machined step-design provides secure, multi-level support for workpieces of varying heights. This essential fixture component seamlessly integrates with standard clamps and T-slots, enabling you to quickly construct rigid, vibration-free workholding solutions. Ideal for milling, drilling, and welding applications, it eliminates costly deflection, ensures machining accuracy, and dramatically reduces setup time. A fundamental, durable tool for any serious machinist demanding reliability and precision from their shop equipment.


Model No. Adjustable
Height Range		 A B C KG
SU25-25030 19～49 25 29 17 0.12
SU25-25045 28～68 45 28 0.22
SU25-25097 58～150 97 57 0.9
SU25-32059 38～90 32 59 35 0.46
SU25-32097 58～150 97.5 57 1.18
SU25-32139 82～210 139 81 2.56
SU25-38059 36～90 38 59 35 0.56
SU25-38097 58～150 97.5 57 1.36
SU25-38139 82～210 139 81 3.02
SU25-50059 36～90 50 59 35 0.76
SU25-50097 58～150 97 57 2.06
SU25-50139 82～210 139 81 4.05
