High Precision Pillow Block Shock Absorbing Auxiliary Fixture Support Components
High Precision Pillow Block Shock Absorbing Auxiliary Fixture Support Components
High Precision Pillow Block Shock Absorbing Auxiliary Fixture Support Components
High Precision Pillow Block Shock Absorbing Auxiliary Fixture Support Components
Specifications
Brand Name :
ADJIG
Model Number :
SU18A-3655
Place of Origin :
Chongqing, China
MOQ :
5
Price :
63-70 USD per item
Payment Terms :
T/T,L/C
Supply Ability :
Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Weight :
0.43kg
Material :
S45C
Heat treatment :
HRC38°~42°
Surface Finish :
blackening treatment
Application :
Support workpieces
Warranty :
1 year limited warranty
Type :
Pillow Block
Description

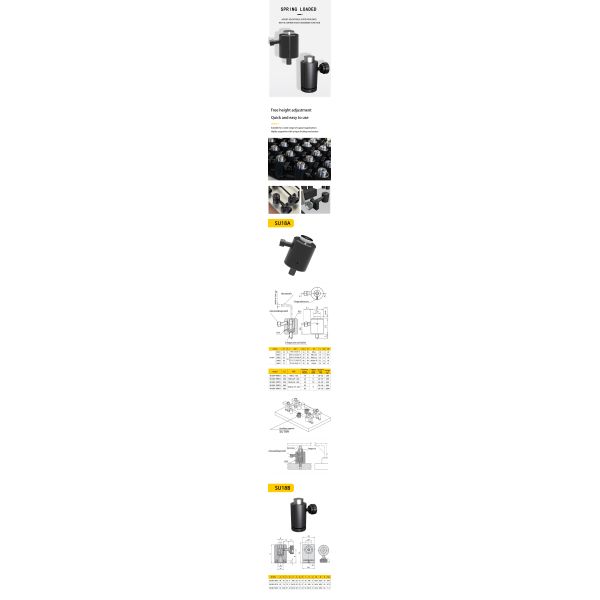

High-Precision Pillow Block for Shock-absorbing Auxiliary Support Component

Support for over hanging workpieces

Spring loaded for fast adjustment

Shock resistant during machining

Heat treated to HRC 38 - 42

This support jack features a spring loaded pluger on top and a threaded adjuster on the bottom. It is designed to support over hanging workpieces but can be used anywhere that adjustable workpiece support is required. The locking screw operates against a tapered surface to prevent push-back under load and the plunger has a threaded hole for the attachment of additional support elements like serrated pads or swivelling ball ends.

According to the height of the workpiece, the support height will automatically adjust after the bolt is loosened, and it has shockproof function during processing

MODEL A B C D L F G H J K L M N R KG
SU18B-3655 36 61 55 8 M8 20 17 14 36 M6 3 M20 M10 40 0.43
SU18B-4270 42 79 70 9 M10 25 25 17 42 M8 4 M24 M12 50 0.73
SU18B-5085 50 100 87 10 M12 30 27 20 50 M10 5 M30 M16 62 1.3
