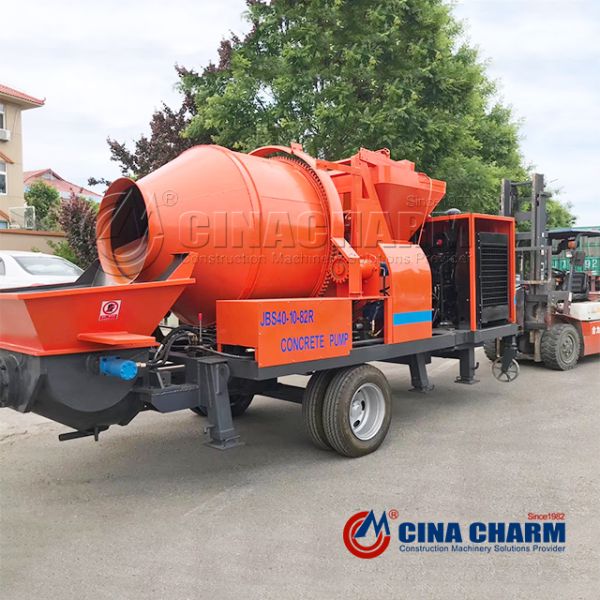

JBS40 Diesel Concrete Pump 45kw Ready Mix Concrete Mixer Pump
JBS40 Diesel Concrete Pump 45kw Ready Mix Concrete Mixer Pump
JBS40 Diesel Concrete Pump 45kw Ready Mix Concrete Mixer Pump
JBS40 Diesel Concrete Pump 45kw Ready Mix Concrete Mixer Pump
Specifications
Brand Name :
CINACHARM
Model Number :
JBS40
Certification :
CE ISO BV SGS
Place of Origin :
Henan province, China
MOQ :
1 set
Price :
19,700 USD/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
10-15 days
Packaging Details :
China standard package
Product name :
Diesel concrete pump
Weight :
5200kg
Dimension(L*W*H) :
5800*2300*3600mm
Warranty :
1 Year
Productivity :
22M³/H
Pressure :
10Mpa
Model :
JBS40
Motor Power :
45kw
Power Type :
Electric
Condition :
New
Description

Diesel concrete pump JBS40 45kw ready mix concrete mixer pump

Product description of diesel concrete pump:

Hoisting bucket type concrete mixer pump is our patented product in 2008. It combines concrete mixer and concrete pump to achieve the integration of pumping station.

It is most suitable for residential and commercial buildings up to 30 stories, small bridges, reservoirs, power stations and communications, where sites are scattered and need to be mixed in place.

It has the advantages of speed, flexibility, ease of movement, quickness and labor saving.

Main features of diesel concrete pump:

1. Mixing and conveying are ideally combined to save weight and transport space of the frame.

2. High working efficiency.

3. Save labor and reduce labor intensity.

4. Small capacity, taking into account the capacity of the rural grid.

5. Simple operation, easy to use.

6. Double-cylinder hydraulic pump system, capable of conveying crushed concrete, stable operation, safe and reliable.

7. Long distance transportation.

Parameters of diesel concrete pump:

Items Unit JBS30 JBS40
Max Theoretical Conveying Capacity m3/h 30 40
Max Exit Pressure M pa 10 11
Concrete Cylinder bore * stroke mm 140*845 160*1200
Main Oil Cylinder bore * stroke mm 80/55*845 100/70*1200
Hydraulic Oil Tank Volume L 350 350
Exit Diameter mm 100 150
Conveying Pipe Inner Diameter mm 100 125
Motor Power KW 47.55 55.75
MaxAggregate Size mm 30 40
Max Horizontal Conveying Distance M 500 600
Max Vertical Conveying Distance M 120 150
Mixer Model JZC350 JZC350
Input Volume L 560 560
Output Volume L 350 350
Drum Diameter mm 1440 1440
Drum Rotary Speed(without load) rpm 18 18
Outline Dimension (L*W*H) mm 4200*2300*2600 4200*2300*2600

Our services:

1. Installation, commissioning, operator training.

2. Maintenance.

A: In training your operators, our engineers will give them advice on how to operate the machine correctly.

B: We will provide you with an operation manual to help you operate the machine correctly, it will also help you solve common problems.

3. The supply of some documents required for customs clearance, such as commercial invoice, packing list, certificate of origin, etc..

4. Spare parts supply.
