20m3/H concrete pump trailer Diesel Engine Concrete Line Pump
20m3/H concrete pump trailer Diesel Engine Concrete Line Pump
20m3/H concrete pump trailer Diesel Engine Concrete Line Pump
20m3/H concrete pump trailer Diesel Engine Concrete Line Pump
20m3/H concrete pump trailer Diesel Engine Concrete Line Pump
20m3/H concrete pump trailer Diesel Engine Concrete Line Pump
20m3/H concrete pump trailer Diesel Engine Concrete Line Pump
20m3/H concrete pump trailer Diesel Engine Concrete Line Pump
Specifications
Brand Name :
CINACHARM
Model Number :
HBTS80-16-145R
Certification :
CE ISO SGS BV
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 Set/Sets per Month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing
Dimension(L*W*H) :
6000*2160*2600mm
Warranty :
1 Year
Power Type :
Diesel
Application :
Construction Engineering
Weight :
6480KG
Condition :
New
Color and logo :
Customers' Requirement
Productivity :
30
Core Components :
Motor, Pump
Pumping system :
32Mpa
Description

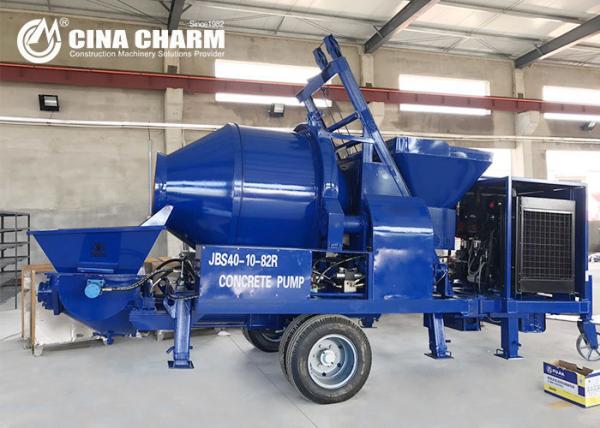

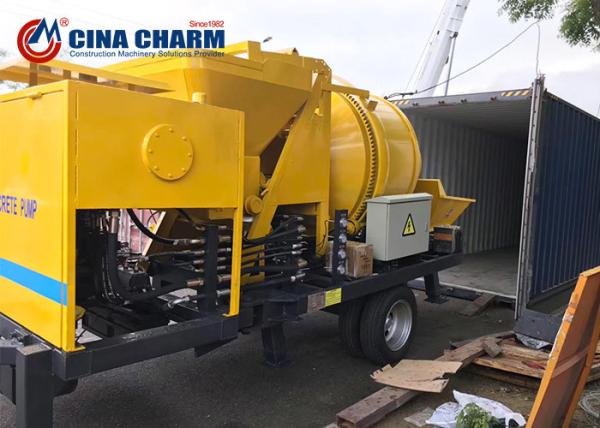

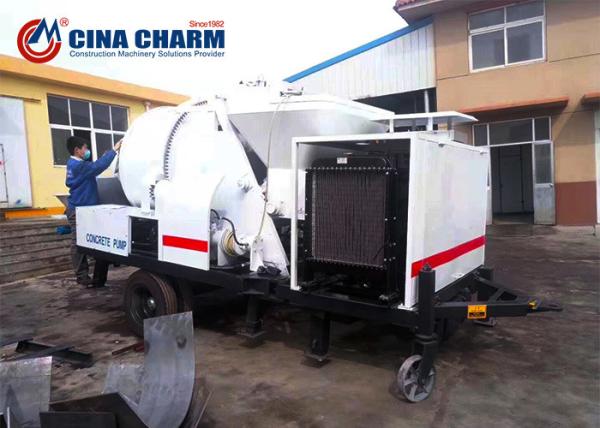

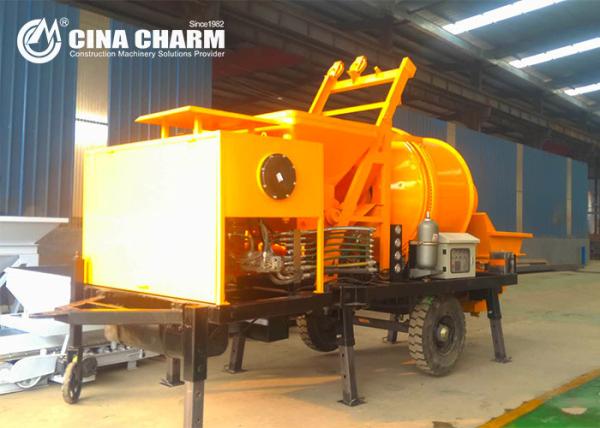

20m3/h diesel engine concrete line pump, trailer mounted concrete pump

1. Concrete pump is a kind of composite pumping requirements of concrete pump, through the horizontal or vertical installation of pipelines, the scene of the continuous conveying to the pouring fine stone concrete conveying equipment, widely used in the second post filling, floor heating engineering, roofing, wall of high-rise building, reservoir and hydropower station, port, wharf, basic processing soft foundation reinforcement grouting subway tunnel backfill grouting bolt support in mine construction.
2. Special hydraulic system with double pumps and double circuits: compared with single pump double circuits, the pumping system and distributing system are driven by two independent pumps that allow a more stable oil flow rate to the pumping unit.
3. Intelligent control system: advanced technology, easy operation and high reliability electrical system.
4. Hopper: High Suction Capacity due to Large Angle Fluent Hopper Design with less feed accumulation area. S valve: well designed S valve ensures the smooth flow of concrete.

5. Rapid concrete piston substitution: the pistons can be changed easily by a single operator without any special tools in 15minutes. The hydraulic cylinder has an extra stroke to allow the piston to extend from the concrete cylinder
20m3/H concrete pump trailer Diesel Engine Concrete Line Pump

concrete line pump diesel also called trailer mounted concrete pump or concrete trailer pump, is the kind of concrete pump mounted on the moveable trailer to to convey concrete to hard to access flexibly. MINLE brand new generation concrete pump trailer is specially designed and engineered with latest differential pressure induction control technology to keep reliability, simplify and efficiency.

Item HBTS80-16-145R concrete mixer pump
Max.theo.concrete output 80
Marking Type New product 2020
Outlet diameter 200mm
Port: Main port in China
Lead Time:
Quantity(Stes) 1-1 >1
Est.Time(days) 10 To be negotiated

Product Application

best price concrete trailer pump conveying concrete equipment
Concrete trailer pump is a set of mechanical, electrical and hydraulic technology as one, with reliable performance of smooth operation and strong pumping capability. Reliability and stability is guaranteed by automatic engine regulation.
1) Convey floor heating lightweight foamed cement, mortar, fine aggregate concrete.
2) Convey all kinds of engineering construction in the plain concrete, fiber concrete.
3) Conveying or injection of refractory and thermal insulation material;
4).Conveying or jet of greening soil on the construction of ecological environment;
5). Conveying or injection of plain concrete and fiber concrete for all kinds of engineering construction.

20m3/H concrete pump trailer Diesel Engine Concrete Line Pump
