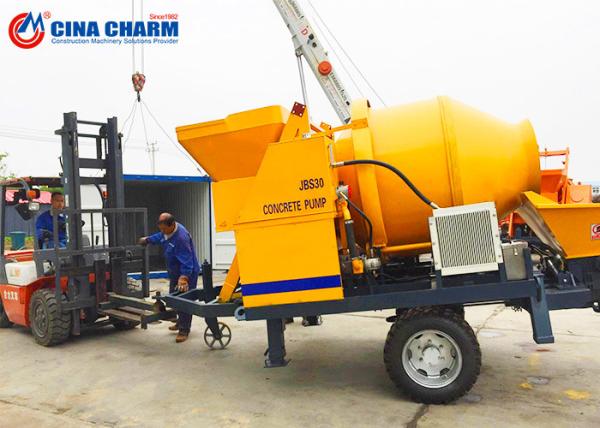

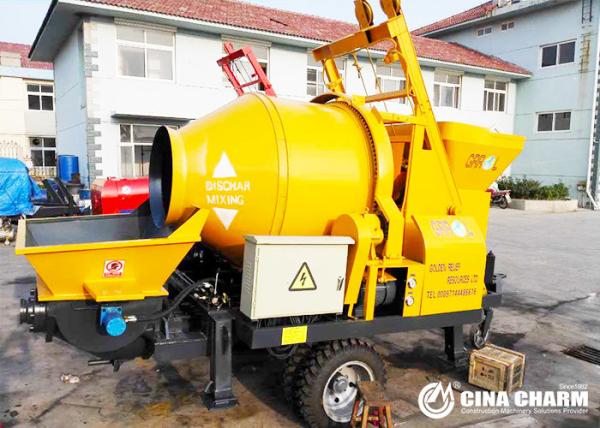

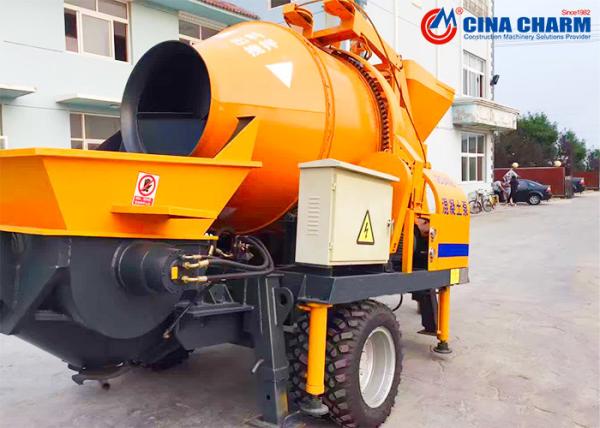

JBS30 Electric concrete mixer pump Concrete Mixer Pump With High Capacity

Concrete pump is a kind of composite pumping requirements of concrete pump, through the horizontal or vertical installation of pipelines, the scene of the continuous conveying to the pouring fine stone concrete conveying equipment, widely used in the second post filling, floor heating engineering, roofing, wall of high-rise building, reservoir and hydropower station, port, wharf, basic processing soft foundation reinforcement grouting subway tunnel backfill grouting bolt support in mine construction.

Main Features

1.. CONCRETE PUMP,also called trailer mounted concrete pump or concrete trailer pump, is the kind of small concrete pump mounted on the moveable trailer to to convey concrete to hard to access flexibly.

2. MINLE brand new generation concrete pump trailer is specially designed and engineered with latest differential pressure induction control technology to keep reliability, simplify and efficiency.

3. Our concrete pump trailer main components such as wear plate, piston, cylinder, discharge port and hopper are made with wear resistant high chrome alloy materials, strict welding and heat treatment processes.

4. Our concrete trailer pump is equipped with advanced hydraulic system which can be powered by diesel engine or electric motor for your selection.

5. It features energy saving, large flow, wider adaptability, high efficiency, good wear resistance and easy to operate, it is widely used for concrete pumping in housing building, elevated road, bridge or tunnel construction projects.

Main advantages:

• Hydraulic valves is Beijing Hade(chinese best brand),
• Main pump is Kawasaki Brand
• Sealing American Parker bran
• Hydraulic Hose is Italy Manuali
• electric elements are france Schnider brand,
• PLC Japanese OMRON brand,
• Also the mixer drum made by Q345B strengthened plate (6mm thickness), and pipe by high wear-resistant steel

Mechanical system

• The design of hopper and S valve and so on adopt I－DEAS software to caculate, the hopper and S valve have good rigidity to avoid the phenomenon of hopper distortion and S valve breakage.
• The agitator have unique form, which separates the hydraulic motor from agitator bearing pedestal.At the same time, adopting large displacement motor ensures that the agitator moment is big enough.
• To make sure the pumping is good and declines the phenomenon of pipe jam, the spectacles wear plate and cutting ring should be useed in lower abrasion. Changli’s spectacles wear plate and cutting ring use high wear material, making the components’ life prolonged greatly.

Lubrication system

The hydraulic circuit will take high oil into double distributor,and then the lubricating part can obtain hydraulic oil.It ensures the lubrication of the concrete cylinder’s piston and other parts and prolongs the life of piston and other sealings.
