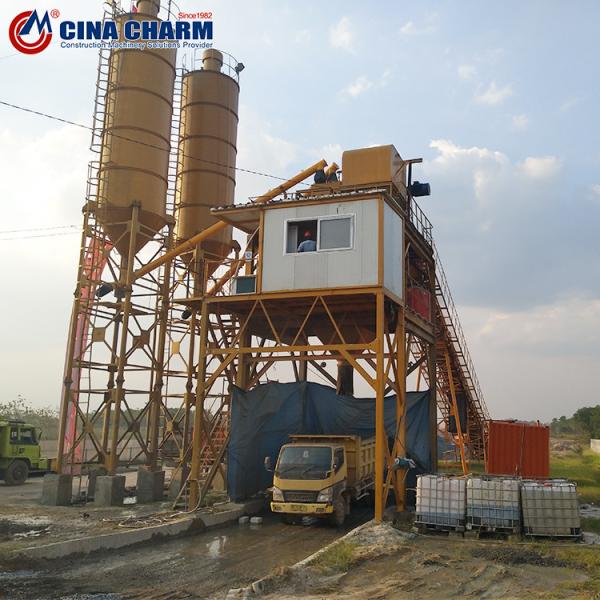

HZS90 90m3/H Ready Mixed Belt Conveyor Concrete Batching Plant
HZS90 90m3/H Ready Mixed Belt Conveyor Concrete Batching Plant
HZS90 90m3/H Ready Mixed Belt Conveyor Concrete Batching Plant
HZS90 90m3/H Ready Mixed Belt Conveyor Concrete Batching Plant
HZS90 90m3/H Ready Mixed Belt Conveyor Concrete Batching Plant
HZS90 90m3/H Ready Mixed Belt Conveyor Concrete Batching Plant
HZS90 90m3/H Ready Mixed Belt Conveyor Concrete Batching Plant
HZS90 90m3/H Ready Mixed Belt Conveyor Concrete Batching Plant
Specifications
Brand Name :
ChangLi
Model Number :
batch plant for sale
Certification :
BV CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
5 sets per week
Delivery Time :
We can delivery the goods within 15 days
Packaging Details :
The motor and main mixer were covered
Feeding Mode :
Belt Convery
Max.Output :
90m3/h
The main mixer :
JS1500 twin shaft concrete mixer
Concrete batching machine :
PLD2400
Discharging Height :
4.1m
Power :
Accordingly
Color :
Cutomer Request
Description

HZS90 90m3/H Ready Mixed Belt Conveyor Concrete Batching Plant

HZS90 concrete mixing plant Introduction:

HZS90 concrete mixing plant is a fixed concrete mixing plant produced by our factory; Fixed concrete mixing equipment can be used in industry, construction, highway, railway, bridge, water conservancy, port and other fields. It is composed of mixing system, weighing system, aggregate lifting system, storage and transportation system, etc. Pneumatic system and control system; Adhering to the concept of "producing high-quality products and serving the world", the factory continues to explore and absorb experience to ensure better products and services; Please feel free to contact our instrument products;
HZS90 90m3/H Ready Mixed Belt Conveyor Concrete Batching Plant
HZS90 concrete mixing plant Paramenters:
Type
HZS90 Concrete Mix Plant
Productivity
90m3/h
Concrete Mixer
JS1500
Concrete Batching Machine
PLD2400
Max. Aggregate Size
80mm
Kinds of Aggregate
4
Aggregate capacity &Accuracy
0~3500KG±2%
Cement capacity & Accuracy
0~1500KG±1%
Water capacity & Accuracy
0~600KG±1%
Additive Capacity & Accuracy
0~50KG±1%
Total weight
118T

Advantages of HZS90 concrete mixing plant:

1. The shaft end of the mixer has a double-layered sealing patent to prevent internal material leakage and dust during operation.
2. The mixer is sprayed with primer, rust protection paint and paint to prevent rust and to prolong the service life of the machine.
3. Before painting, the mixer must be sandblasted to prevent oil, rust and dust from entering the mixer to ensure a good coating effect.
4. The mixing base is supported by an anti-slip plate to facilitate the maintenance of workers and to ensure safety and reliability.
5. The two shafts of the stirrer use drilling techniques to keep the shaft on the same horizontal plane, and both ends of the shaft on the same shaft to make the circle concentric. To prevent a collision of the mixing charm during operation and to prolong the service life of the machine.
6. The mixing cylinder wall has a high manganese lining from Changli, which is easy to dismantle and install. Mangan has hardness and wear resistance, which makes the cylinder more durable. The mixing sheet is also made of manganese alloy to make the blade more durable.
7. CO2-shielded welding is used with high welding resistance, less welding slag and good durability.

HZS90 90m3/H Ready Mixed Belt Conveyor Concrete Batching Plant
Advantages of the batching machine:
1. The machine uses Q235 high quality steel
2. There are two air cylinders on the storage hopper and one air cylinder on the weighing hopper;
3. It can realize the accurate weighing through seperate weighing
