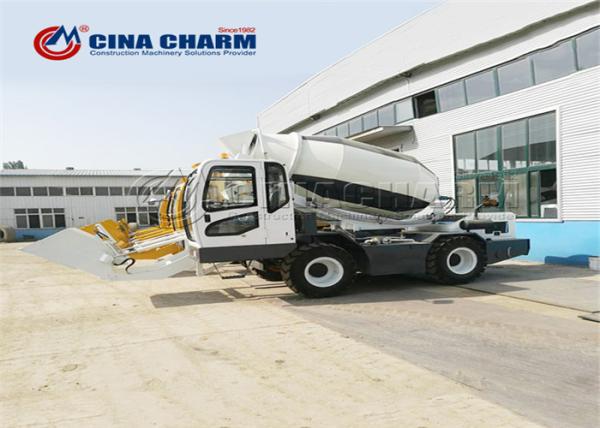

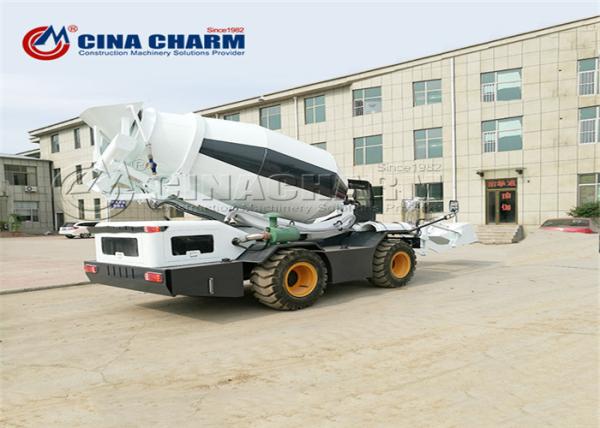

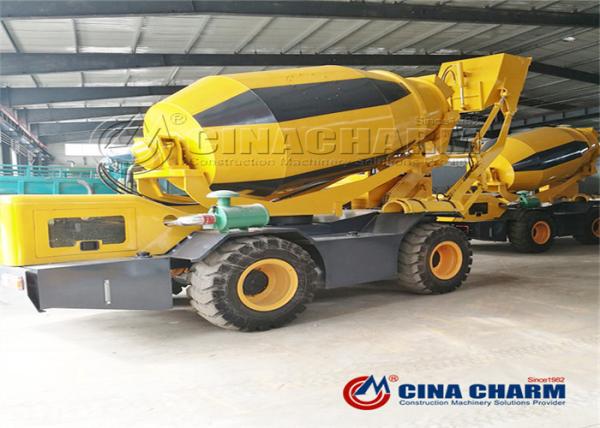

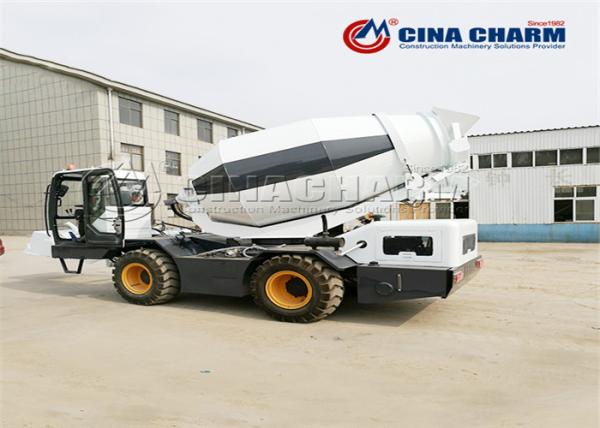

4 Wheel Driver 1.2m3 Self Loading Concrete Mixer Truck
4 Wheel Driver 1.2m3 Self Loading Concrete Mixer Truck
4 Wheel Driver 1.2m3 Self Loading Concrete Mixer Truck
4 Wheel Driver 1.2m3 Self Loading Concrete Mixer Truck
4 Wheel Driver 1.2m3 Self Loading Concrete Mixer Truck
4 Wheel Driver 1.2m3 Self Loading Concrete Mixer Truck
4 Wheel Driver 1.2m3 Self Loading Concrete Mixer Truck
4 Wheel Driver 1.2m3 Self Loading Concrete Mixer Truck
Specifications
Brand Name :
CINACHARM
Model Number :
2.5m3 self loading concrete mixer truck
Certification :
CE ISO BV SGS
Place of Origin :
China
MOQ :
1 set
Price :
15,000 USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
7 working days
Packaging Details :
China Standard Package
Product name :
selfloading concrete mixers
Keywords :
1.2m3 Self Loading Concrete Mixer Truck
Driving type :
4 wheel drive self loading mixer truck
Drum capacity :
2.5m3
Real concrete yield :
1.2m3
Item :
4 wheel driver,2 wheel steering
Color :
Customer's Requirements
Tyre size :
20.5/70-16
Weight system :
automatic weighing
Productivity :
Up to four batches per hour
Material :
Q235
Description

High Performance quality 1.2m3 Self Loading Concrete Mixer Truck

Introduction:

self loading concrete mixer truck is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine. the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site.

4 Wheel Driver 1.2m3 Self Loading Concrete Mixer Truck

This machine unit the function of concrete batching plant and concrete mixer truck, it can load the addreggate, measuring, mixer, discharging and transport together.It can save three workers per day for you, improve the working efficiency, lower the cost and workers wage,they all using diesel water colled 4 cylinder engine, all hydraulic 4*4 drive. with hydraulic water pump, thry all can roatary 270de gree.

4 Wheel Driver 1.2m3 Self Loading Concrete Mixer Truck

Self loading concrete mixer is combine concrete truck mixer with concrete mixer, self loading concrete mixer can automatic feeding, metering, and mixing to discharge, and more. It can realize the transportation and site construction operations, which greatly improves the work efficiency, reduce production cost and time.

Features:

1. The main hydralic components are all imported.

2. Save 5 labours at least every day.

3. Do not electric concrete mixer, save electricity up to 100 degrees every day.

4. Do not need concrete mixer truck anymore.

5. Don not need wheel loader to load material anymore.


Main Parameters of our SFM2.5 self loading mixer truck

No Item Specification
1 Drum capacity 2.5CBM
2 Real concrete yield per batch 1.2 CBM
3 Drum rotation speed 0-16 rpm
4 Productivity Up to four batches per hour
5

Transmission

 Hydraulic
4 wheel driver
6 Tyre size 20.5/70-16
7 Engine YN
8 Model 27GBZ
Diesel Water-cooled
55kw
9 Speed Range F1:1-8 KM/H
F2:8-25 KM/H
10 JOYMIX One joystick control main functions
11 Weight 5200kg
12 Overall dimension(L*W*H) 6750×2350×2450 mm

Pictures
