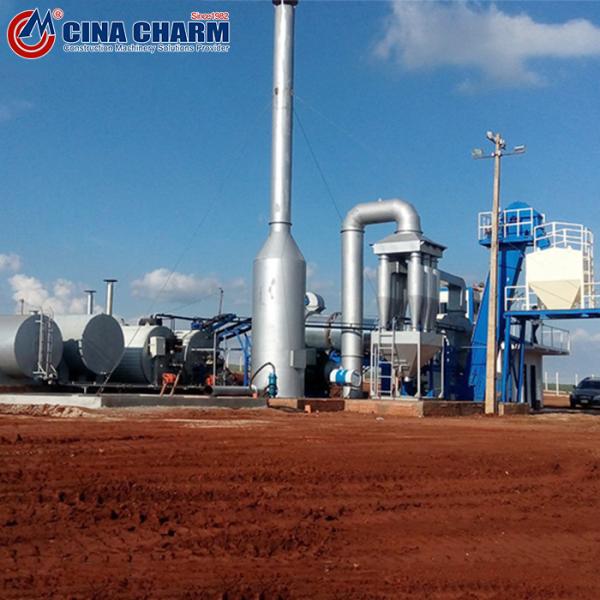

Continuous Asphalt Plant 40tons Per Hour Asphalt Drum Mix Plant

Asphalt Drum Mixing Plant Of Features

1.Four-wheel friction drive, with smooth transmission,low noise and long service life.
2.The drive reducer adopts hard tooth surface reductor, with large load capacity and impact resistance.
3.The specially designed “butterfly” elastic connection plate will be more uniformly forced after the drum heated expansion.It completely solved the elastic plate heat cracking problem.
4.The roller and roller carrier shaft using high quality alloy steel forging with long service life.
5.The external drum using high quality thermal insulation material plus stainless steel mask packaging,with favorable heat preservation performance and neat and beautiful appearance.
6.The drum body using heat boiler plate.
7.The internal blade also uses boiler plate and connects with bolt, with long service life and fast and convenient replacement.
8.The dry drum heat the aggregate to a certain temperature through counterflow heating(the control system would adjust the flame of burner automatically), as the drum moved, aggregate in the drum were repeatedly elevate and fall down by the plate, formed aggregate curtain which enhanced heat exchange effect.

Production Process:
1. After the cold aggregate is metered and proportioned by the aggregate feeder once, it enters the drying drum through the inclined belt conveyor to dry and heat the cold aggregate; the heated tail gas enters the dust removal system;
2. The hot aggregate enters into the vibration screening system through the hot aggregate elevator, and the screened hot aggregate enters into each bin according to the specifications for temporary storage;
3. The asphalt is heated to the required temperature and temporarily stored in the asphalt tank;
4. The mineral powder is added manually or temporarily stored in the powder bin;
5. The temporary hot aggregate, asphalt and powder are metered by the metering system and then enter the agitator, and are forced to mix in the agitator to become qualified finished materials;
6 The finished materials are discharged to the transport vehicle through the discharging machine and transported to the construction site.

Technical parameters of Continuous Asphalt Plant 20-80t/H Per Hour Asphalt Drum Mix Plant

Why Do You Choose Us?
Our services department could provide professional after-sales service for the customers:
1.One year warranty,
2.Turn-key project is available according to customer requests,
3.Assist customer for work site layout and planning,
4.Guide customer for equipment installation and commissioning,training for operator and maintenance persons,
5.Provide life-time service,
6.Provide original spare parts,
7.Provide specialized service like plant transferring,upgrading and work site planning etc.
