Modular Structure Asphalt Mixing Plant , Hot Mix Plant For Road Construction
Modular Structure Asphalt Mixing Plant , Hot Mix Plant For Road Construction
Modular Structure Asphalt Mixing Plant , Hot Mix Plant For Road Construction
Modular Structure Asphalt Mixing Plant , Hot Mix Plant For Road Construction
Modular Structure Asphalt Mixing Plant , Hot Mix Plant For Road Construction
Modular Structure Asphalt Mixing Plant , Hot Mix Plant For Road Construction
Modular Structure Asphalt Mixing Plant , Hot Mix Plant For Road Construction
Modular Structure Asphalt Mixing Plant , Hot Mix Plant For Road Construction
Specifications
Brand Name :
CINACHARM
Model Number :
120t/h
Certification :
ISO BV SGS BV
Place of Origin :
HENAN
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20set per month
Delivery Time :
20days
Packaging Details :
standard package in China
Power(W) :
369kw
Voltage :
220V/380V--50Hz Ajustable
Product name :
stationary hot mix asphalt plants for sale
Mixer Capacity :
1500kg
Fuel consumption :
Diesel: 5.5~7kg/t Coal: 10kg/t
Asphalt :
±0.25%
Air Emissions :
≤20mg/Nm3 (bag-house)
Warranty :
18 Months
Description

Most Popular Road Construction Equipment 120t/h Stationary Hot Mix Asphalt Plants for Sale

Introduction:

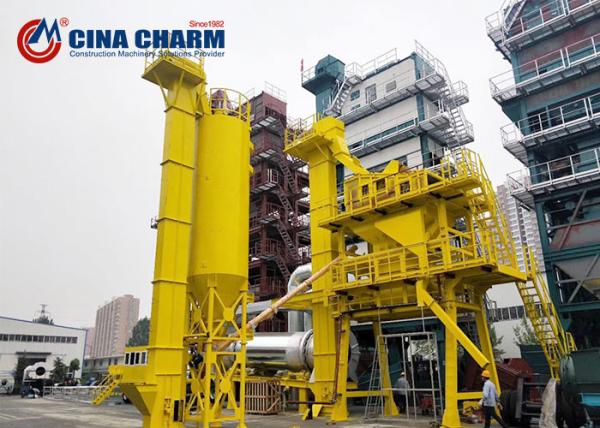

Asphalt Mixing Plant is designed as modular structure, which is convenient for transportation, installation and relocation. It takes smaller area and promotes higher production efficiency. It is suitable for mass production of road construction.

RLB Series Asphalt Hot Recycling Equipment is an RAP (recycled asphalt pavement) processing device added onto asphalt batch mixing plant. by using hot recycling technology, recycled asphalt mixtures are conveyed into mixer and mixed with aggregate and filler to produce new asphalt with good quality.

RLB Series can fully make use of old asphalt mixture, save fuel and material, reduce pollution and waste, bring better economic and environmental benefits for clients.

Liaoyuan can offer asphalt batch mixing plant with RLB hot recycling device, or just the RLB hot recycling device to match with client's exsisting asphalt plant.

Main features:

1) Saving fuel: high performance burner, full combustion; optimized drying drum, hot air recycled before exhaust, higher heat utilization rate;
2) Minimal pollutants: asphalt fumes and harmful gas recycled into drying drum and burn again, reducing harmful fume emission; multi-stage dust collecting system, reducing dust emission;
3) Full automatic control by the computer on the air flow through the control of the dampers and the temperature monitoring by the thermometer at various positions, bringing the recycled material to the ideal temperature for the mixing with the virgin material; avoiding aging asphalt or asphalt burning;
4) Recycled asphalt proportion reaches up to 50%.

Model RLB-1000 RLB-1500 RLB-2000 RLB-2500
Capacity (RAP processing) 48TPH 80TPH 120TPH 160TPH
Total power 130kW 170kW 230kW 280kW

Max. Proportion of RAP LB1200

 50%
Max. Proportion of RAP LB1500 40%
Max. Proportion of RAP LB2000 30% 50%
Max. Proportion of RAP LB3000 33% 50%
Max. Proportion of RAP LB4000 25% 37% 50%

Modular Structure Asphalt Mixing Plant , Hot Mix Plant For Road Construction

Modular Structure Asphalt Mixing Plant , Hot Mix Plant For Road Construction

Modular Structure Asphalt Mixing Plant , Hot Mix Plant For Road Construction

Pre-sale service

Suggest the best suitable products for customers according to their requirement, with sincere attitude

Try our best to Offer the technical service before installment.

Give our customers training for main problems and solution, maintenance and so on

During sale service

Supervising the whole process of producing and shipment and making sure our product deliver with good condition in time.

Offer all the necessary technical data to customer.

After sale service

Offer installment, debugging, and repairing service after customer receiving our products.

Offer work-site training.

Solve the customer’s complain at first time and try to arrive at the work site once get your notice.

We record every sold product on installment, debugging, and repairing situation. And provide professional maintenance advice.

We will visit customer timely to learn customer’s advice and new demand

Modular Structure Asphalt Mixing Plant , Hot Mix Plant For Road Construction
