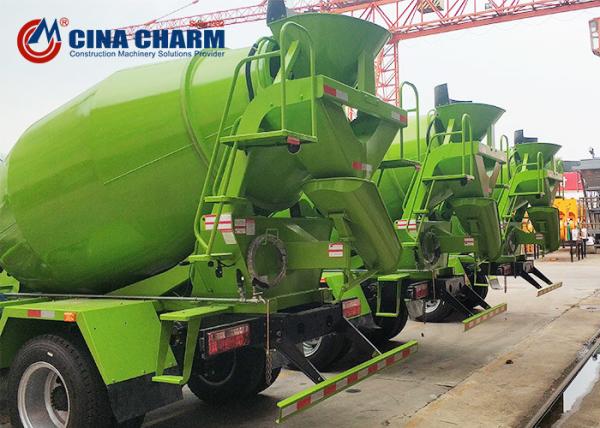

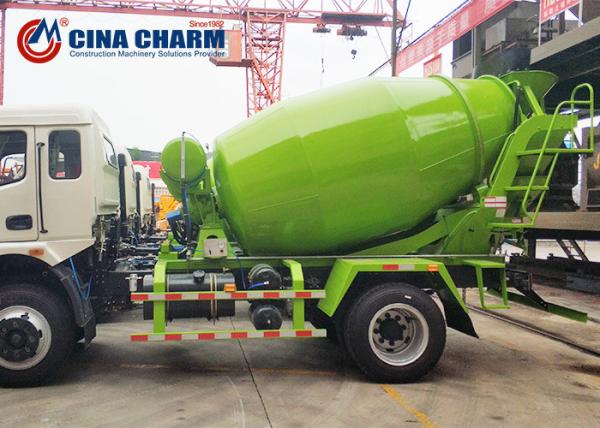

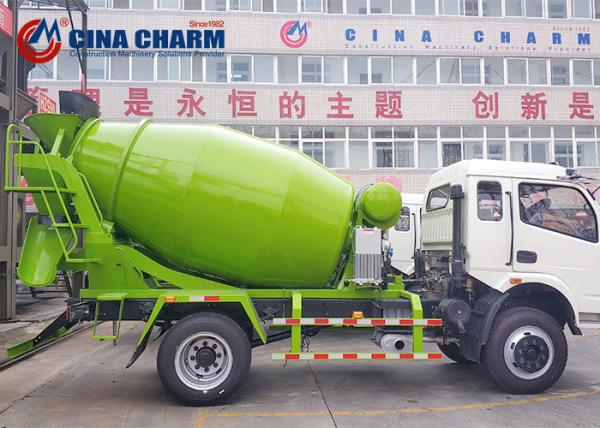

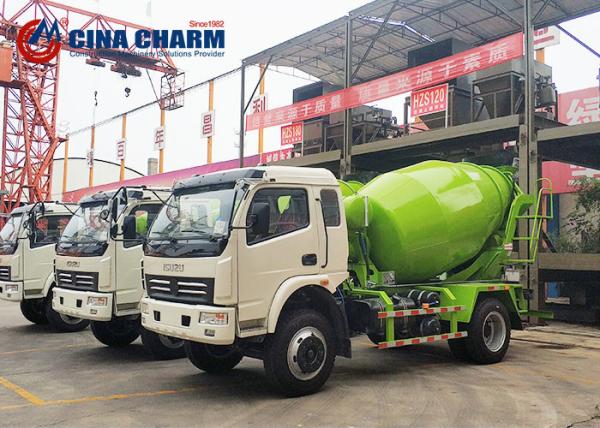

Sinotruk HOWO 6*4 Ready Mix Concrete Truck 5 Cubic Meters For Construction
Sinotruk HOWO 6*4 Ready Mix Concrete Truck 5 Cubic Meters For Construction
Sinotruk HOWO 6*4 Ready Mix Concrete Truck 5 Cubic Meters For Construction
Sinotruk HOWO 6*4 Ready Mix Concrete Truck 5 Cubic Meters For Construction
Sinotruk HOWO 6*4 Ready Mix Concrete Truck 5 Cubic Meters For Construction
Sinotruk HOWO 6*4 Ready Mix Concrete Truck 5 Cubic Meters For Construction
Sinotruk HOWO 6*4 Ready Mix Concrete Truck 5 Cubic Meters For Construction
Sinotruk HOWO 6*4 Ready Mix Concrete Truck 5 Cubic Meters For Construction
Specifications
Brand Name :
CINACHARM
Model Number :
4m3
Certification :
CE ISO BV SGS EPA
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
10 days after we got the payment
Packaging Details :
China Standard Package
Name of Commodity :
4m3 concrete mixer truck
Overall dimension :
6950x2450x3100mm
Kerb weight :
6500kg
Mixing drum material :
High quality wear-resistance steel
Model :
Q345
Drum body thickness :
5mm
End cover thickness :
6mm
Color :
As request
Description

Hot sale concrete mixer truck Sinotruk HOWO 6*4 Cement Mini Truck Concrete Mixer 5 Cubic Meters Concrete Mixer Truck

Concrete mixer truck is a special truck used to transport concrete for construction; because of its shape, it is often referred to as a field snail truck.

1: Cylindrical mixing drums are installed on these trucks to carry mixed concrete.

2: In the course of transportation, the mixing drum will always be rotated to ensure that the concrete carried will not solidify.

3: After the concrete is transported, the inner part of the mixing drum is usually washed with water to prevent the hardening of concrete from occupying space, so that the volume of the mixing drum becomes smaller and smaller.

Name of Commodity 4m3 concrete mixer truck
Overall dimension 6950x2450x3100mm
Kerb weight 6500kg
Mixing Drum parameter
Mixing drum material High quality wear-resistance steel
Model:Q345
Drum body thickness: 5mm, End cover thickness:6mm
Agitating capacity 4m3
Charging rate ≥3 m3/min
Top feed hopper dimension ≥650 mm
Discharging rate ≥2 m3/min
Residual rate ≤0.5%
Water supply Baric water supply system
Water tank capacity 450L
Radiator 18L
Reduction gear PMB 6.5 sp Reduce
Hydraulic pump PMH P72
Hydraulic motor PMH M72
Accessory Tool box
Chassis parameter
Chassis Brand SINO Truck
Truck Model ZZ5167GJB381C01R
Driving type Right hand drive(LHD)4*2
Engine model YUCHAI
Rated power (HP/rpm) 180HP
Emission standard Standard V
Fuel type Diesel
Gross weight 15000kg
RAW 9000kg
FAW 6000kg

Q1: Which country do you export to?

Asia:India,Philippines,Thailand,Burma,Vietnam,Bangladesh,Kazakhstan,Turkmenistan,etc.

Middle east:Saudi Arabia,Iran,UAE,Jordan,Oman,Syria,Pakistan,etc.

Europe:Russia,Ukraine,Belarus,Bulgaria,etc.

Africa:South Africa,Kenya,Congo,Ethiopia,Nigeria,Ghana,Algeria,Senegal,Tunisia,etc.

South America:Brazil,Peru,Chile,Cuba,Venezuela,Mexico,etc.

Oceania:Papua New Guinea,Australia,etc.

Q2: What is the proportion of your products export?

75% of our products are exported to all over the world.

Q3: What is the payment term?

Payment term is negotiable and there will be favorable payment terms for long-term customers.TT,L/C,D/P,depending on the cooperation time,country and contract value.

Q4: What kind of logistic service do you supply?

FOB,CIF,DAP,ETC.

Q5: What spare parts can you supply?

All kinds of spare parts of xcmg,shantui,zoomlion,sinotruck,shacman,liugong,sany,sdlg,lonking,xgma,etc.
