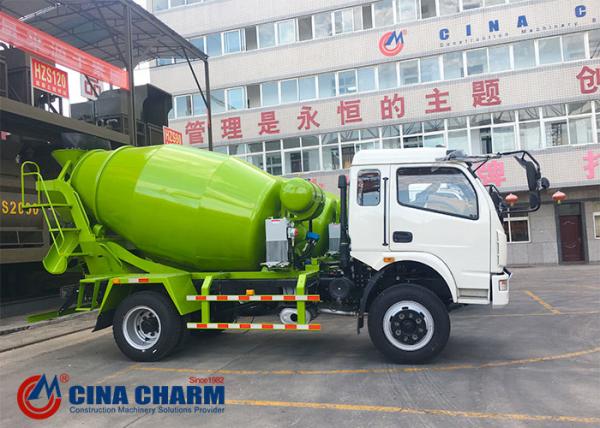

6m3 howo concrete mixer truck ready mix concrete truck mixer concrete truck

Mixer components:two types of chassis,transmission system,hydraulic system,rack,mixing tank,into the material device,water supply system,control system,people ladder and other parts.

Concrete mixer main special accessories including power take,stirring cylinder front and rear support,reducer,hydraulic system,mixing tube,control mechanism,cleaning system.

The working principle:the power of the chassis is removed by the power take-off force,and drive the hydraulic pump of the hydraulic system.The mechanical energy can be converted into hydraulic power to the hydraulic motor.The motor drives the reducer again and drives the mixing system by the reducer.

Our company installs the wear-resistant steel strip on the blade(effectively reduces the drum's wear and prolongs the service life of the drum),the spiral layout of the blade adopts the international leading technology,which can reduce the concrete residue to 2%-3%,and it reached the leading level in the same industry.

Features and advantages
1. Special purpose chassis is specially developed for rural market, even narrow country road can be easily handled.
2. Optimized design of concrete mixing tank, improve loading ability, mixing on average without separation.
3. Mixing blade adopt three-dimensional double helix mixing design, reducing remnant rate to 0.6%,better than international standard 2%, leading the industry standard 0.7%-1%
4. The blade has unique wear-resisting protection structure, improving blade service life 80%

5. All the structural parts of the car are all shot peening treatment -- medium coating -- special spray finish (baking paint) processing technology, through shot peening treatment to enhance the adhesion of paint, professional advanced paint spraying room to ensure the quality and service life of paint spraying.
Each batch of vehicles through the sampling inspection method, check the overall performance.
