Skip Hopper HZS25 3.8M Concrete Ready Mix Plants
Skip Hopper HZS25 3.8M Concrete Ready Mix Plants
Skip Hopper HZS25 3.8M Concrete Ready Mix Plants
Skip Hopper HZS25 3.8M Concrete Ready Mix Plants
Skip Hopper HZS25 3.8M Concrete Ready Mix Plants
Skip Hopper HZS25 3.8M Concrete Ready Mix Plants
Skip Hopper HZS25 3.8M Concrete Ready Mix Plants
Skip Hopper HZS25 3.8M Concrete Ready Mix Plants
Specifications
Brand Name :
Cinacharm
Model Number :
HZS25
Certification :
CE ISO BV SGS
Place of Origin :
China
MOQ :
one set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
8-10 days
Packaging Details :
China standard package
Product name :
HZS25 Concrete Batching Plant
Capacity :
25m3/h
Applicable industries :
Manufacturing Plant
Control system :
Automatic Computer Control
Mixer :
JS500 Concrete Mixer
Batching machine :
PLD800 Batching Machine
Cement silo :
50t/100t/150t.customized
Weight :
Based,According to different model
Description

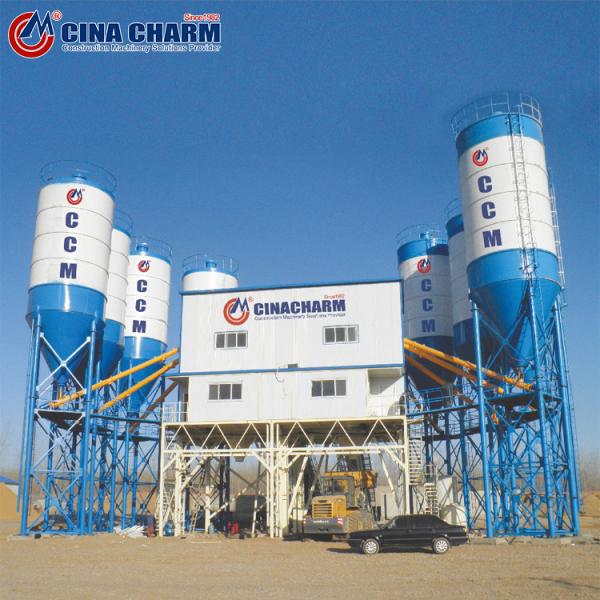

Cinacharm HZS25 Concrete Batching Plant

Skip hopper Concrete Batching Plant:
Concrete Batching Plant also known as concrete mixing plant or concrete plant, the Belt Conveyor Concrete batching Plant is the plant which use belt transport aggregate from weighting machine into concrete mixer. It is high efficiency, more energy saving and more uniform mixing.

Concrete batching plant consists of material batching, mixing and electric control system, etc, which is professional equipment for ready mix concrete production, such as plasticity/dry concrete.

concrete mixing plant is widely used in small and medium construction products, road, bridge project, and concrete prefabrication factory.

Skip Hopper HZS25 3.8M Concrete Ready Mix Plants
Features
Features of Concrete Plant:
1) This concrete mixing plant adopts JS500 concrete mixer, it is a double horizontal shaft concrete mixer, so it can mix concrete efficiency and enough in short time.
2) The electronic weighting system has a buffer device and automatic volume compensation with high accuracy.
3) Sand & gravel batching machine use PLD800, with has highly accuracy measuring.
4) There also has maintenance walkway, so that enginer can examine this plant easily.
5) Cement is stored in cement silo, and feeding by screw conveyor.
6) Water supply system is composed by water tank, water pump and water weigher.
The whole mixing, batching system is operated by electrical control room or control plate, fully automatical.

Skip Hopper HZS25 3.8M Concrete Ready Mix Plants

Parameter
Technical Parameters of Skip Hopper Concrete Batching Plant:

Model HZS25 HZS35 HZS50 HZS60 HZS75 HZS90 HZS120 HZS150 HZS180
Discharging Capacity (L) 500 750 1000 1000 1500 1500 2000 2500 3000
Charging Capacity(L) 800 1200 1600 1600 2400 2400 3200 4000 4800
Maximum Productivity(m³/h) 25 35 50 60 75 90 120 150 180
Charging Model Skip Hopper Skip Hopper Skip Hopper belt conveyor Skip Hopper belt conveyor belt conveyor belt conveyor belt conveyor
Standard Discharging Height(m) 1.5~3.8 2~4.2 4.2 4.2 4.2 4.2 3.8~4.5 4.5 4.5
Number of Species of Aggregate 2~3 2~3 3~4 3~4 3~4 4 4 4 4
Maximum Aggregate Size(mm) ≤60mm ≤80mm ≤80mm ≤80mm ≤80mm ≤80mm ≤120mm ≤150mm ≤180mm
Cement/Powder Silo Capacity(set) 1×100T 2×100T 3×100T 3×100T 3×100T 3×100T 4×100T or 200T 4×200T 4×200T
Mixing Cycle Time(s) 72 60 60 60 60 60 60 30 30
Total Installed Capacity(kw) 60 78.5 111 145 110 198.06 210 230 288
