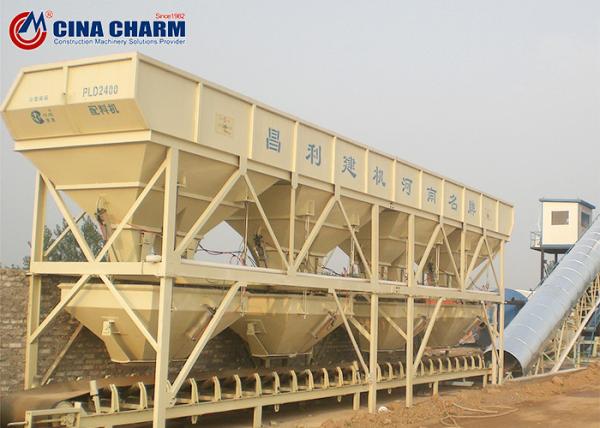

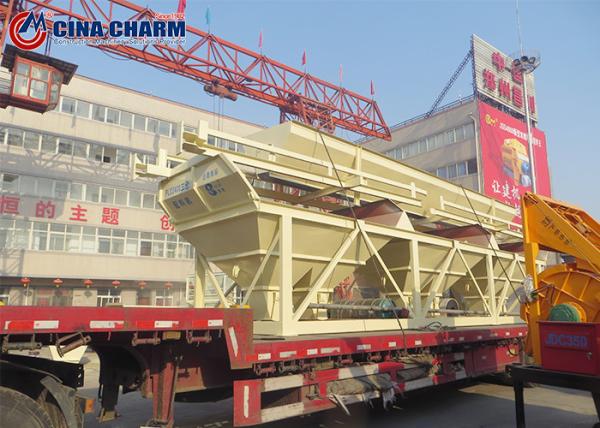

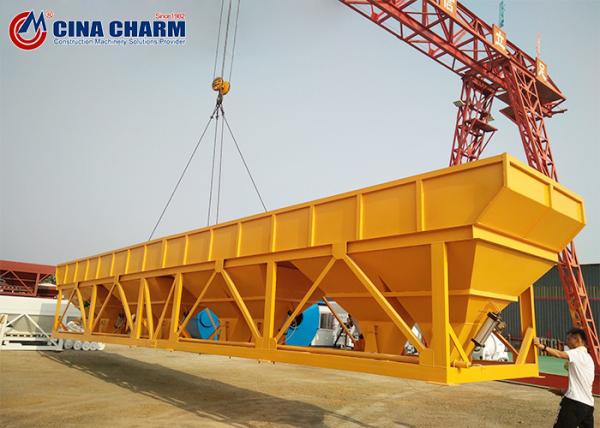

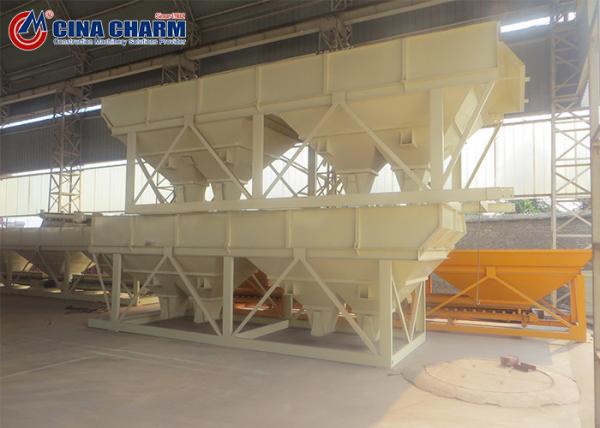

PLD2400 Separate Weighing Concrete Batching Machine
PLD2400 Separate Weighing Concrete Batching Machine
PLD2400 Separate Weighing Concrete Batching Machine
PLD2400 Separate Weighing Concrete Batching Machine
PLD2400 Separate Weighing Concrete Batching Machine
PLD2400 Separate Weighing Concrete Batching Machine
PLD2400 Separate Weighing Concrete Batching Machine
PLD2400 Separate Weighing Concrete Batching Machine
Specifications
Brand Name :
CINACHARM
Model Number :
PLD2400
Certification :
CE ISO BV SGS
Place of Origin :
CHINA
MOQ :
1
Price :
$8,000.0-$15,500.00/Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50
Delivery Time :
5-8 work days
Packaging Details :
Standard packing
Power type :
Electric
Condition :
New
Warranty :
1 Year
Dimension(l*w*h) :
Seller's Final Confirmation
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support,Field installation,commissioning and training
Product name :
Concrete Mixing Plant
Color :
Customer Required
Application :
Construction Projects,Engineering & Construction machinery
Control system :
totally automatic
Cement silo :
50t/100t/150t.customized
Type :
Fixed Concrete Batching Plant
Keyword :
concrete batching machine,Fixed Concrete Batching Plant
Description

PLD 2400 concrete automatic batching dosing machine 4 hop with CE ISO certifications and high accuracy

Product Description:

PLD2400 batching machine is small automatic concrete batching equipment, which can be combined with cement silos. PLD2400 adopts imported sensors, which is quick to response and accurate; the single-hopper modular design is flexible for installation. The weighing capacity is 2400L, the batching accuracy is ±2%, production capacity is 120m³/h. PLD2400 batching machine is ideal concrete or brick aggregate batching equipment.

Good quality fully automatic concrete batcher PLD2400 with CE ISO certifications and high cvvurary

PLD Series Concrete Batching machine is a kind of equipment with automatically batching material on the front desk and using mixer together. It can automatically finishing the batching procedures of 3-6 kinds of materials (second grade concrete) such as sand, stone, cement according to users’ requirement. These serial products adopt electronic weighing, computer control, digital display, wired remote control operation, and have such advantages as accurate weighing, high precision batching, quick speed, strong control function and convenient operation.

PLD2400 Separate Weighing Concrete Batching Machine

Model
PLD2400with THREE storage bins
Weighing hopper
2.4m3
Material hopper
10.3m3*3
Productivity
120m3/h
Batching accuracy
±2%
Amount of batching aggregate
4
Charging height
2885
Power
4KW*4
Outline dimension(L*W*H)
13900*2250*3800


PLD2400 Separate Weighing Concrete Batching Machine
Concrete batching machine with separated weighing discharges each aggregate into a separated hopper with weighing device. Its main advantage is high accuracy weighing, but its cost is high because of the advanced design.Separated hopper weighing is usually used for PLD2400 (120m³/h), LPD3200 (160m³/h) or large batching machines.
PLD2400 Separate Weighing Concrete Batching Machine

PLD series Concrete Batching Machine is a kind of equipment with automatically batching material on the front desk and using mixer together. It can automatically finish the batching procedures of 3~6 kinds of materials (second grade concrete) such as sand, stone, cement, according to user’s design.

These series products adopt electronic weighing, computer control, digital display, wired remote control operation, and have such advantages as accurate weighing, high precision batching, quick speed, strong control function and convenient operation. After this series concrete batching machine combines with relative concrete mixer, different types and specifications combined concrete mixing plant can be formed.

PLD2400 Separate Weighing Concrete Batching Machine
