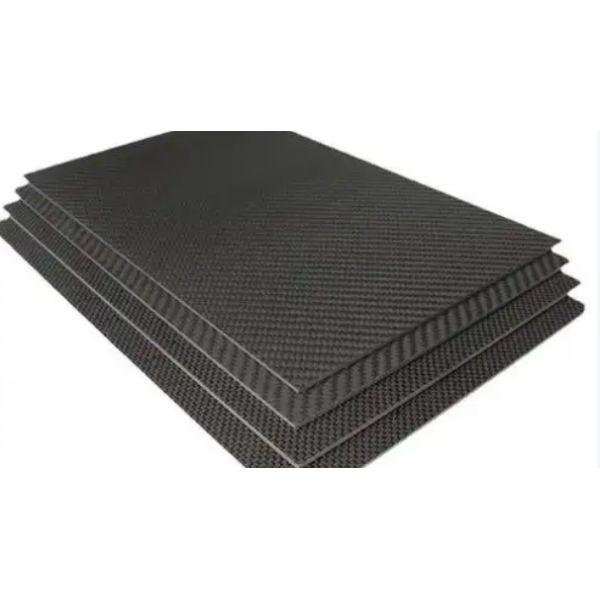

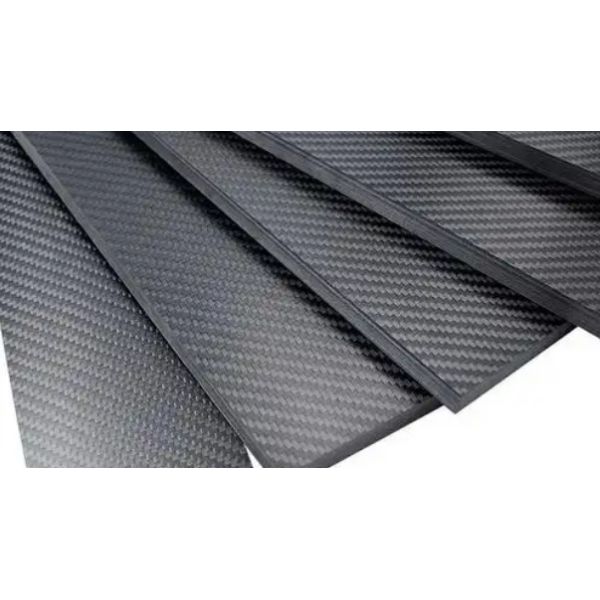

High-Strength 3K Twill Carbon Fiber Sheet for Aerospace & Automotive Applications in Custom Sizes 0.5-5mm
High-Strength 3K Twill Carbon Fiber Sheet for Aerospace & Automotive Applications in Custom Sizes 0.5-5mm
High-Strength 3K Twill Carbon Fiber Sheet for Aerospace & Automotive Applications in Custom Sizes 0.5-5mm
High-Strength 3K Twill Carbon Fiber Sheet for Aerospace & Automotive Applications in Custom Sizes 0.5-5mm
High-Strength 3K Twill Carbon Fiber Sheet for Aerospace & Automotive Applications in Custom Sizes 0.5-5mm
High-Strength 3K Twill Carbon Fiber Sheet for Aerospace & Automotive Applications in Custom Sizes 0.5-5mm
Specifications
Brand Name :
WGSC
Certification :
ISO9001
Place of Origin :
CHINA
Payment Terms :
T/T
Acid Resistance :
Excellent
Moisture Content :
≤0.2%
Grammage :
450-4000(g/m²)​
Tensile Strength :
≥50N/50mm
Compatibility :
Polyester, vinyl ester, epoxy resins
Heat Resistance :
Good
Description

High-Strength 3K Twill Carbon Fiber Sheets for Aerospace & Automotive Applications | Custom Sizes 0.5-5mm

Product Overview

Our 3K Twill Carbon Fiber Sheets​ are engineered from high-purity carbon fibers impregnated with epoxy resin, offering a perfect balance of lightweight construction, exceptional strength, and corrosion resistance. These sheets utilize a 3K twill weave pattern​ for enhanced structural integrity and aesthetic appeal, making them ideal for aerospace components, automotive parts, and high-performance engineering projects. Available in thicknesses ranging from 0.5mm to 5mm​ and custom sizes up to 1000x2000mm, they cater to diverse industrial and prototyping needs.

Key Features & Benefits

✅ Ultra-High Strength-to-Weight Ratio​
  • Tensile strength up to 5000 MPa, 4–5× lighter than steel while maintaining comparable rigidity.
  • Low density (1.4–1.8 g/cm³) for aerospace and automotive weight reduction.
✅ 3K Twill Weave Design​
  • Diagonal fiber alignment improves impact resistance and load distribution.
  • Textured surface enhances adhesion for coatings or secondary bonding.
✅ Customizable Dimensions​
  • Thickness options: 0.5/1/1.5/2/3/5mm.
  • Custom lengths and widths (minimum order: 10 sheets).
✅ Environmental Resistance​
  • Resists corrosion from acids, alkalis, and UV exposure.
  • Operates in temperatures ranging from -60°C to +200°C.
✅ Surface Finish Options​
  • Glossy, matte, or carbon fiber-visible finishes for aesthetic flexibility.

Applications

Industry​
Typical Uses​
Aerospace​
Aircraft panels, drone frames, satellite components.
Automotive​
Chassis parts, brake discs, interior trim.
Sports Equipment
Bicycle frames, tennis rackets, ski poles.
Electronics​
Laptop casings, drone enclosures, wearable tech.
Medical Devices​
Prosthetics, imaging equipment mounts.

Technical Specifications

Parameter​
Specification​
Material
3K carbon fiber + epoxy resin
Thickness Range
0.5–5 mm
Tensile Strength
3000–5000 MPa
Elastic Modulus
200–400 GPa
Density
1.4–1.8 g/cm³
Thermal Expansion Coef
≤0.7×10⁻⁶/°C (20–200°C)
Dielectric Strength
≥20 kV/mm

Packaging & Delivery

Standard Packaging​

  • Primary: Wrapped in vacuum-sealed polyethylene film​ to prevent oxidation.
  • Secondary: Secured in moisture-resistant cardboard boxes​ with edge guards.
  • Bulk Orders: Palletized with wooden frames and moisture-proof membranes.

Shipping & Handling​

  • Lead Time: 5–15 business days (depends on customization).
  • Global Logistics: Available via air, sea, or express freight (FOB/CIF terms).

Storage Guidelines

  1. Environment: Store in cool, dry warehouses​ (15–25°C, <60% RH).
  2. Protection: Avoid direct sunlight, chemical vapors, and mechanical compression.
  3. Shelf Life: 24 months if unopened and stored properly.
