Chemical Resistant Eco Friendly Carbon Fiber Cloth Fabric Carbon Fiber Prepreg Roll
Chemical Resistant Eco Friendly Carbon Fiber Cloth Fabric Carbon Fiber Prepreg Roll
Chemical Resistant Eco Friendly Carbon Fiber Cloth Fabric Carbon Fiber Prepreg Roll
Chemical Resistant Eco Friendly Carbon Fiber Cloth Fabric Carbon Fiber Prepreg Roll
Chemical Resistant Eco Friendly Carbon Fiber Cloth Fabric Carbon Fiber Prepreg Roll
Chemical Resistant Eco Friendly Carbon Fiber Cloth Fabric Carbon Fiber Prepreg Roll
Chemical Resistant Eco Friendly Carbon Fiber Cloth Fabric Carbon Fiber Prepreg Roll
Chemical Resistant Eco Friendly Carbon Fiber Cloth Fabric Carbon Fiber Prepreg Roll
Specifications
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
300㎡
Payment Terms :
T/T
Brand Name :
WGSC
Price :
$9.58-$12.68（㎡）
Delivery Time :
3-7 work days
Supply Ability :
15000㎡/month
Packaging Details :
Palletize
Grade :
T300/T700
Weave Structure :
2×2 Twill/4H Satin/5H Satin
​Areal Density (g/m²)​ :
Custom-made
Resin Wet-Out Time :
≤20s /≤25s/≤30s
Elongation :
1.5%
Material :
Carbon Fiber
Description
Chemical Resistant Eco Friendly Carbon Fiber Cloth Fabric Carbon Fiber Prepreg Roll
Product Specifications
Attribute Value
Grade T300/T700
Weave Structure 2×2 Twill/4H Satin/5H Satin
Areal Density (g/m²) Custom-made
Resin Wet-Out Time ≤20s /≤25s/≤30s
Elongation 1.5%
Material Carbon Fiber

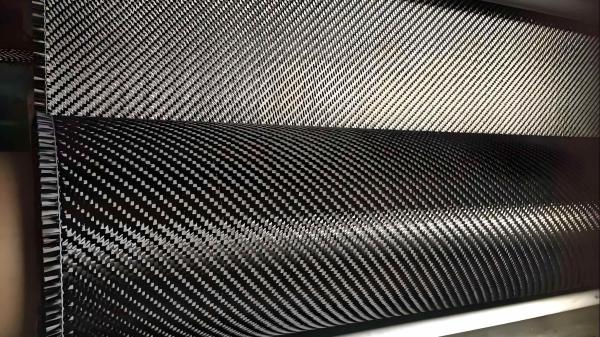

Engineered Twill-Weave Carbon Fabric

Features 45° interlacing patterns (2×2 or 4H satin weave), delivering exceptional strength-to-weight ratio and complex mold conformity.

Core Advantages
  • Ultra-Light & Strong: Density 1.76-1.80g/cm³, tensile strength ≥3,500MPa (5x stronger than steel)
  • Enhanced Drapability: Superior contour adaptability vs. plain weave fabrics
  • Thermal/Chemical Resistance: Continuous service temperature ≥300°C, chemical inertness
  • Electrical/Thermal Conductivity: Axial thermal conductivity 8.5-11.0W/m*K
Primary Grades & Applications Matrix
Grade Weave Structure Core Industry Applications End-Use Products
T300-3K 2×2 Twill UAV wings, sports equipment Racket frames, medical device housings
T300-6K 2×2 Twill Automotive interiors, marine decking Lightweight car doors, yacht components
T700-12K 4H Satin Supercar body panels, wind turbine spar caps F1 chassis, high-speed train frames
T700-24K 5H Satin Satellite structures, robotic arms Spacecraft modules, industrial robot joints
Weave Technology Advantage
  • 45° Fiber Alignment: Optimizes axial strength & drapeability (±15° angle tolerance)
  • Low Shear Stress: Satin weaves minimize fiber damage (interlaminar shear ↑40% vs plain weave)
Performance Specifications (Top 4 Grades)
Parameter T300-3K T300-6K T700-12K T700-24K Test Std.
Areal Density (g/m²) 200±5% 380±5% 410±5% 620±5% ISO 3374
Thickness (mm) 0.23±0.02 0.32±0.03 0.35±0.03 0.52±0.05 ASTM D1777
Tensile Strength (MPa) 3,480 3,520 4,850 4,800 ASTM D3039
Flexural Modulus (GPa) 225 228 240 238 ASTM D7264
Interlaminar Shear (MPa) 52 54 68 66 ASTM D2344
Resin Wet-Out Time ≤30s (epoxy) ≤30s (epoxy) ≤25s (epoxy) ≤20s (epoxy) ISO 9142
Universal Properties
  • CTE: -0.5*10⁻⁶/K (axial)
  • Electrical Resistivity: ≤1.6*10⁻³Ω*cm
-Grade Packaging System
4-Tier Protection Protocol
Protection Tier Technical Execution Performance Certification
Core Reinforcement Aerospace aluminum tube (Φ76*1200mm) Radial load ≥500kg (MIL-STD-2073)
Hermetic Sealing Anti-static PE film + desiccant Moisture content ≤0.03%
Impact Buffer EPE foam wrap (15mm thick) Passes 1.2m edge drop test (ISTA 3A)
Armored Casing CFRP composite cylinder Compression resistance ≥1,200kg
Premium Options
  • Temperature-Controlled Shipping (5°C-25°C for E&E components)
  • X-Ray Inspection Window (non-destructive quality verification)
Scientific Storage Protocol
Environmental Control Standards
Parameter Control Range Smart Monitoring
Temperature 15°C-25°C Distributed sensors (±0.5°C)
Humidity 35%-45% MEMS hygrometers
Light Exposure Total darkness UV intensity auto-alert
Stacking Vertical ≤2 layers AI deformation monitoring
Quality Assurance
  1. Shelf Life:
    • Sealed: 24 months (manufacture date)
    • Opened: 72-hour processing (N₂ cabinet storage)
  2. Blockchain Tracing:
    • Per-roll ID with environmental history logging
Technical Support & Compliance
  • Custom Solutions: Resin-specific sizing formulations
  • Certifications: NADCAP AC7114, AS9100, IATF 16949
  • Lab Services: Free DMA viscoelastic analysis (ASTM D7028)
