Pure Copper Wire Industrial EE65 Planar Transformer For PV Solar Inverter Components
Pure Copper Wire Industrial EE65 Planar Transformer For PV Solar Inverter Components
Pure Copper Wire Industrial EE65 Planar Transformer For PV Solar Inverter Components
Pure Copper Wire Industrial EE65 Planar Transformer For PV Solar Inverter Components
Pure Copper Wire Industrial EE65 Planar Transformer For PV Solar Inverter Components
Pure Copper Wire Industrial EE65 Planar Transformer For PV Solar Inverter Components
Specifications
Certification :
ISO9001:2015, ISO14001:2015, IATF16949, UL/cUL, ROHS, REACH, CQC
Core Material :
PC40 / PC44 Ferrite
Model Number :
EE65
Core Type :
EE65 Ferrite Core
Price :
US$2.5-10
Operating Frequency :
20kHz-100kHz
Supply Ability :
10,000,000pcs/month
Temperature Rise :
≤40K
MOQ :
100pcs
Delivery Time :
3~4 Weeks
Bobbin Material :
Phenolic / PBT, UL94 V-0
Operating Temperature :
-40°C to +125°C
Payment Terms :
T/T
Insulation Class :
Class B / Class F
Place of Origin :
China
Winding Material :
100% Pure Copper Enameled Wire
Brand Name :
Chipsen
Product Type :
High Frequency Switching Power Transformer
Packaging Details :
Carton 1: 25.5 X 21.5 X 21cm. Carton 2: 43.5 x 24.5 x 21 cm
Application :
PV Solar Inverter, UPS, Energy Storage
Description

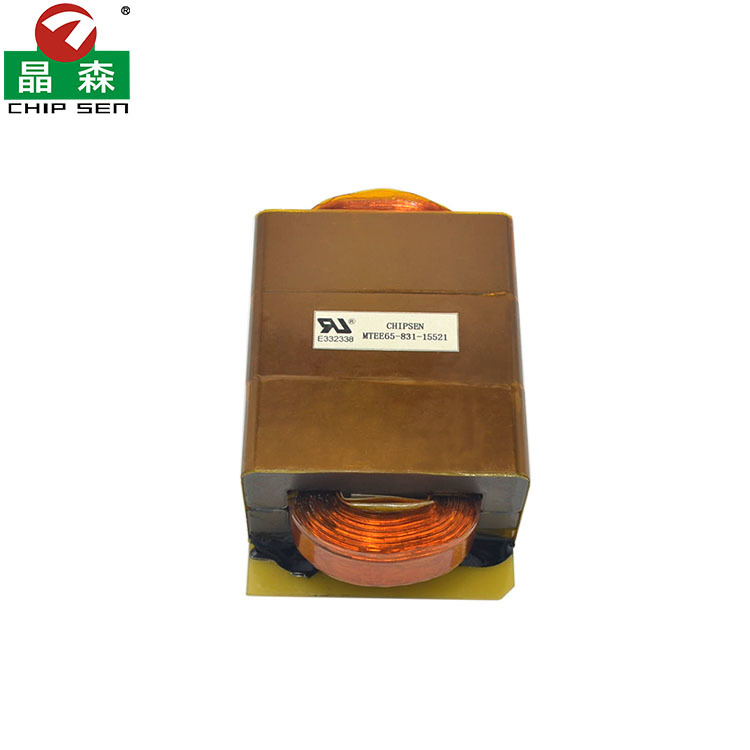

Pure Copper Wire Industrial EE65 Planar Transformer for PV Solar Inverter Components

The EE65 high frequency switching power transformer is engineered for high-power energy-conversion equipment such as PV solar inverters, hybrid energy-storage systems, UPS and industrial SMPS. Built on a low-loss ferrite EE65 core and wound with 100% pure copper wire, it delivers stable power transfer, low temperature rise and reliable insulation under continuous industrial duty. Windings, turns ratio, pin-out and creepage design are fully customizable to your schematic.

Key Features
  • 100% Pure Copper Winding — no copper-clad aluminium; lower DCR, lower copper loss and better efficiency at full load.
  • Low-Loss Ferrite EE65 Core — optimized for 20-100 kHz switching, controlled flux density to avoid saturation.
  • Reinforced Insulation System — margin tape + layer insulation, high dielectric strength between primary and secondary.
  • UL Recognized Materials — built with UL-listed bobbin, tape and magnet wire (UL File No. E332338).
  • Wide Temperature Operation — designed for −40 °C to +125 °C ambient in sealed inverter cabinets.
  • OEM / ODM Supported — inductance, turns ratio, leakage inductance, pin configuration and terminal type made to drawing.
Technical Specifications
Product Type High Frequency Switching Power Transformer
Model Number EE65 (MTEE65-831-15521)
Core Type / Material EE65 Ferrite Core, PC40 / PC44 grade
Winding Material 100% Pure Copper Enameled Wire (Litz / TIW optional)
Bobbin Material Phenolic / PBT, UL94 V-0 flame retardant
Operating Frequency 20 kHz - 100 kHz
Insulation Class Class B (130 °C) / Class F (155 °C) available
Dielectric Strength 3000 VAC / 1 min (Primary - Secondary)
Temperature Rise ≤ 40 K at rated load
Operating Temperature −40 °C ∼ +125 °C
Mounting Type PCB Through-Hole, horizontal mounting
Safety Reference UL File No. E332338 (recognized component materials)
Customization OEM / ODM accepted, made to customer drawing
Place of Origin China
Typical Applications
PV Solar Inverters & Micro-Inverters
Battery Energy Storage Systems (BESS)
Online / Industrial UPS
EV Charging Piles & On-Board Chargers
Industrial Switching Power Supplies
Welding & Motor Drive Equipment
Why Choose Us
  • Engineering support: our magnetics team reviews your topology (LLC, flyback, phase-shift full bridge) and proposes turns ratio, gap and wire gauge.
  • Full in-house testing: inductance, turns ratio, leakage inductance, DCR, Hi-Pot and temperature-rise verification on every batch.
  • Traceable materials: only UL-recognized bobbin, tape and magnet wire — no copper-clad aluminium substitution.
  • Flexible volume: from prototype samples to mass production, MTO capacity scaled to your forecast.
Packaging & Delivery
  • Inner packing: anti-static bag / partition tray
  • Outer packing: 5-layer export carton, wooden pallet on request
  • Sample lead time: 7 - 10 working days
  • Mass production: 15 - 25 working days after order confirmation
  • Trade terms: EXW / FOB / CIF
FAQ
Q1: Can you build the transformer to our own drawing?
Yes. Send us the schematic or specification sheet (inductance, turns ratio, power, frequency, pin-out) and we will return a design proposal and sample quotation.
Q2: Do you use pure copper wire?
Yes, 100% pure copper enameled wire as standard. Litz wire or triple-insulated wire (TIW) is available for high-frequency or reinforced-insulation designs.
Q3: Are samples available?
Samples are available for evaluation; sample charges are refundable against the first mass-production order.
Q4: What test reports can you provide?
Inductance / turns-ratio / DCR / Hi-Pot reports and temperature-rise curves can be supplied with each shipment on request.
Pure Copper Wire Industrial EE65 Planar Transformer For PV Solar Inverter Components
Send us your specification today — our engineers will reply with a technical proposal and quotation for your EE65 high frequency transformer within 24 hours.
