High Power Low Loss EE65 High Frequency Power Transformer Stable Efficient For UPS
High Power Low Loss EE65 High Frequency Power Transformer Stable Efficient For UPS
High Power Low Loss EE65 High Frequency Power Transformer Stable Efficient For UPS
High Power Low Loss EE65 High Frequency Power Transformer Stable Efficient For UPS
High Power Low Loss EE65 High Frequency Power Transformer Stable Efficient For UPS
High Power Low Loss EE65 High Frequency Power Transformer Stable Efficient For UPS
Specifications
Certification :
UL/cUL Class B/F/H, VDE, CQC
Temperature range :
-40°C to +125°C
Model Number :
EE65
Material Rating :
UL 94V-0
MOQ :
1K
Delivery Time :
7-14 work days (Negotiable)
Current Up To :
73A
Payment Terms :
T/T
Price :
＄16.5-19.8/pieces
Power Rating :
Up to 3,000 W
Supply Ability :
10000pcs
Brand Name :
CHIPSEN
Insulation class :
Class B, F, or H
Place of Origin :
China
Input Voltage :
1000VDC
Description
High Power Low Loss EE65 High Frequency Transformer

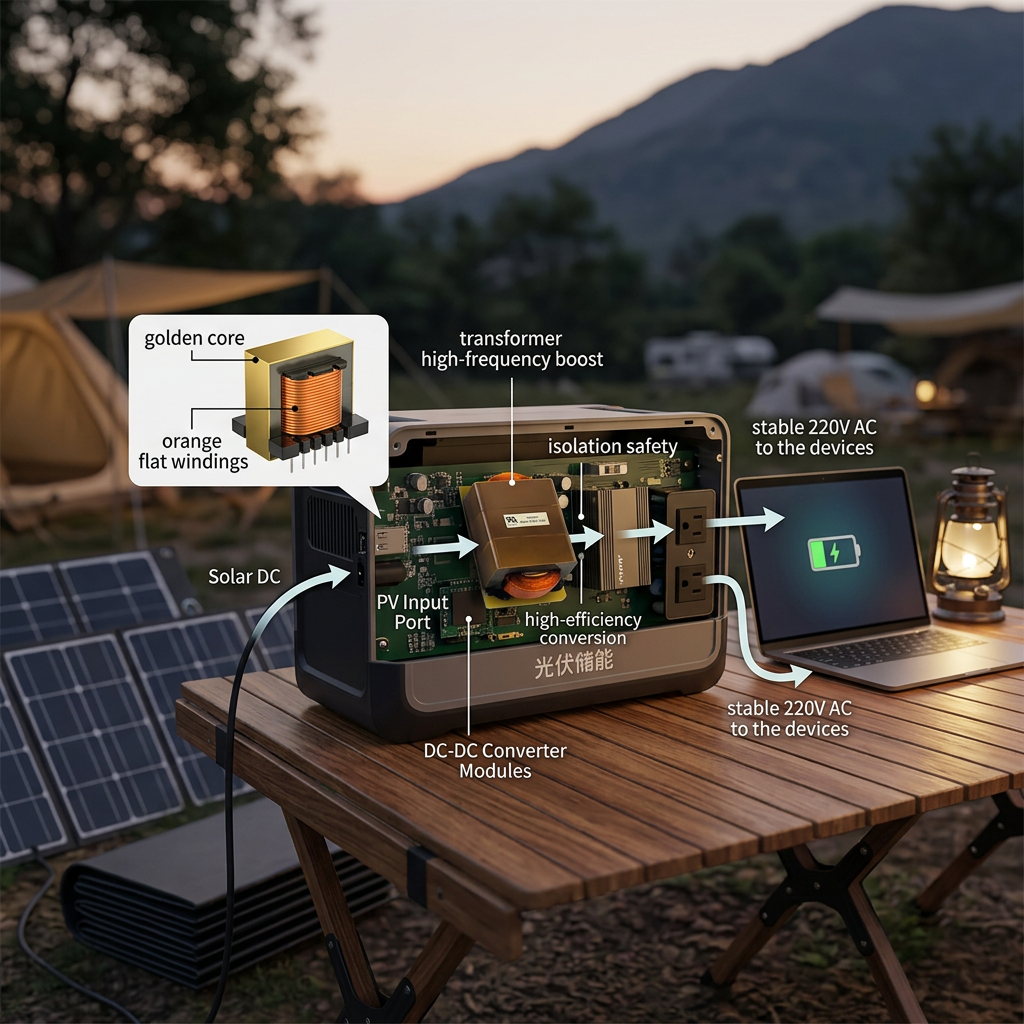

Stable, efficient transformer designed for UPS systems and high-power isolated energy conversion in switch-mode power supplies, inverters, converters, chargers, and industrial power electronics equipment.
Application Specifications
The following values represent common project-discussion ranges used by international buyers when evaluating EE65 high-frequency transformers:
IndustryTypical ApplicationPower Inquiry RangeSwitching FrequencyKey Parameters
UPS and Data CenterInverter power stage, battery conversion, server power300 to 1500 W30 to 150 kHzPrimary inductance, turns ratio, leakage inductance, DCR, efficiency
Solar InverterIsolated DC-DC conversion, energy-transfer stage500 to 2000 W20 to 120 kHzCore loss, copper loss, flux density, saturation margin
Energy Storage PCSBidirectional DC-DC converter, battery-side conversion500 to 2000 W20 to 120 kHzBidirectional current capability, leakage inductance, thermal balance
EV Charging EquipmentIsolated DC-DC charging module, auxiliary conversion500 to 2000 W40 to 150 kHzTurns ratio, leakage inductance, efficiency, thermal performance
Industrial Power SupplyHigh-power SMPS, full-bridge conversion300 to 1500 W20 to 150 kHzMagnetizing inductance, regulation efficiency, temperature rise
Note: All values above are typical buyer inquiry references. Final ratings must be confirmed through approved customer specification and sample validation.
Product Overview
The EE65 High Frequency Transformer is a customizable large-format ferrite transformer designed for high-power isolated energy conversion. The EE65 core platform provides a large winding window and magnetic cross-sectional area suitable for high-current windings, multiple outputs, copper foil, and Litz-wire constructions.
Core Platform Features:
  • Large EE-shaped high-frequency ferrite core set
  • Suitable for push-pull, half-bridge, full-bridge, and LLC topologies
  • Heavily insulated construction with external shielding options
  • Customizable input/output voltages and power ratings
Construction Details
ComponentSpecifications
Core PlatformEE65 ferrite core
Core MaterialApplication-specific ferrite material
Primary ConductorMagnet wire, multi-strand wire, Litz wire, rectangular wire, or copper foil
Secondary ConductorMulti-strand wire, Litz wire, copper foil, or insulated bus conductor
Insulation SystemFunctional, basic, supplementary, double, or reinforced insulation
TerminationPCB pins, copper tabs, cables, lugs, busbars, or custom terminals
Key Characteristics
  • High Power Capability: Supports high-power conversion with proper thermal management
  • Low Core Loss: Optimized ferrite material and operating flux density
  • Low Copper Loss: Heavy-current windings with parallel conductors or copper foil
  • Custom Leakage Inductance: Adjustable for resonant and phase-shifted converters
  • High Isolation Options: Reinforced insulation meeting international standards
  • Multiple Output Capability: Supports single-output, center-tapped, and multiple-output configurations
  • EMI-Oriented Construction: Electrostatic shielding for noise reduction
  • Stable Thermal Performance: Optimized for required temperature-rise limits
Applications
  • UPS power systems and data center equipment
  • Solar inverters and energy storage converters
  • EV charging modules and bidirectional DC-DC converters
  • Industrial battery chargers and welding machines
  • Telecom rectifier systems and server power supplies
  • Servo drives, robotics equipment, and variable frequency drives
  • Medical power equipment and induction-heating systems
  • Railway and transportation power electronics
Quality Assurance
Comprehensive quality control including incoming material inspection, design review, in-process control, electrical testing, thermal validation, mechanical inspection, and sample validation.
Electrical Testing Includes:
  • Primary and secondary inductance
  • Turns ratio and winding polarity
  • Leakage inductance and DCR measurements
  • Dielectric strength and insulation resistance
  • Interwinding capacitance and continuity testing
Frequently Asked Questions
Q1: Is EE65 a fixed power rating?
No. EE65 identifies the ferrite core platform. Actual power capability depends on topology, input voltage, frequency, duty cycle, flux density, conductor structure, cooling conditions, insulation system, and allowable temperature rise.
Q2: What information is required for quotation?
Please provide input-voltage range, converter topology, switching frequency, duty cycle, output voltages/currents, power requirements, primary inductance, turns ratio, leakage target, DCR limits, isolation voltage, cooling method, dimensions, terminals, and applicable standards.
Q3: Can input and output voltages be customized?
Yes. Primary, secondary, and auxiliary windings can be designed according to required voltage, current, polarity, regulation, and isolation requirements.
Q4: Can EE65 support kilowatt-level applications?
EE65 can be evaluated for kilowatt-level conversion, but the model name alone does not guarantee a particular power rating. All operational parameters must be reviewed for suitability.
Q5: Can multiple secondary outputs be added?
Yes. Independent outputs, center taps, series windings, parallel windings, and auxiliary outputs can be developed according to the approved specification.

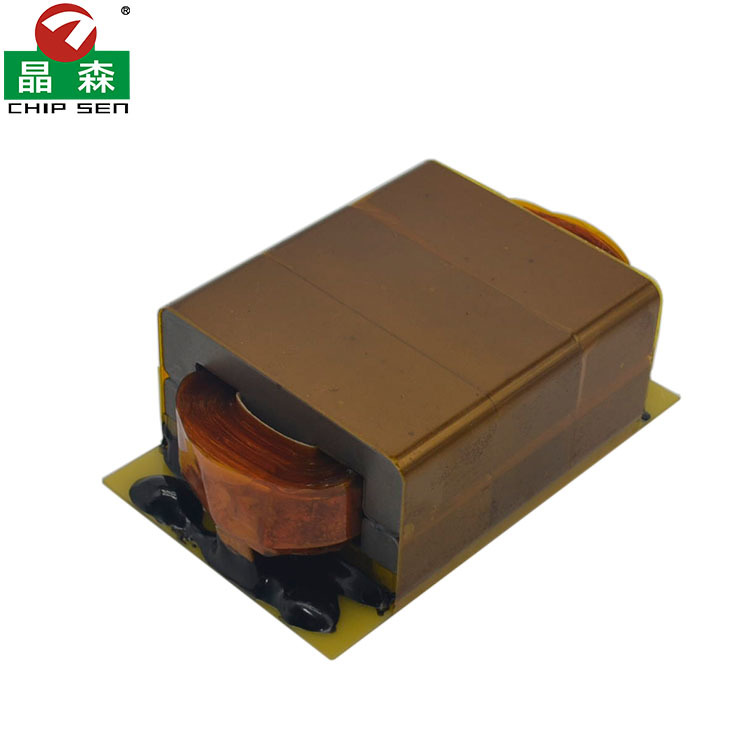

Product Image
High Power Low Loss EE65 High Frequency Power Transformer Stable Efficient For UPS
Why Choose Our EE65 Transformers
  • Application-Specific Customization: Developed around your actual converter requirements
  • OEM and ODM Support: Complete customization of materials, structure, and parameters
  • Engineering Collaboration: Technical review of all critical performance factors
  • High-Power Winding Options: Parallel copper wire, Litz wire, rectangular conductors, copper foil
  • Mechanical Integration Support: Custom bases, brackets, terminals, and mounting solutions
  • Flexible Prototype Support: Accommodates various quantity requirements
  • Controlled Specification Process: Defined through approved drawings and validation testing
