Industrial Carton Bottom Sealing Equipment Running Up To 12 Cartons Per Minute Steadily
Industrial Carton Bottom Sealing Equipment Running Up To 12 Cartons Per Minute Steadily
Industrial Carton Bottom Sealing Equipment Running Up To 12 Cartons Per Minute Steadily
Industrial Carton Bottom Sealing Equipment Running Up To 12 Cartons Per Minute Steadily
Industrial Carton Bottom Sealing Equipment Running Up To 12 Cartons Per Minute Steadily
Industrial Carton Bottom Sealing Equipment Running Up To 12 Cartons Per Minute Steadily
Industrial Carton Bottom Sealing Equipment Running Up To 12 Cartons Per Minute Steadily
Industrial Carton Bottom Sealing Equipment Running Up To 12 Cartons Per Minute Steadily
Specifications
Supply Ability :
10 sets/month
Air Compressing :
6-8kg/cm³
Brand Name :
HXCP
Carton Opening Speed :
Up to 10-12 cases/min
Model Number :
HXP40E
Carton Size :
L(250-450)×W(150-400)×H(100-400)mm
Price :
USD 11000 per set
Carton Storage Quantity :
80-100pcs (800-1000mm)
Certification :
CE
Power Supply :
220V 50/60Hz 1 Phase
MOQ :
1 set
Delivery Time :
30 work days
Adhesive Tape Width :
55-72mm (Choose one type)
Payment Terms :
L/C,D/A,D/P,T/T
Air Consumption :
450NL/min
Place of Origin :
China
Power :
240W
Packaging Details :
Stretch Film with Wooden Case
Description
Industrial Carton Bottom Sealing Equipment Running Up To 12 Cartons Per Minute Steadily
For Auto Box Unfolding, Folding and Tape Sealing Work
Industrial Carton Bottom Sealing Equipment Running Up To 12 Cartons Per Minute Steadily

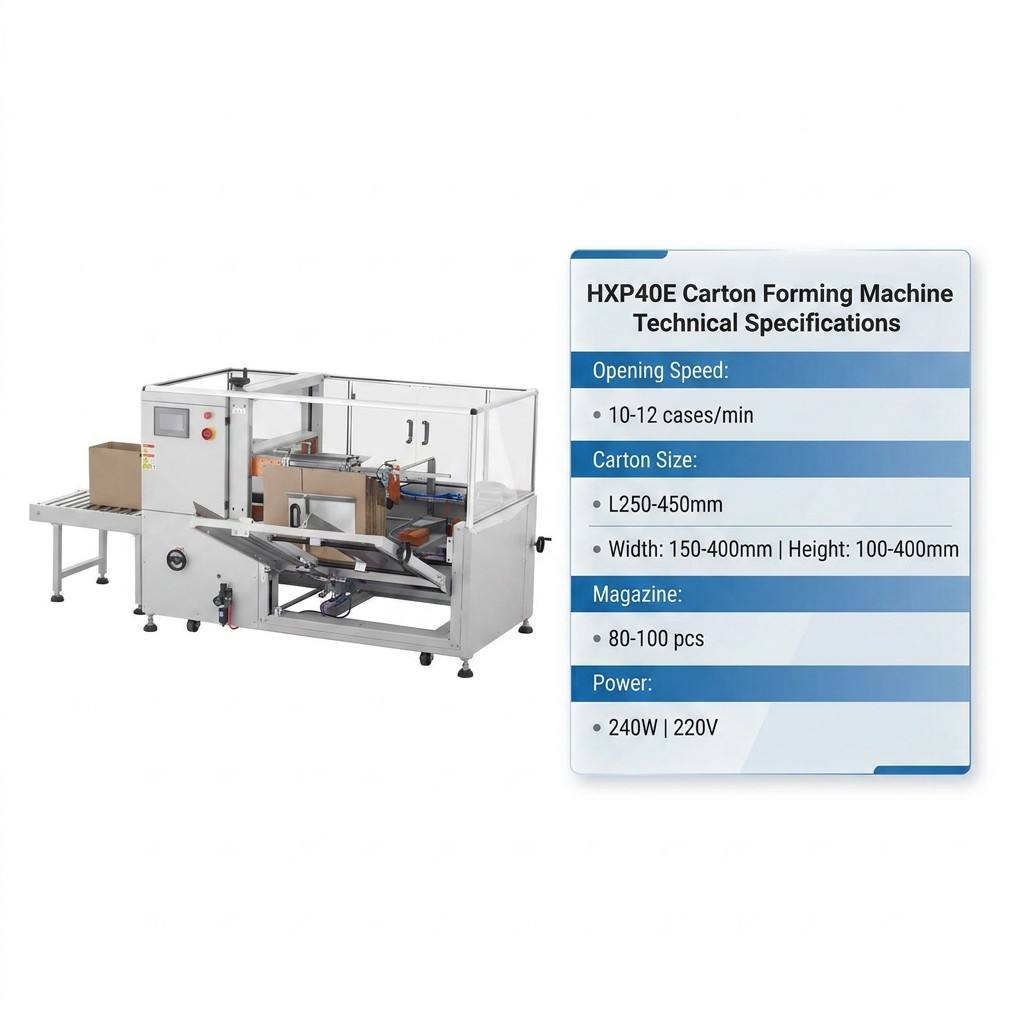

Machine Overview
Industrial Carton Bottom Sealing Equipment Running Up To 12 Cartons Per Minute Steadily
Carton Forming Mechanism
Industrial Carton Bottom Sealing Equipment Running Up To 12 Cartons Per Minute Steadily
Tape Sealing System
Industrial Carton Bottom Sealing Equipment Running Up To 12 Cartons Per Minute Steadily
Discharge Conveyor
Product Introduction

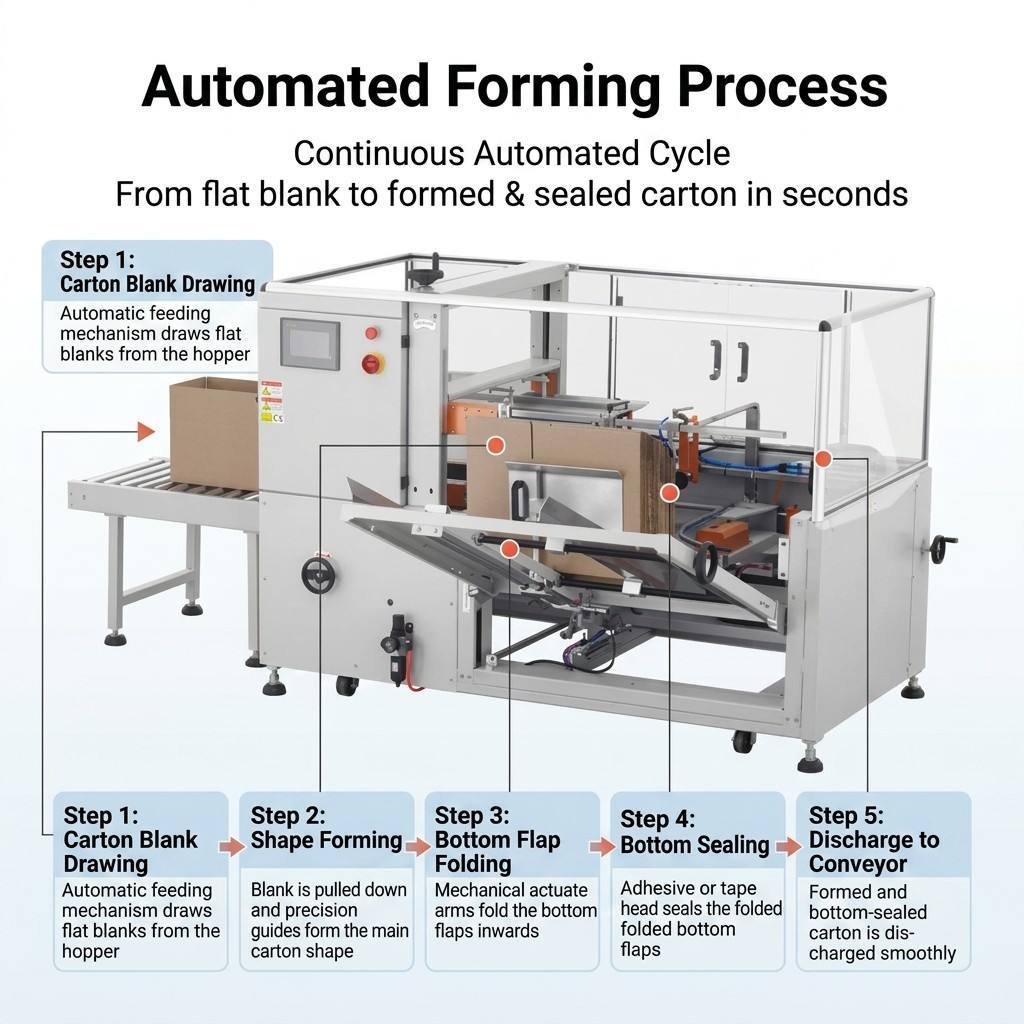

The HXP40E Automatic Carton Forming Bottom Sealer is a fully automated packaging equipment designed to simplify and standardize carton pre-packaging procedures. It realizes a complete unmanned working cycle: automatically picking flat carton blanks from the material magazine, shaping flat sheets into standard carton structures, sequentially folding bottom flaps in place, and applying adhesive tape for firm bottom sealing.

After finishing forming and sealing, the completed empty cartons are automatically discharged to the downstream conveyor for subsequent packaging procedures. With continuous cyclic operation, the machine achieves a maximum working speed of 12 cartons per minute, delivering stable and high-efficiency carton forming and bottom sealing performance for automated packaging lines.

Application Scenarios
  • Printing and packaging factories: automatic forming and bottom sealing of product packaging cartons
  • E-commerce logistics warehouses: continuous empty carton preparation for product packaging and shipment
  • Industrial automated packaging lines: front-end carton unfolding and shaping supporting equipment
  • Consumer goods manufacturing plants: batch carton forming processing for finished product packaging
  • Large-scale packaging workshops requiring standardized and high-speed carton pre-forming work
Core Advantages

Tailored for front-end carton preparation in automated packaging lines, the equipment solves the problems of slow manual carton forming and inconsistent specifications. It autonomously completes all core procedures from flat blank feeding to finished sealed carton output, realizing unmanned operation throughout the process.

Maximum Speed: 12 cartons per minute - fully matches the operating rhythm of mainstream packaging production lines

Precise mechanical action ensures neat carton forming and firm bottom sealing, laying a standardized foundation for subsequent product packaging.
