HXP40E Continuous Carton Processing Machine With Auto Feeding Forming And Discharging Function
HXP40E Continuous Carton Processing Machine With Auto Feeding Forming And Discharging Function
HXP40E Continuous Carton Processing Machine With Auto Feeding Forming And Discharging Function
HXP40E Continuous Carton Processing Machine With Auto Feeding Forming And Discharging Function
HXP40E Continuous Carton Processing Machine With Auto Feeding Forming And Discharging Function
HXP40E Continuous Carton Processing Machine With Auto Feeding Forming And Discharging Function
HXP40E Continuous Carton Processing Machine With Auto Feeding Forming And Discharging Function
HXP40E Continuous Carton Processing Machine With Auto Feeding Forming And Discharging Function

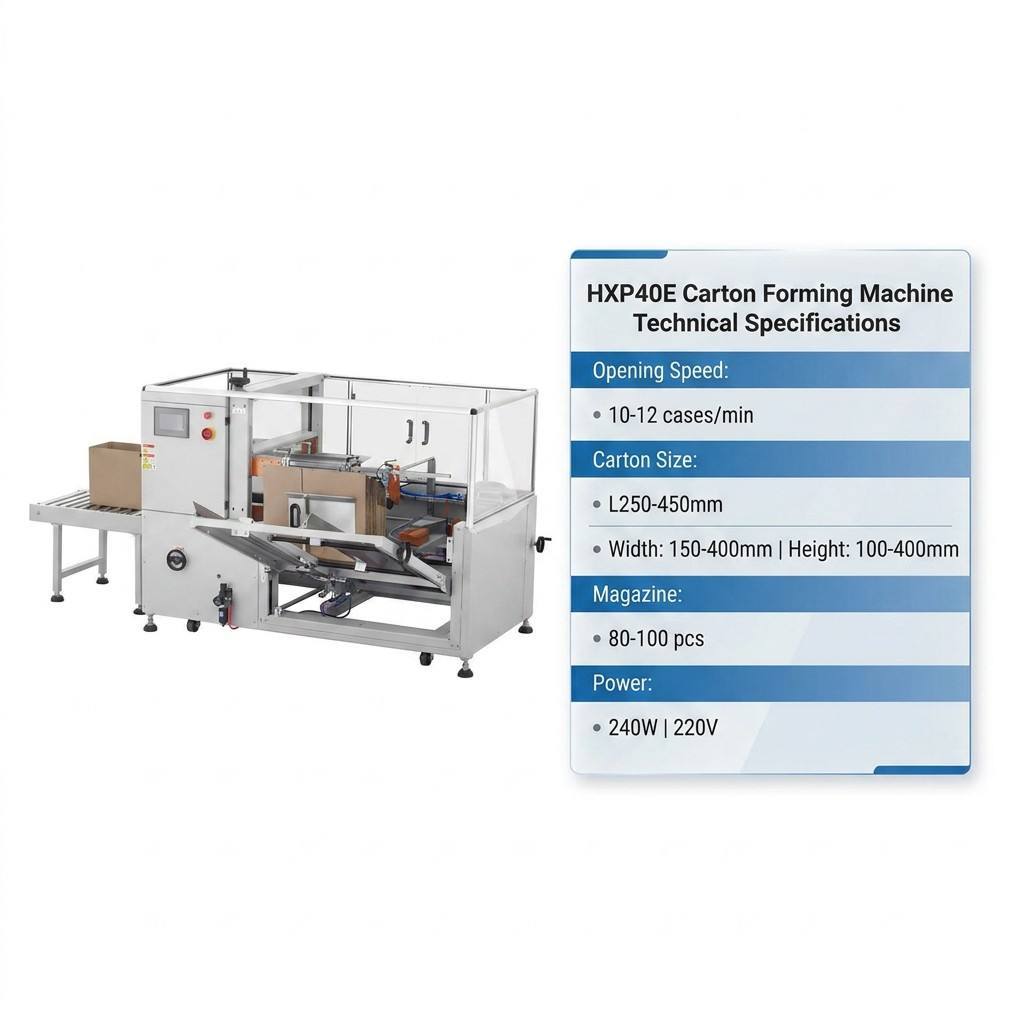

Specifications
Supply Ability :
10 sets/month
Air Compressing :
6-8kg/cm³
Model Number :
HXP40E
Carton Size :
L(250-450)×W(150-400)×H(100-400)mm
MOQ :
1 set
Delivery Time :
30 work days
Adhesive Tape Width :
55-72mm (Choose one type)
Payment Terms :
L/C,D/A,D/P,T/T
Air Consumption :
450NL/min
Price :
USD 11000 per set

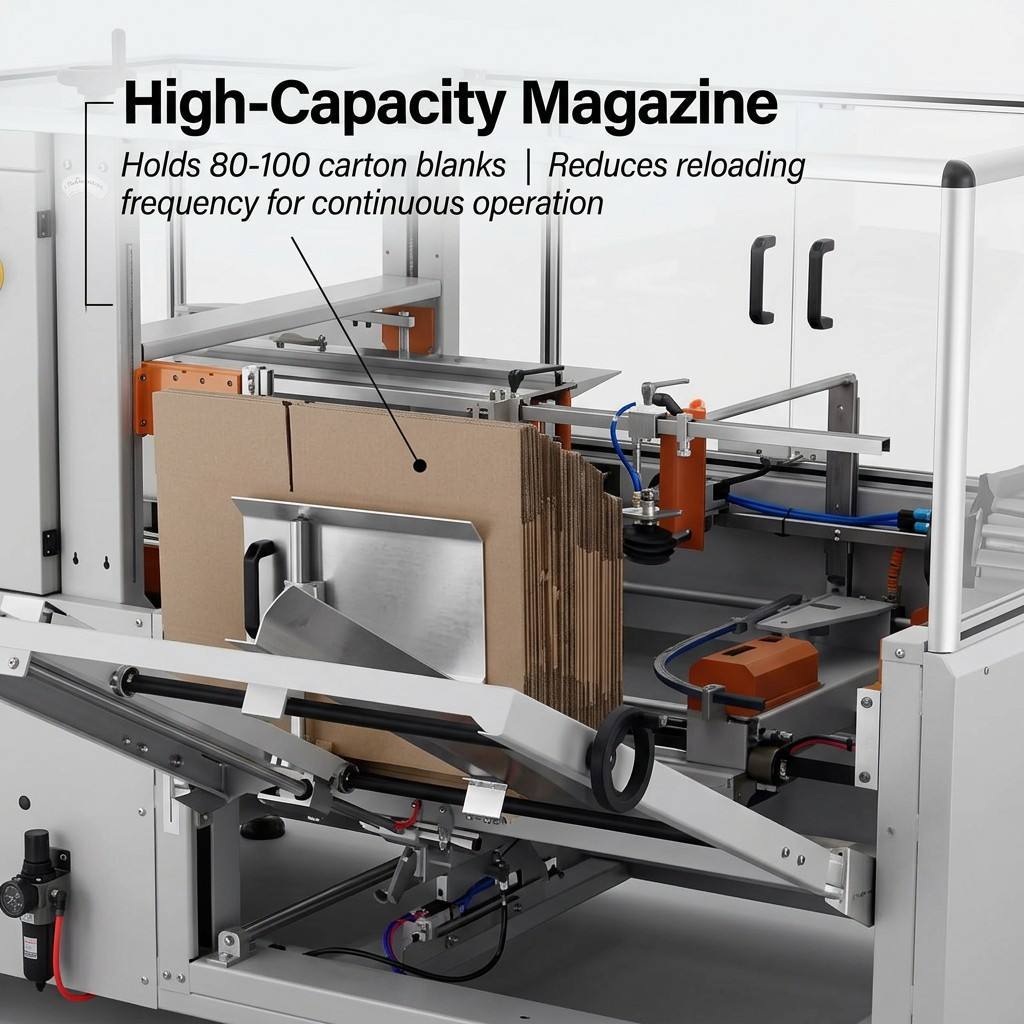

Carton Storage Quantity :
80-100pcs (800-1000mm)
Certification :
CE
Power Supply :
220V 50/60Hz 1 Phase
Brand Name :
HXCP
Carton Opening Speed :
Up to 10-12 cases/min
Place of Origin :
China
Power :
240W
Packaging Details :
Stretch Film with Wooden Case
Description
HXP40E Continuous Carton Processing Machine With Auto Feeding Forming And Discharging Function
For Auto Box Unfolding, Folding and Tape Sealing Work
HXP40E Continuous Carton Processing Machine With Auto Feeding Forming And Discharging Function
HXP40E Continuous Carton Processing Machine With Auto Feeding Forming And Discharging Function
HXP40E Continuous Carton Processing Machine With Auto Feeding Forming And Discharging Function
HXP40E Continuous Carton Processing Machine With Auto Feeding Forming And Discharging Function
Product Introduction

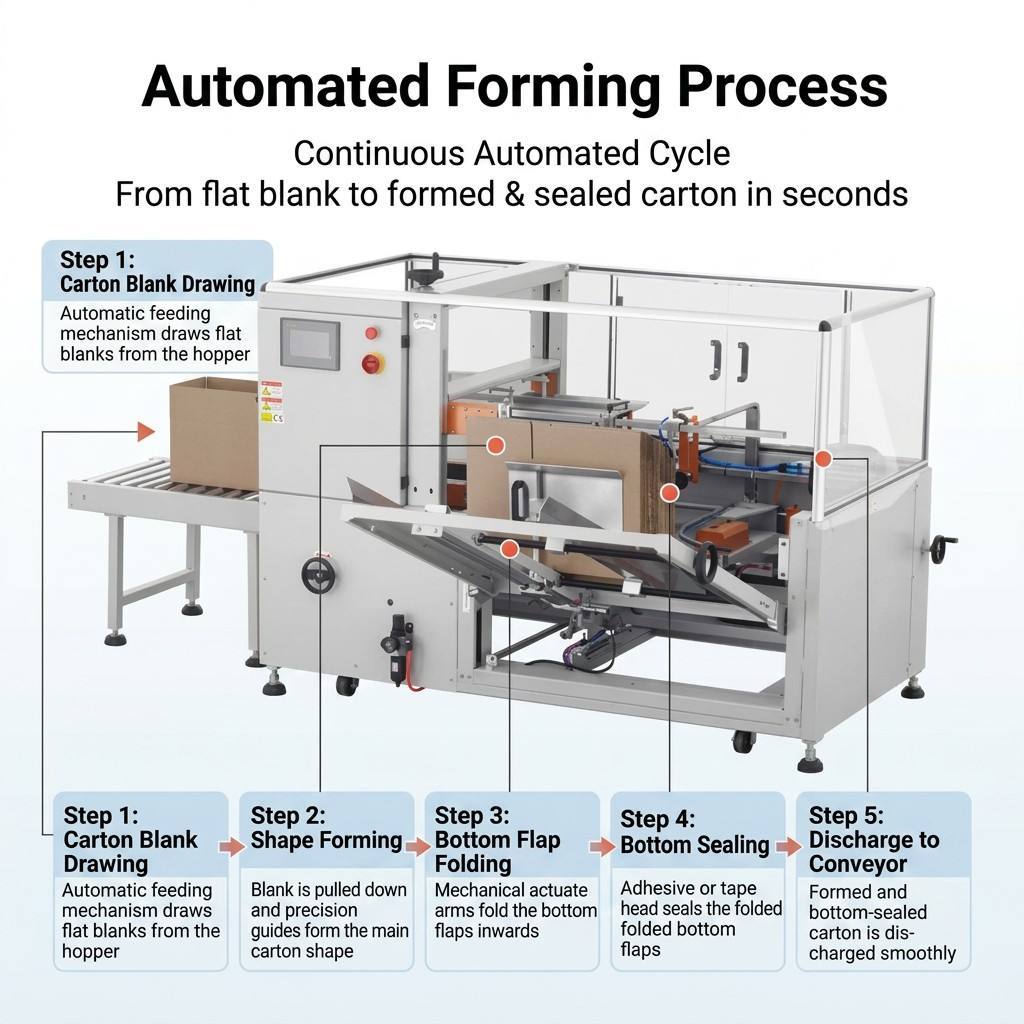

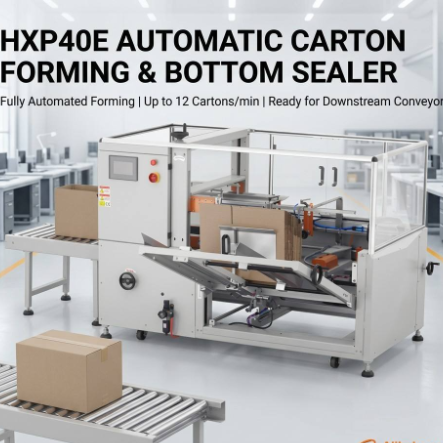

The HXP40E Automatic Carton Forming Bottom Sealer is a fully automated packaging equipment designed to simplify and standardize carton pre-packaging procedures. It realizes a complete unmanned working cycle: automatically picking flat carton blanks from the material magazine, shaping flat sheets into standard carton structures, sequentially folding bottom flaps in place, and applying adhesive tape for firm bottom sealing.

After finishing forming and sealing, the completed empty cartons are automatically discharged to the downstream conveyor for subsequent packaging procedures. With continuous cyclic operation, the machine achieves a maximum working speed of 12 cartons per minute, delivering stable and high-efficiency carton forming and bottom sealing performance for automated packaging lines.

Application Scenarios
  • Printing and packaging factories: automatic forming and bottom sealing of product packaging cartons
  • E-commerce logistics warehouses: continuous empty carton preparation for product packaging and shipment
  • Industrial automated packaging lines: front-end carton unfolding and shaping supporting equipment
  • Consumer goods manufacturing plants: batch carton forming processing for finished product packaging
  • Large-scale packaging workshops requiring standardized and high-speed carton pre-forming work
Core Advantages

Different from inefficient manual carton arrangement and sealing, the HXP40E realizes full-process automation for carton bottom packaging. It follows a standardized mechanical procedure to fold bottom flaps in sequence and apply tape evenly, avoiding irregular folding and uneven sealing caused by manual operation. The automatic discharging design seamlessly connects with downstream conveyor systems, forming an uninterrupted automated packaging workflow. Stable cyclic operation guarantees long-hour high-speed production capacity, greatly reducing manual labor investment.
