HXM13 Servo Driven Kraft Paper Wrapping Machine with 10 Packs Per Minute Max Speed
HXM13 Servo Driven Kraft Paper Wrapping Machine with 10 Packs Per Minute Max Speed
HXM13 Servo Driven Kraft Paper Wrapping Machine with 10 Packs Per Minute Max Speed
HXM13 Servo Driven Kraft Paper Wrapping Machine with 10 Packs Per Minute Max Speed
HXM13 Servo Driven Kraft Paper Wrapping Machine with 10 Packs Per Minute Max Speed
HXM13 Servo Driven Kraft Paper Wrapping Machine with 10 Packs Per Minute Max Speed
HXM13 Servo Driven Kraft Paper Wrapping Machine with 10 Packs Per Minute Max Speed
HXM13 Servo Driven Kraft Paper Wrapping Machine with 10 Packs Per Minute Max Speed
Specifications
Supply Ability :
10 sets/month
Maximum Roll Outside Diameter :
500 mm
Model Number :
HXM13
Pack Length :
180 – 360 mm
Price :
USD 60000 per set
Kraft Paper Thickness :
60 – 120 gsm
Certification :
CE
Pack Width :
140 – 256 mm
MOQ :
1 set
Delivery Time :
30 work days
Maximum Pack Weight :
7.5 kg
Payment Terms :
L/C,D/A,D/P,T/T
Minimum Roll Inside Diameter :
75 mm
Brand Name :
HXCP
Maximum Speed :
10 packs/min
Place of Origin :
China
Pack Height :
80 – 270 mm
Packaging Details :
Stretch Film with Wooden Case
Description
HXM13 Servo Driven Kraft Paper Wrapping Machine

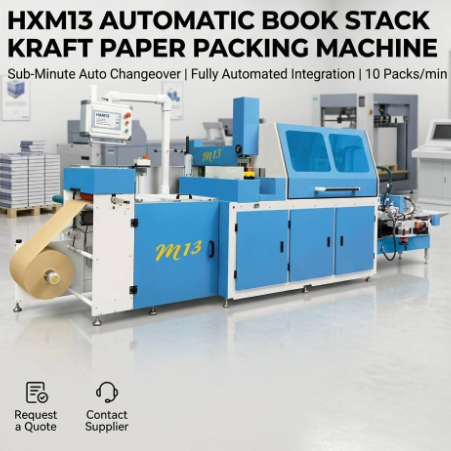

The HXM13 Automatic Book Stack Packing Machine delivers high-performance packaging for 64K to 16K books with integrated packaging procedures and a maximum speed of 10 packs per minute.
HXM13 Servo Driven Kraft Paper Wrapping Machine with 10 Packs Per Minute Max Speed HXM13 Servo Driven Kraft Paper Wrapping Machine with 10 Packs Per Minute Max Speed HXM13 Servo Driven Kraft Paper Wrapping Machine with 10 Packs Per Minute Max Speed HXM13 Servo Driven Kraft Paper Wrapping Machine with 10 Packs Per Minute Max Speed
Product Overview

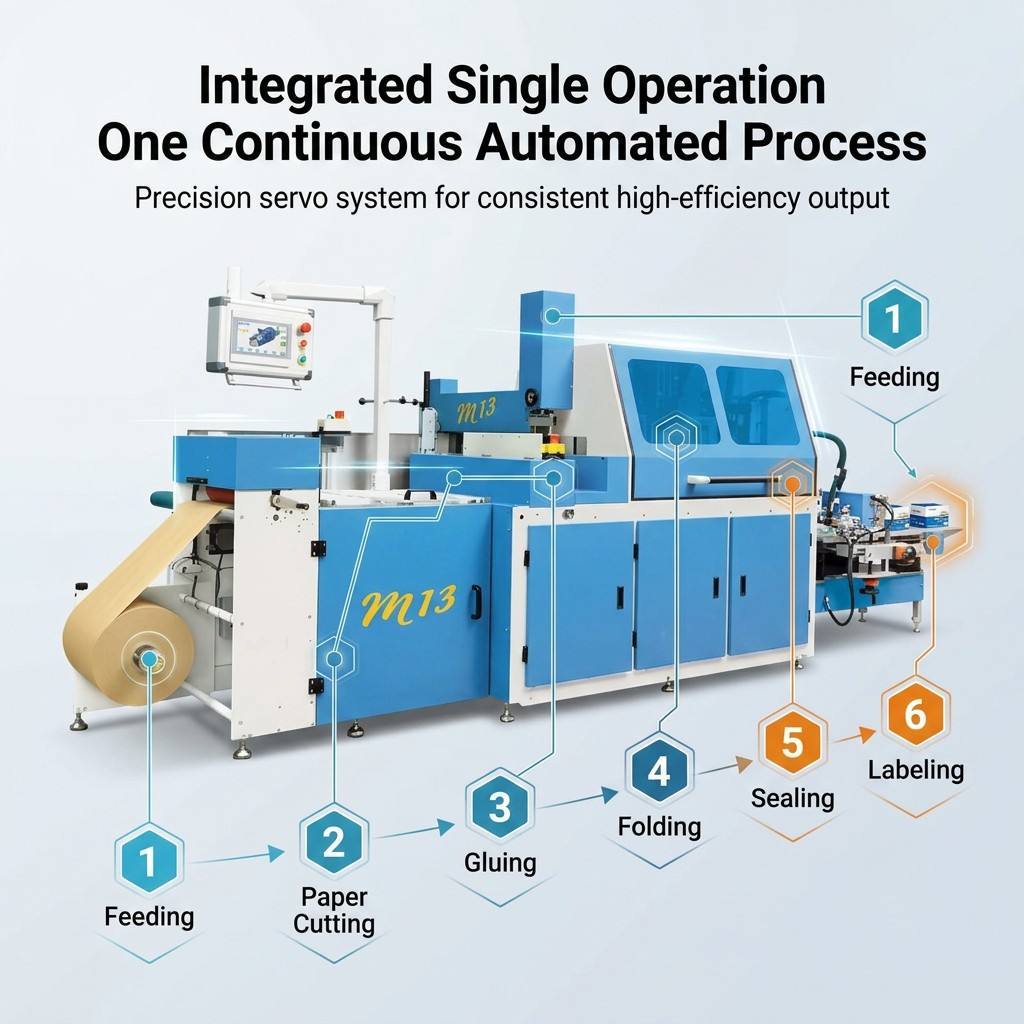

The HXM13 Automatic Book Stack Kraft Paper Packing Machine is professional automated post-press packaging equipment for standard-sized book stacks. It integrates the complete packaging workflow including feeding, kraft paper cutting, gluing, folding, sealing, and labeling into one continuous automatic operation. Equipped with precision servo-driven components and advanced industrial control systems, the equipment maintains stable operation and consistent packaging quality while significantly reducing labor costs.
Application Scenarios
  • Printing and binding factories: automatic kraft paper packaging for 64K-16K finished books, textbooks, and notebooks
  • Publishing houses: standardized finished book stacking and packaging before warehousing and transportation
  • Large-scale bindery production lines requiring continuous and high-consistency packaging work
  • Stationery manufacturing plants for batch packaging of various standard-size book products
  • Printing enterprises with frequent order specification replacement and flexible production demands
Core Advantages
Unlike traditional manual and semi-automatic packaging methods with unstable quality, the HXM13 achieves fully standardized book stack wrapping. The integrated mechanical design eliminates intermediate manual handling and reduces packaging errors. High-precision servo control guarantees accurate paper cutting, gluing, and folding during extended operation. The system significantly lowers enterprise labor costs, and the ultra-fast automatic specification switching efficiently adapts to diversified and frequently changed book packaging orders.

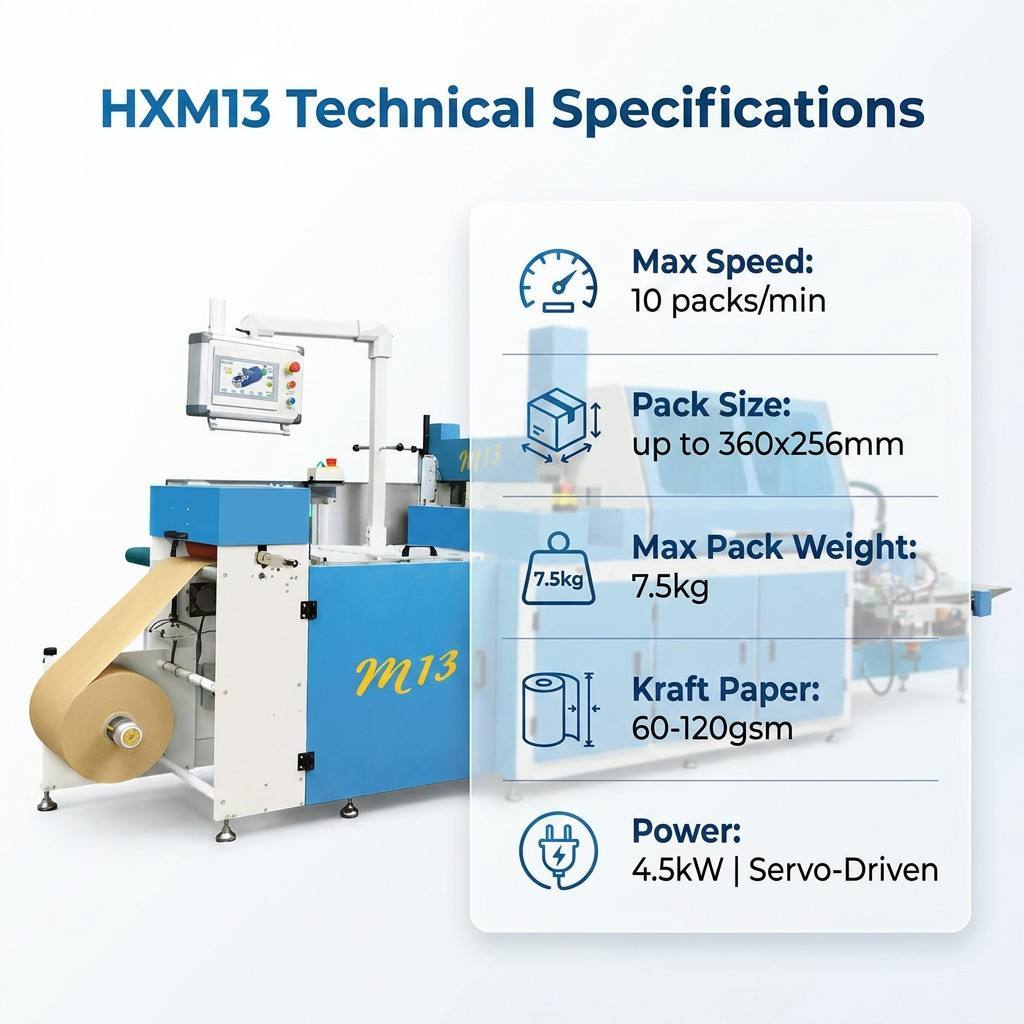

Technical Specifications
Book Size Compatibility 64K to 16K
Maximum Speed 10 packs per minute

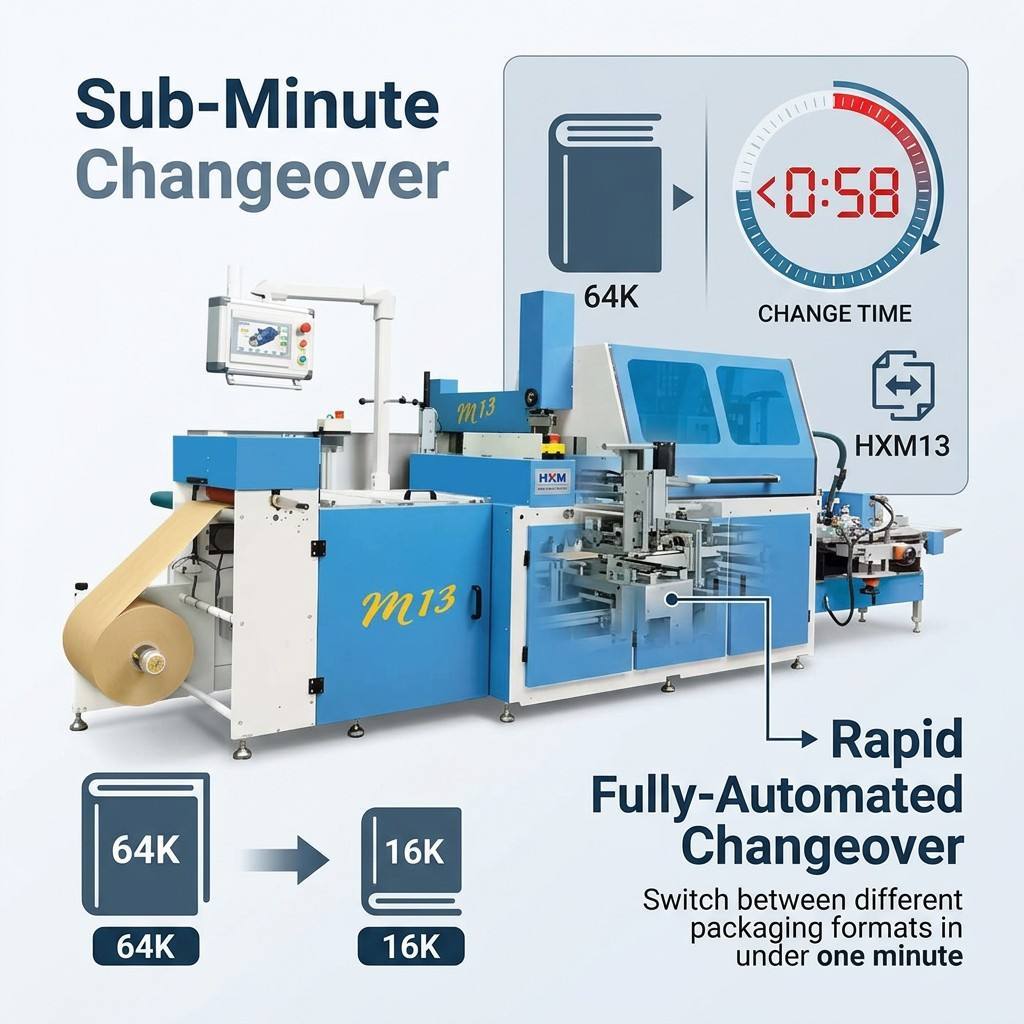

Format Changeover Time Within 1 minute
Packaging Process Feeding, kraft paper cutting, gluing, folding, sealing, labeling
Drive System Precision servo-driven components
Control System Advanced industrial control systems
