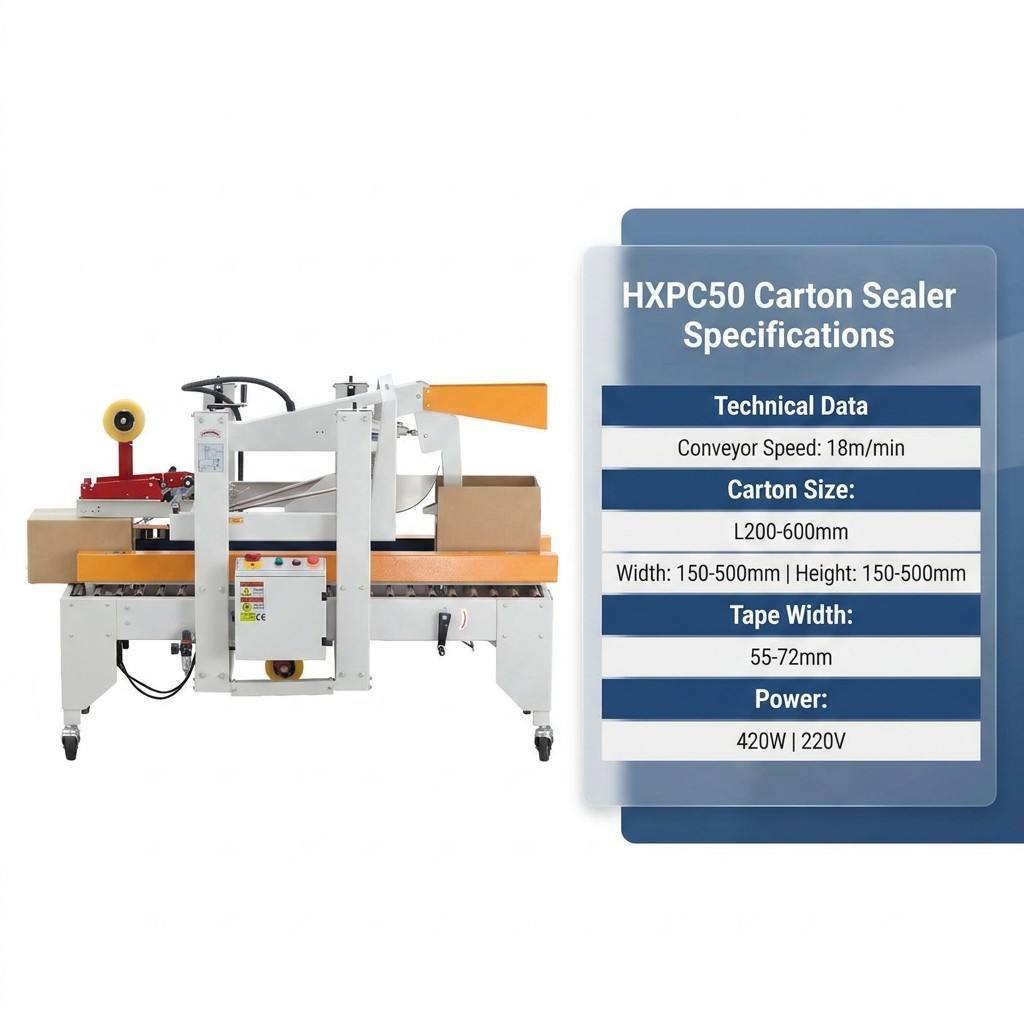

Specifications
Table Height :
600+150mm
Supply Ability :
10 sets/month
Carton Size :
L(200-600)×W(150-500)×H(150-500)mm
Model Number :
HXPC50
Power Supply :
220V 50/60Hz 1Phase
Certification :
CE
Adhesive Tape Width :
55-72mm
MOQ :
1 set
Delivery Time :
30 work days
Air Compressing :
0.6Mpa
Payment Terms :
L/C,D/A,D/P,T/T
Air Consumption :
50NL/min
Price :
USD 11000 per set
Conveyor Speed :
18m/min
Brand Name :
HXCP
Power :
420W
Place of Origin :
China
Packaging Details :
Stretch Film with Wooden Case
Description
HXPC50 Industrial Box Sealer Automating Flap Folding Tape Sealing and Discharging
HXPC50 Automatic Carton Sealing Machine With Simultaneous Top and Bottom Tape Application
HXPC50 Industrial Box Sealer Automating Flap Folding Tape Sealing and Discharging HXPC50 Industrial Box Sealer Automating Flap Folding Tape Sealing and Discharging HXPC50 Industrial Box Sealer Automating Flap Folding Tape Sealing and Discharging HXPC50 Industrial Box Sealer Automating Flap Folding Tape Sealing and Discharging
Product Overview

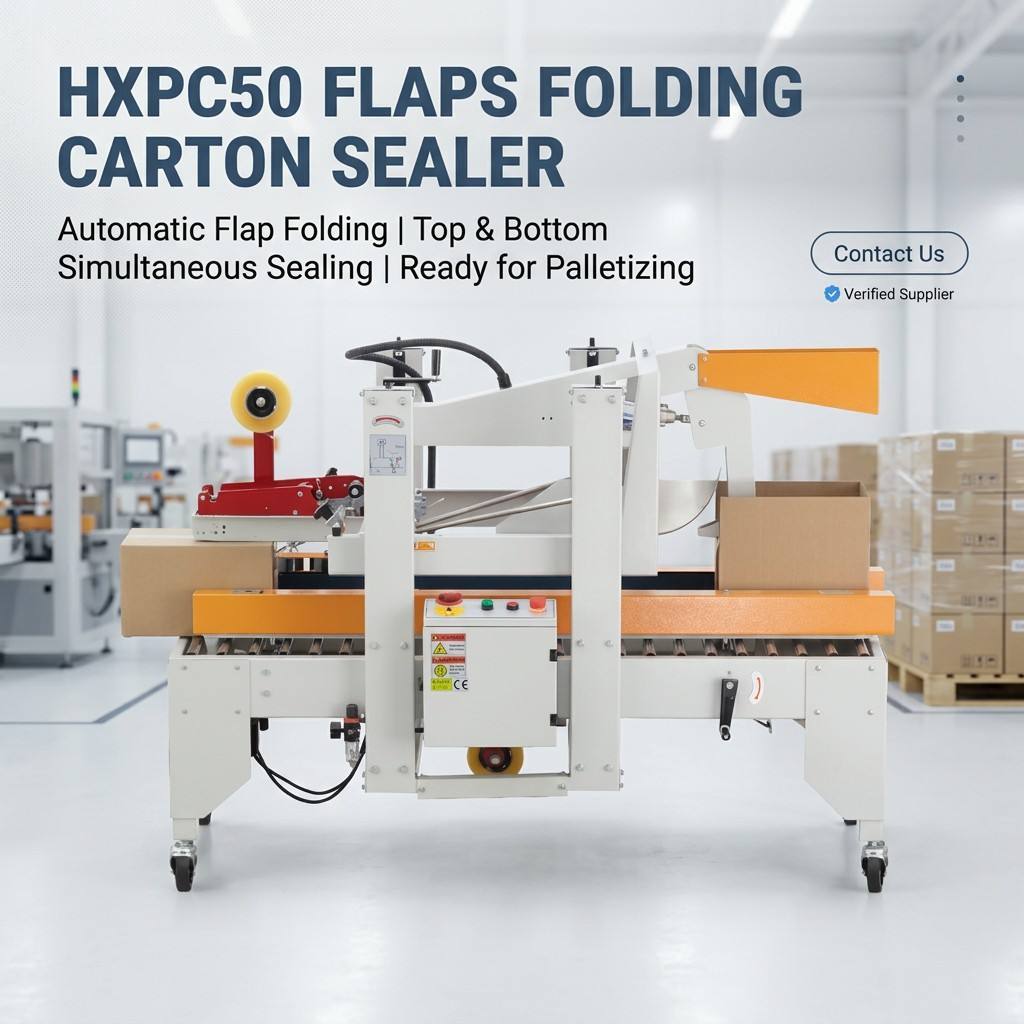

The HXPC50 Double Column Flaps Folding Carton Sealer is professional automatic end-packaging equipment dedicated to flap folding and tape sealing of finished cartons. Open-top cartons are conveyed steadily into the machine for continuous automatic processing.

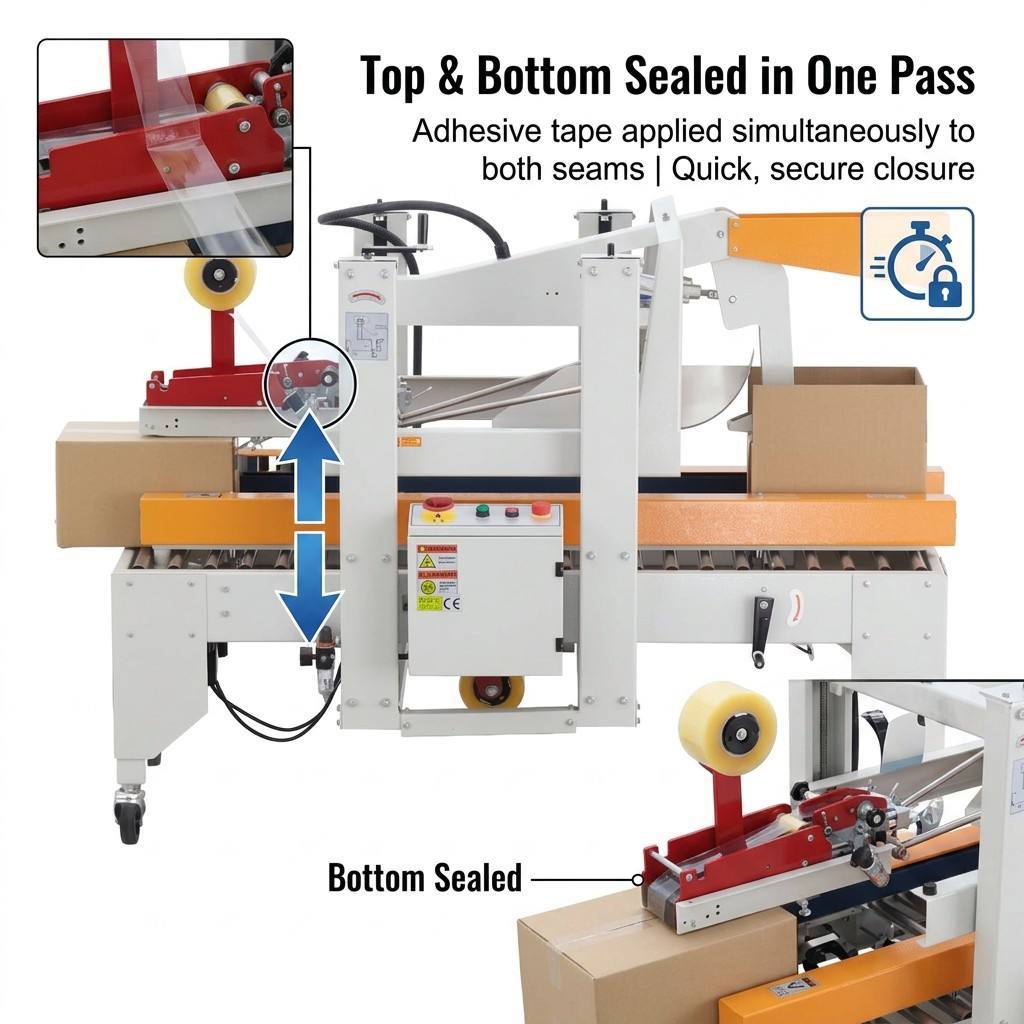

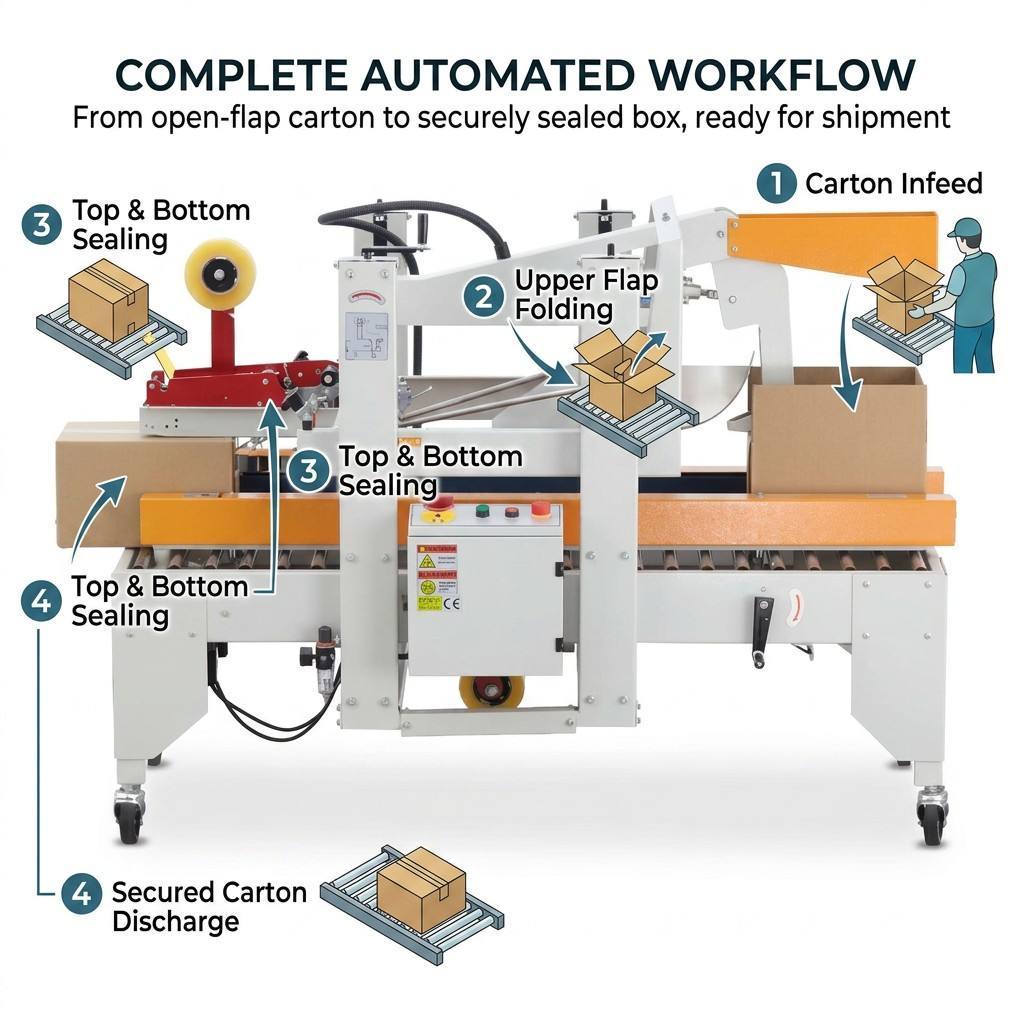

The equipment first folds the carton's upper flaps downward in place, then delivers the carton to the sealing unit, where adhesive tape is applied simultaneously to both top and bottom seams for full sealing. Completely sealed and finished cartons are automatically discharged for subsequent palletizing or shipment procedures.

Featuring a stable conveying speed of 18 meters per minute, the machine provides high-speed, consistent and reliable carton sealing for industrial packaging lines.

Application Scenarios
  • Factory automated packaging lines: continuous flap folding and full sealing of finished cartons
  • E-commerce and logistics warehouses: batch carton sealing for daily order shipment
  • Printing, consumer goods and electronic product manufacturing packaging workshops
  • Industrial production lines requiring standardized carton sealing before palletizing
  • Large-scale distribution centers with high-speed continuous packaging and shipping demands
Core Advantages
  • Robust double-column structure delivers stable mechanical performance during long-hour continuous packaging work
  • Completes full-automatic upper flap folding and synchronous top-and-bottom tape sealing in one pass
  • Eliminates manual flap arranging and single-side sealing operations
  • Steady conveyor speed of 18m/min ensures high line throughput for industrial packaging demands
  • Standardizes carton folding and sealing effects, avoiding uneven tape application and loose flaps
