Forward Acting Rupture Disc
Forward Acting Rupture Disc
Forward Acting Rupture Disc
Forward Acting Rupture Disc
Forward Acting Rupture Disc
Forward Acting Rupture Disc
Forward Acting Rupture Disc
Forward Acting Rupture Disc
Specifications
Bursting disc type :
LF (without support holder), LFT (with support holder)
Packaging Details :
Wooden box
Suitable media :
gaseous and liquid media
Size range :
DN10 ~ DN1200 mm
Delivery Time :
20-30 days
Place of Origin :
china
Maximum operating pressure :
80% of minimum bursting pressure
MOQ :
1
Price :
1000
Temperature range :
dependent on sealing membrane selection
Brand Name :
Fast
Model Number :
Contact the manufacturer
Bursting pressure :
medium and low
Supply Ability :
10000
Description
Forward Acting Rupture Disc
Product Description

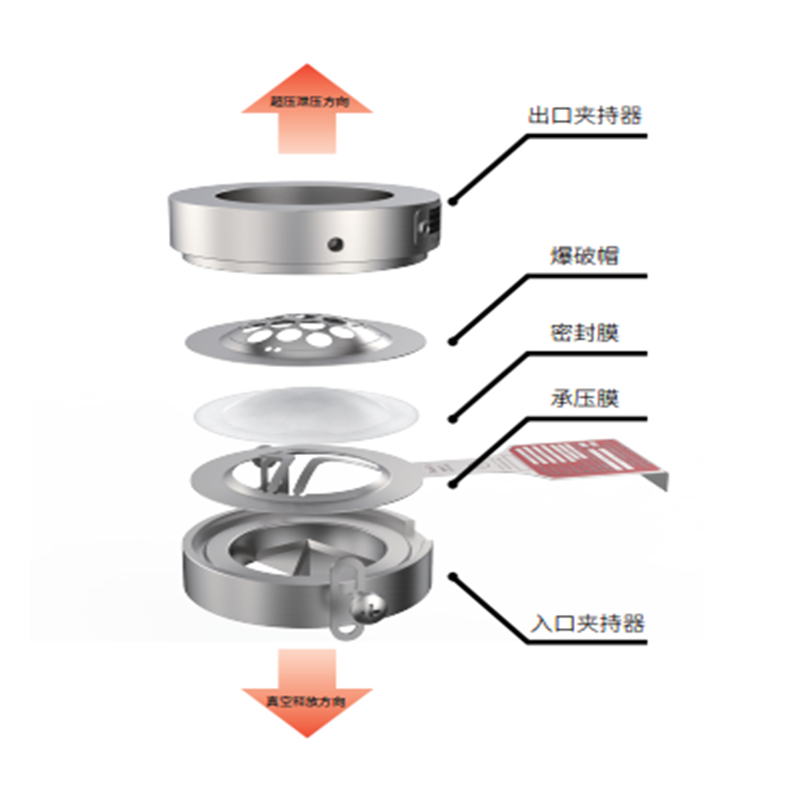

The composite bursting disc consists of a strength membrane, sealing membrane, and other components. A support holder is added for service conditions requiring back pressure resistance. Holes and slits (radial or circumferential) that weaken material strength are arranged on the strength membrane and support holder. Under overpressure conditions, tensile failure occurs at the cross-section with the minimum hole spacing.

Technical Characteristics
  • Suitable for gaseous and liquid media as well as working conditions with medium and low bursting pressure
  • The applicable temperature range must be considered when selecting the sealing membrane
  • The maximum operating pressure can reach 80% of the minimum bursting pressure

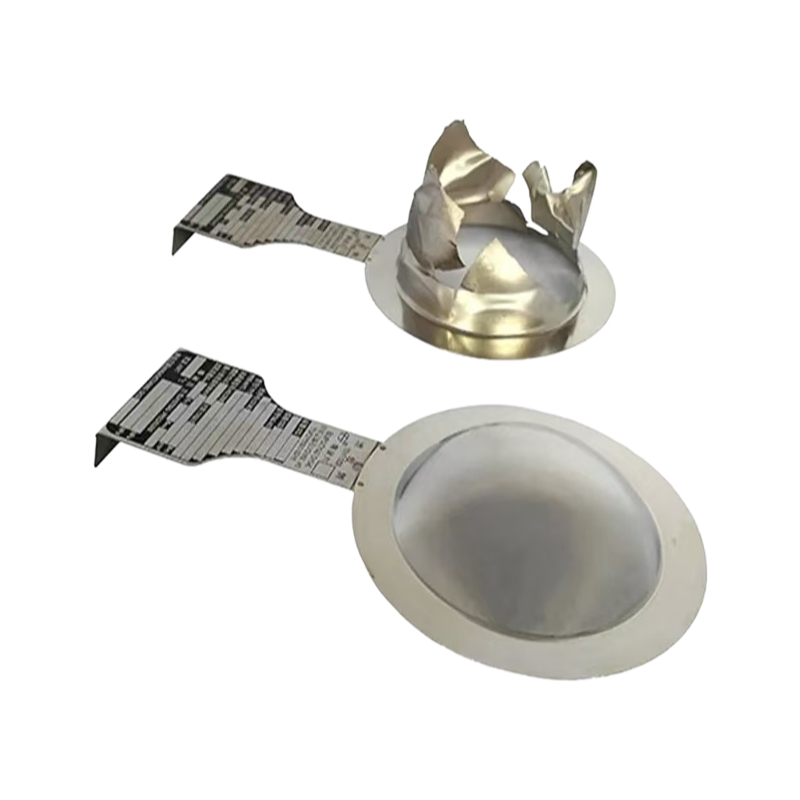

  • Fragments may be generated upon rupture; series installation with safety valves is not recommended

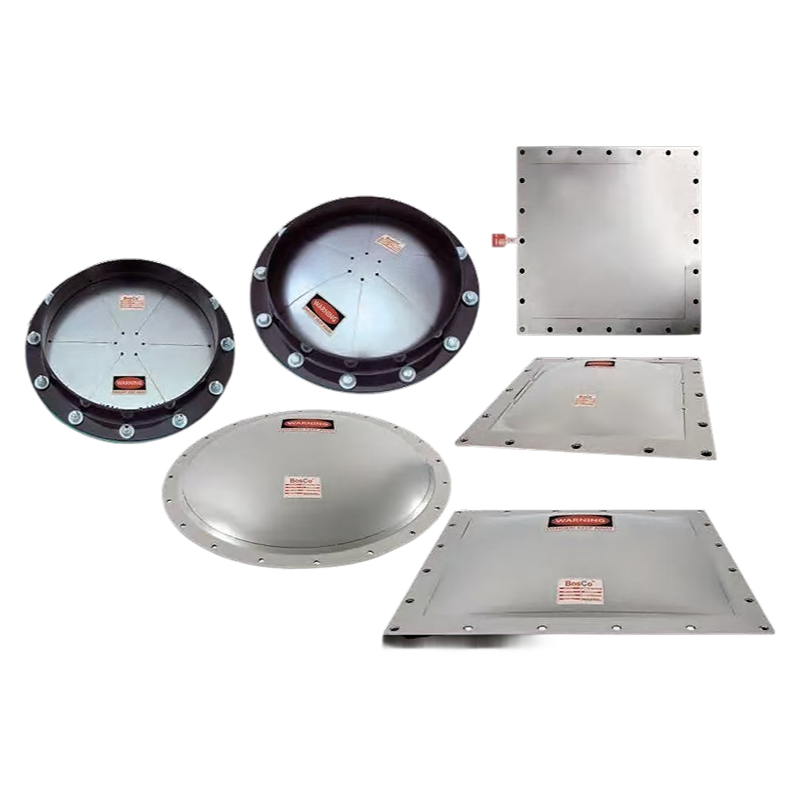

  • Large-diameter LF type bursting discs can achieve extremely low bursting pressure, suitable for dust venting and explosion suppression applications
  • Model code LF for versions without support holder; model code LFT for versions fitted with support holder
  • The product nameplate bears TS or CE marking
Size Range: DN10 ~ DN1200 mm
