Series Arrangement of Rupture Disc and Safety Valve
Series Arrangement of Rupture Disc and Safety Valve
Series Arrangement of Rupture Disc and Safety Valve
Series Arrangement of Rupture Disc and Safety Valve
Specifications
Leakage performance :
Zero leakage
On-site inspection :
Supported
Place of Origin :
china
Packaging Details :
Wooden box
Price :
1000
Delivery Time :
20-30 days
Pressure indication :
Required
Model Number :
Contact the manufacturer
Component integration :
Rupture disk and safety valve
Supply Ability :
10000
Installation type :
Series arrangement
Brand Name :
Fast
Leakage blocking :
Rupture disk blocks safety valve leakage
MOQ :
1
Description

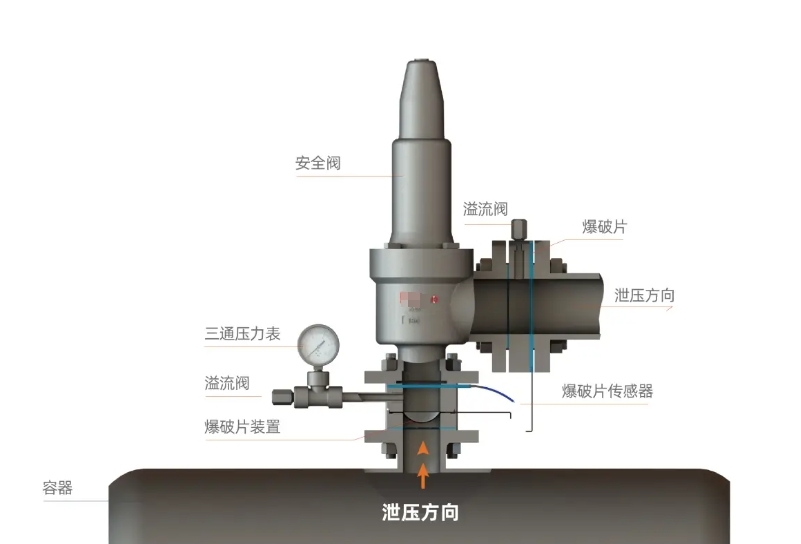

Series Arrangement of Rupture Disc and Safety Valve

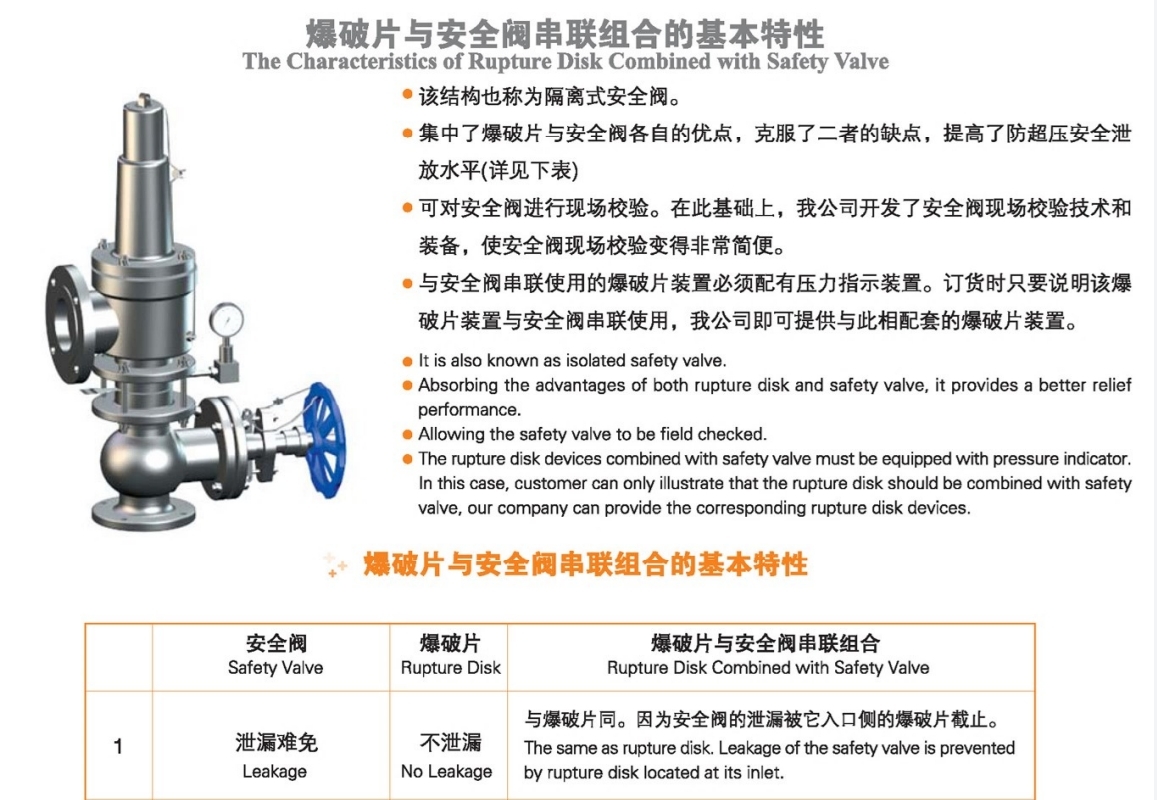

Key Characteristics of Rupture Disk Installed in Series with Safety Valve
  • This assembly is also referred to as an isolated safety valve
  • It integrates the respective advantages of rupture disk and safety valve while overcoming their drawbacks
  • Improves overpressure protection and safety relief performance
  • On-site inspection of the safety valve can be carried out
  • Our company has developed special technology and equipment for on-site safety valve calibration
  • Simplifies on-site inspection procedures significantly
  • Rupture disk devices used in series with safety valves shall be fitted with pressure indicating devices

When placing orders, simply specify that the rupture disk device will be used in series with a safety valve, and our company can supply the matched rupture disk assembly.

Performance Comparison
Safety Valve Rupture Disk Rupture Disk Installed in Series with Safety Valve
Prone to leakage Zero leakage Same as rupture disk. Leakage from the safety valve is blocked by the rupture disk fitted at its inlet.
