Specifications
Brand Name :
Charmhigh
Model Number :
250DS
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
$5460
Payment Terms :
T/T
Supply Ability :
100 Per month
Delivery Time :
4-8 days
Packaging Details :
Plywood box
Dimension :
2600*1200*1600mm
Control way :
touch screen
PCB deliver speed :
0-1.8m/min
Heating way :
hot air
Power :
3 phase 5 lines, 380v 50hz
Air source :
4-7KG/CM2 12.5L/Min
Net weight :
800kg
Wave soldering number :
2
PCB width :
max 250mm
Description

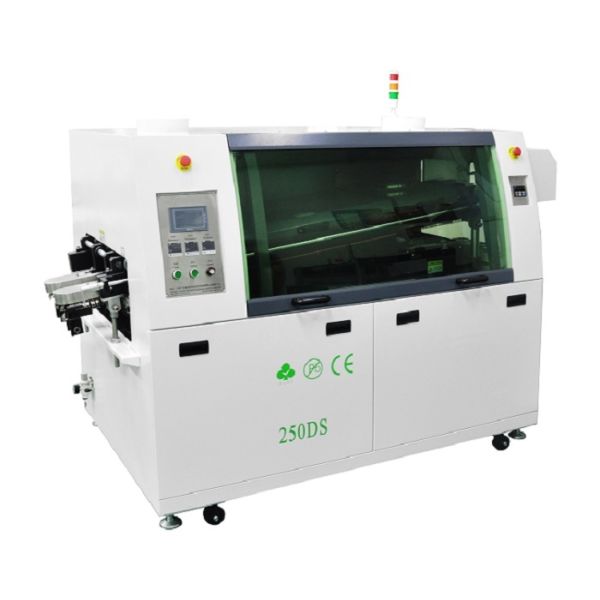

Small Lead-free Wave Soldering Machine 250DS For PCB DIP Production Line
Full Automatic Lead-free Wave Soldering Machine
Advanced 250DS wave soldering system designed for PCB DIP production lines, featuring lead-free operation and comprehensive automation.
Key Features & Benefits
  • Suitable for SMD and THT component soldering with streamlined, aesthetically pleasing design
  • Modular preheating zone and filtration system with direct pull-out design for easy maintenance
  • Two-stage preheating zone ensures stable heating curve and prevents PCB deformation
  • Intelligent automatic tracking spray system adjusts to PCB width automatically
  • Programmable logic controller (PLC) with internal speed tracking program
  • Automatic flux nozzle cleaning device eliminates manual cleaning requirements
  • Special spiral furnace chamber design prevents floating black powder generation
  • Unique SINOEVER guide rail design ensures complete and smooth PCB soldering
  • Variable frequency drive technology for precise wave peak height control
  • Energy storage nickel-chromium infrared heating tubes for even heating and long service life
  • Comprehensive safety features including over-temperature and audio-visual alarms
  • Closed-loop variable speed control system for stable transport operation
  • Spray exhaust filter plate reduces emission pollution
  • Precision titanium alloy spring claws for reliable PCB transport
  • PLC and touch screen control system for simple operation and high reliability
Technical Specifications
Parameter Specification
PCB Board Width Max 250mm
PCB Conveyor Height 750±20mm
PCB Conveyor Speed 0-1.8m/min
Preheating Length 800mm
Preheating Zones 2
Preheating Temperatures Room temperature ~ 350℃
Suitable Solder Type Leaded/Lead-free solder paste
Preheating Capacity 5KW
Wave Solder Pot 8KW
Crest Value of Solder Waves Max 10mm (Impact depth up to 30mm)
Solder Volume 180KG
Solder Temperature Room temperature ~ 320℃
Conveyor Angle 3-7 degrees
Temperature Control PLC + PID
Flux Storage Tank Max 5.2L
Power Requirements 3P 5wires 380V/220V option
Power for Heating Up 12KW
Power for Operation MAX 5KW
Air Supply 4-7kg/cm² 12.5L/min
Weight Max 600kg
Dimensions L2400 × W1150 × H1500
Product Images
Lead-free Wave Soldering Machine 250mm PCB Width DIP Production Line Lead-free Wave Soldering Machine 250mm PCB Width DIP Production Line
Lead-free Wave Soldering Machine 250mm PCB Width DIP Production Line Lead-free Wave Soldering Machine 250mm PCB Width DIP Production Line
Loader & Unloader Conveyor System
Lead-free Wave Soldering Machine 250mm PCB Width DIP Production Line Lead-free Wave Soldering Machine 250mm PCB Width DIP Production Line
Contact Information
Contact: Kimi Liu
Company: Charmhigh Technology Limited
Mobile/WhatsApp: +8613510675756
Email: kimi@charmhigh-tech.com
YouTube Channel: Kimi Liu Charmhigh Videos
For more information, please contact us by email. We will respond promptly.
Service & Warranty
1-year warranty from purchase date with lifetime service support
Factory direct supply of spare parts with quality guarantee
Online Q/A and troubleshooting technical support
One-to-one after-sales service
Each machine 100% tested before shipment
